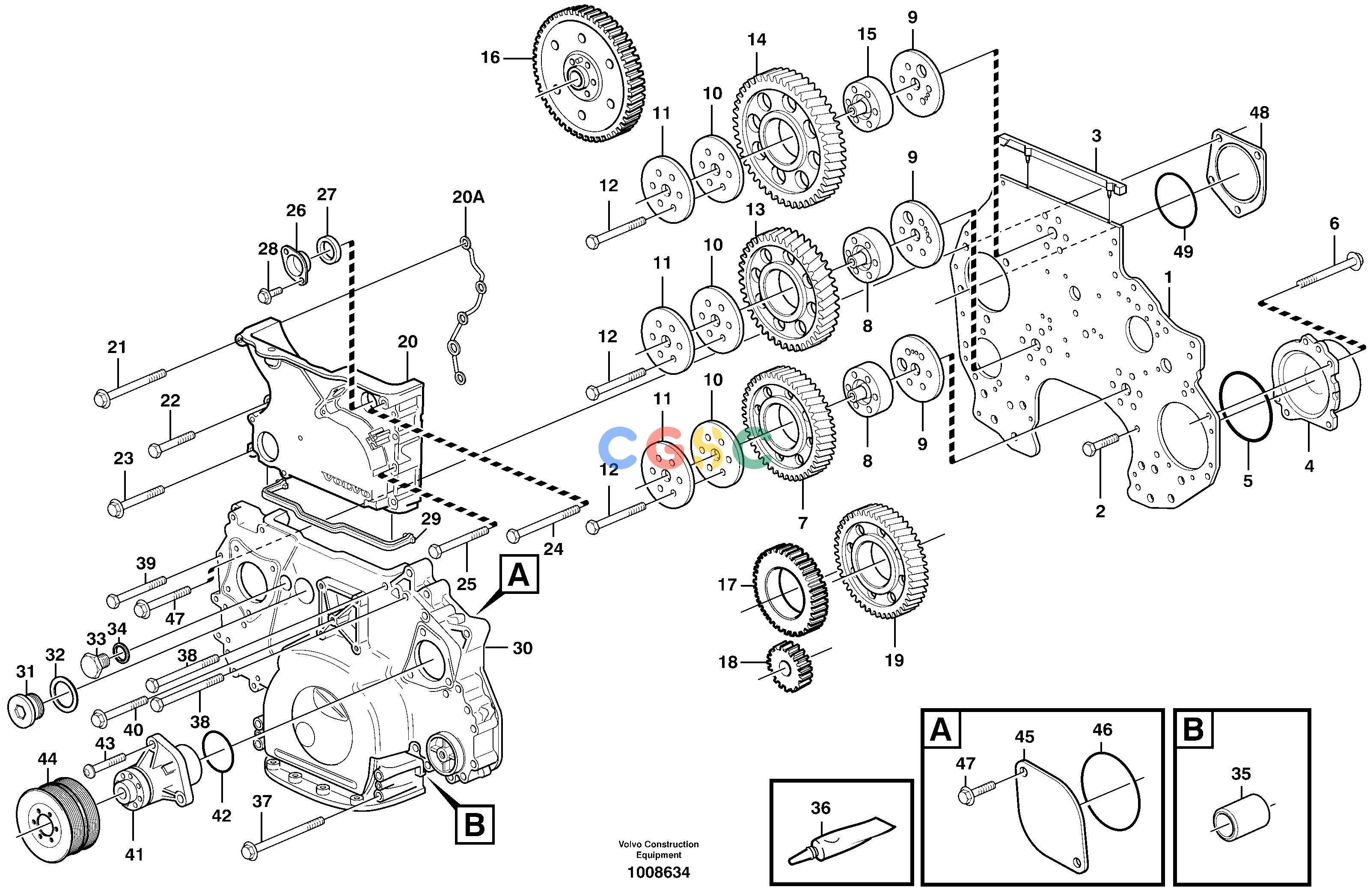

沃尔沃零件查询PL4611 Timing gear casing and gearsNone8279675-NoneNoneNoneENG - 645018Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8170561
|
[1] |
Xmsn Plate
|
|
| 2. |
VOE946470
|
[17] |
Flange screw
|
|
| 3. |
VOE20489341
|
[1] |
Gasket
|
|
| 4. |
VOE11128611
|
[1] |
Bearing housing
|
E PROD
|
| 5. |
VOE13949736
|
[1] |
O-ring
|
E PROD
|
| 6. |
VOE965197
|
[4] |
Flange screw
|
|
| 7. |
VOE8170193
|
[1] |
Idler gear
|
|
| 8. |
VOE8170219
|
[2] |
Hub
|
|
| 9. |
VOE8170220
|
[3] |
Thrust washer
|
|
| 10. |
VOE3184865
|
[3] |
Thrust washer
|
|
| 11. |
VOE3184868
|
[3] |
Bearing shield
|
|
| 12. |
VOE21344754
|
[18] |
Flange screw
|
|
| 13. |
VOE8170195
|
[1] |
Idler gear
|
|
| 14. |
VOE8170197
|
[1] |
Idler gear
|
|
| 15. |
VOE8170199
|
[1] |
Hub
|
|
| 16. |
|
[1] |
Gear
|
|
| 17. |
|
[1] |
Idler gear
|
|
| 18. |
|
[1] |
Gear
|
|
| 19. |
|
[1] |
Gear
|
|
| 20. |
VOE20713791
|
[1] |
Timing gear cover
|
|
| 20A. |
VOE3830184
|
[1] |
Seal
|
|
| 21. |
VOE968553
|
[1] |
Flange screw
|
L = 115 MM
|
| 22. |
VOE13965182
|
[3] |
Screw
|
L = 80 MM
|
| 23. |
VOE13965183
|
[1] |
Flange screw
|
L = 90 MM
|
| 24. |
VOE60113105
|
[1] |
Flange screw
|
L = 100 MM
|
| 25. |
VOE13965223
|
[1] |
Screw
|
L = 75 MM
|
| |
VOE13947790
|
[2] |
Screw
|
L = 80 MM
|
| 26. |
VOE3964803
|
[1] |
Plug
|
|
| 27. |
VOE20555696
|
[1] |
Sealing ring
|
|
| 28. |
VOE946440
|
[2] |
Flange screw
|
|
| 29. |
VOE20714247
|
[1] |
Sealing strip
|
|
| |
VOE21206533
|
[1] |
Timing gear cover
|
|
| 30. |
VOE3835798
|
[1] |
Tmg gear cover
|
|
| 31. |
VOE467367
|
[1] |
Plug
|
|
| 32. |
VOE1556907
|
[1] |
Gasket
|
|
| 33. |
VOE13960632
|
[1] |
Plug
|
|
| 34. |
VOE948884
|
[1] |
Gasket
|
|
| 35. |
VOE1547940
|
[2] |
Pin
|
|
| 36. |
VOE11713514
|
[REQ] |
Sealant
|
|
| |
VOE1161277
|
[REQ] |
Sealant
|
|
| 37. |
VOE973096
|
[4] |
Flange screw
|
L = 130 MM
|
| 38. |
VOE13947790
|
[2] |
Screw
|
L = 80 MM
|
| 39. |
VOE955302
|
[11] |
Hexagon screw
|
L = 60 MM
|
| |
VOE13965181
|
[1] |
Screw
|
L = 70 MM
|
| 40. |
VOE13965183
|
[1] |
Flange screw
|
L = 90 MM
|
| 41. |
|
[1] |
Driving Device
|
|
| 42. |
VOE967344
|
[1] |
O-ring
|
|
| 43. |
VOE13946752
|
[1] |
Screw
|
|
| 44. |
|
[1] |
Pulley
|
|
| 45. |
VOE3828400
|
[1] |
Cover
|
|
| 46. |
VOE13925095
|
[1] |
O-ring
|
|
| 47. |
VOE946441
|
[2] |
Flange screw
|
|
| 48. |
VOE1556208
|
[1] |
Cover
|
|
| 49. |
VOE13948888
|
[1] |
O-ring
|
|
