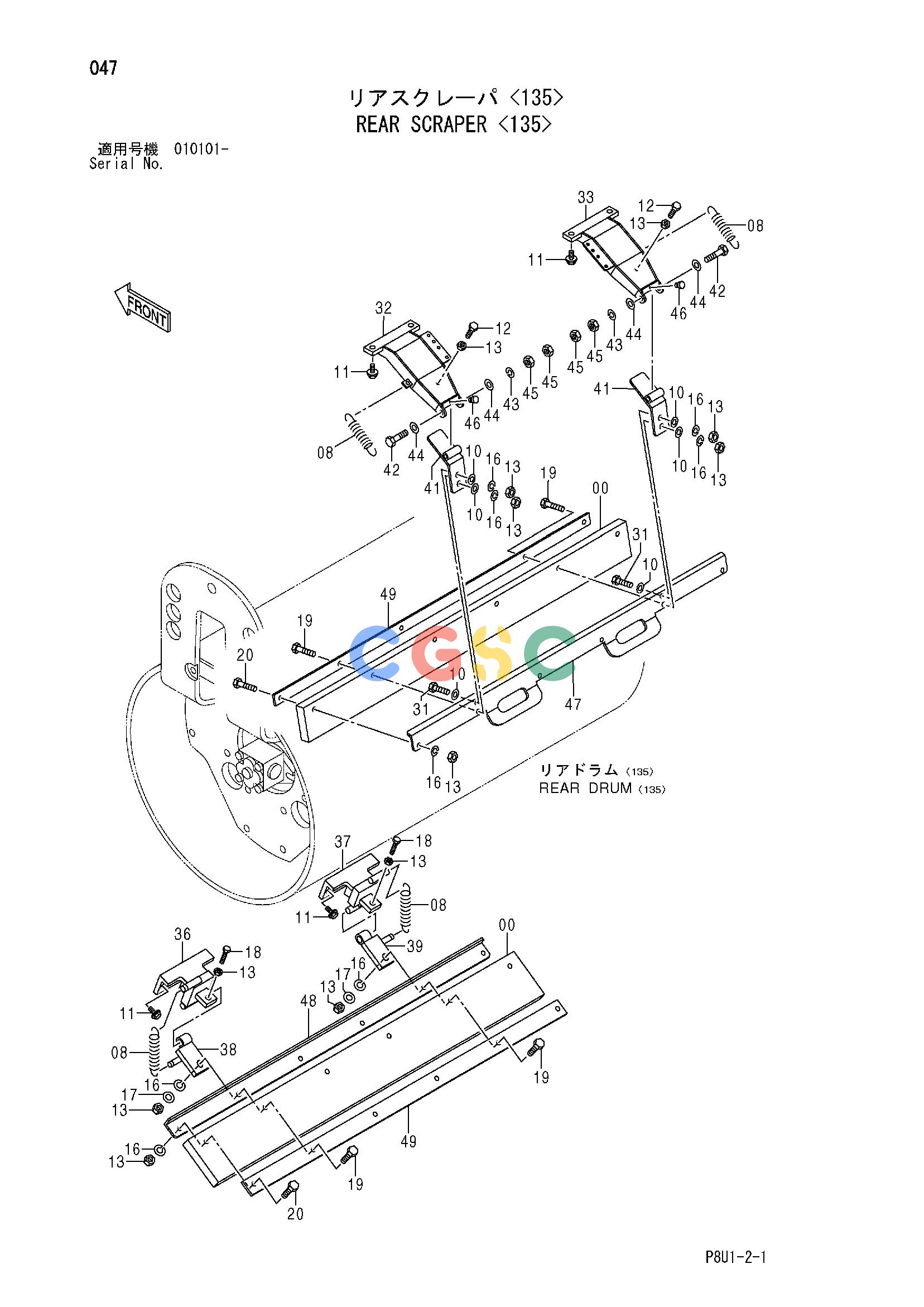

日立零件查询（CC135C）REAR SCRAPER <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
727 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425821 | [2] | BLADE | |
| 08. | 425434 | [4] | SPRING | |
| 10. | 947324 | [6] | WASHER;PLANE | |
| 11. | 500028 | [8] | BOLT;SEMS | |
| 12. | 425843 | [2] | BOLT | |
| 13. | 947855 | [18] | NUT | |
| 16. | 947887 | [14] | WASHER;SPRING | |
| 17. | 446281 | [2] | WASHER | |
| 18. | 424217 | [2] | BOLT | |
| 19. | 947635 | [4] | BOLT | |
| 20. | 947633 | [8] | BOLT | |
| 31. | 947632 | [2] | BOLT | |
| 32. | 425968 | [1] | BRACKET | |
| 33. | 425969 | [1] | BRACKET | |
| 36. | 425931 | [1] | BRACKET | |
| 37. | 425932 | [1] | BRACKET | |
| 38. | 425929 | [1] | BRACKET | |
| 39. | 425930 | [1] | BRACKET | |
| 41. | 425970 | [2] | BRACKET | |
| 42. | 500122 | [2] | BOLT | |
| 43. | 947888 | [2] | WASHER;SPRING | |
| 44. | 947325 | [4] | WASHER;PLANE | |
| 45. | 947856 | [4] | NUT | |
| 46. | 425118 | [2] | RUBBER;CUSHION | |
| 47. | 425971 | [1] | BRACKET | |
| 48. | 425850 | [1] | BRACKET | |
| 49. | 425972 | [2] | PLATE | |
