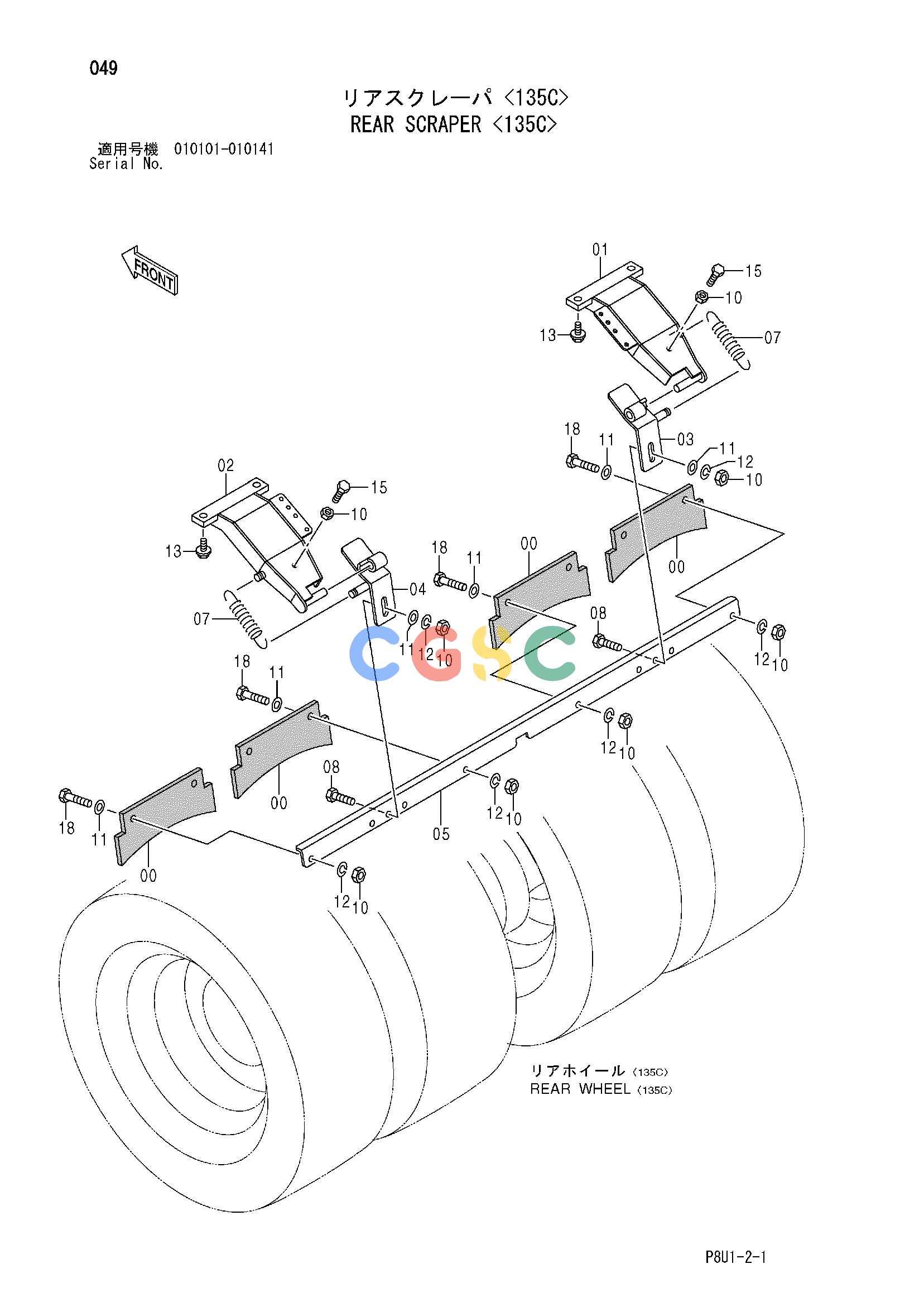

日立零件查询（CC135C）REAR SCRAPER <135C> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
341 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425884 | [4] | BLADE | |
| 01. | 425916 | [1] | BRACKET | T425968 |
| | | | | 425118 |
| | | | | 425970 |
| | | | | 500122 |
| | | | | 947888 |
| | | | | 947325 |
| | | | | 947856 |
| 02. | 425917 | [1] | BRACKET | T425969 |
| | | | | 425118 |
| | | | | 425970 |
| | | | | 500122 |
| | | | | 947888 |
| | | | | 947325 |
| | | | | 947856 |
| 03. | 425924 | [1] | BRACKET | I425970 |
| 04. | 425925 | [1] | BRACKET | I425970 |
| 05. | 425851 | [1] | BRACKET | T425973 |
| | | | | 425669 |
| 07. | 425434 | [2] | SPRING | |
| 08. | 947632 | [2] | BOLT | |
| 10. | 947855 | [12] | NUT | |
| 11. | 446281 | [10] | WASHER | |
| 12. | 947887 | [10] | WASHER;SPRING | |
| 13. | 500029 | [4] | BOLT;SEMS | |
| 15. | 425843 | [2] | BOLT | |
| 18. | 947633 | [8] | BOLT | |
