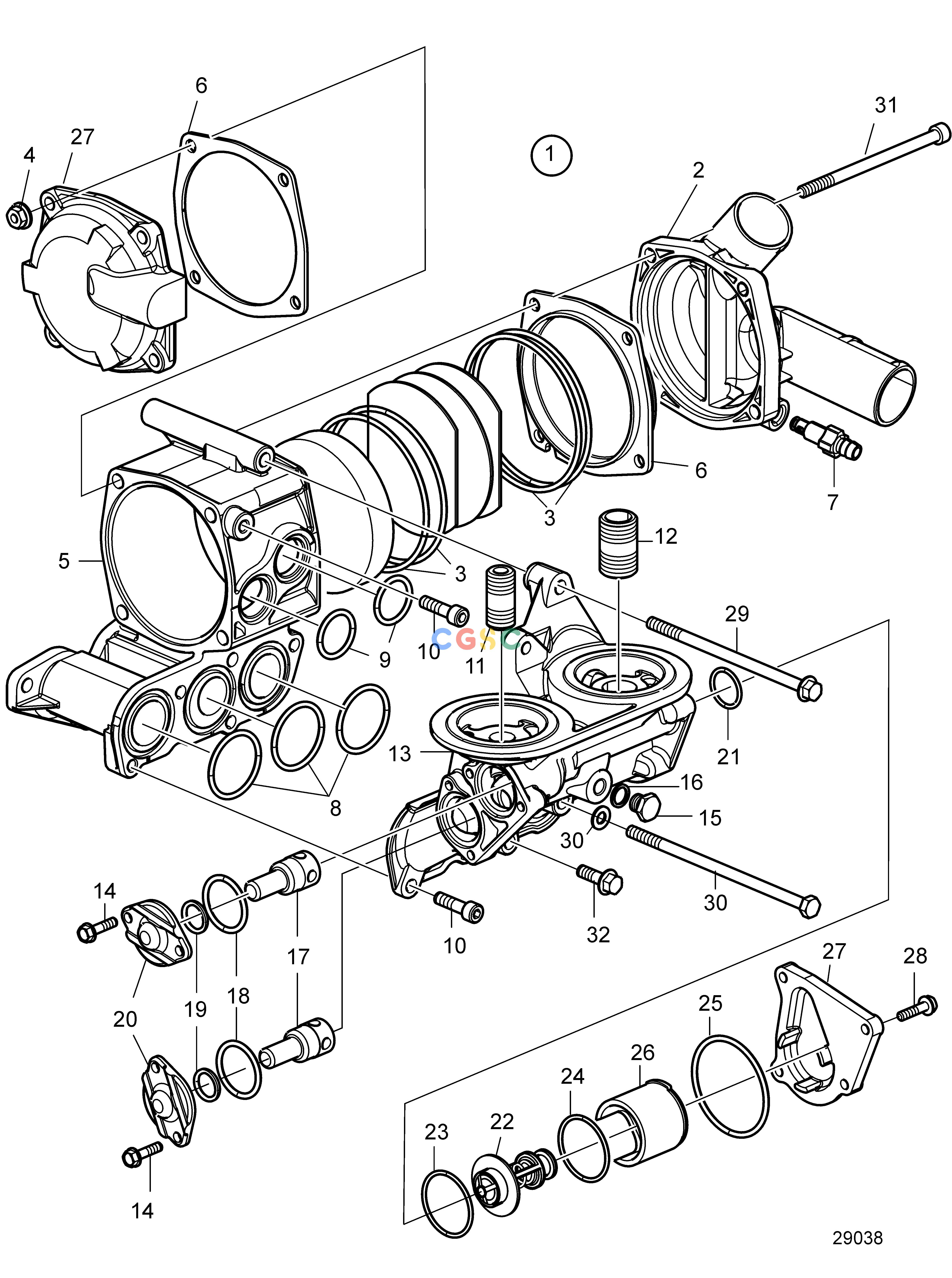

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Cooling SystemOil Cooler for Engine with Keel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22212940
|
[1] |
Oil cooler
|
|
| 2. |
3595407
|
[1] |
End cover
|
|
| 3. |
3583647
|
[4] |
O-ring
|
|
| 4. |
945408
|
[4] |
Flange nut
|
|
| 5. |
|
|
|
|
| 6. |
3583646
|
[2] |
Spacer
|
|
| 7. |
3583822
|
[1] |
Draining nipple
|
|
| 8. |
866690
|
[3] |
O-ring
|
|
| 9. |
3885174
|
[2] |
O-ring
|
|
| 10. |
959222
|
[5] |
Hex. socket screw
|
|
| 11. |
423067
|
[1] |
Nipple
|
|
| 12. |
3583695
|
[1] |
Nipple
|
|
| 13. |
3584419
|
[1] |
Housing
|
|
| 14. |
947542
|
[8] |
Flange screw
|
|
| 15. |
960629
|
[1] |
Plug
|
|
| 16. |
947282
|
[1] |
Gasket
|
|
| 17. |
471706
|
[2] |
Reduction valve
|
|
| 18. |
949659
|
[2] |
O-ring
|
|
| 19. |
469846
|
[2] |
Sealing ring
|
|
| 20. |
471648
|
[2] |
Cover
|
|
| 21. |
3588437
|
[1] |
Kit
|
|
| 22. |
3583827
|
[1] |
Thermostat
|
Including in kit 3588437
|
| 23. |
3583830
|
[1] |
O-ring
|
|
| 24. |
3583831
|
[1] |
O-ring
|
|
| 25. |
3583832
|
[1] |
O-ring
|
|
| 26. |
3583829
|
[1] |
Retainer
|
|
| 27. |
3583828
|
[1] |
Cover
|
|
| 28. |
|
|
|
|
| 29. |
968893
|
[1] |
Flange screw
|
|
| 30. |
955894
|
[1] |
Washer
|
|
| 31. |
980103
|
[1] |
Hexagon screw
|
|
| 32. |
|
|
|
|
