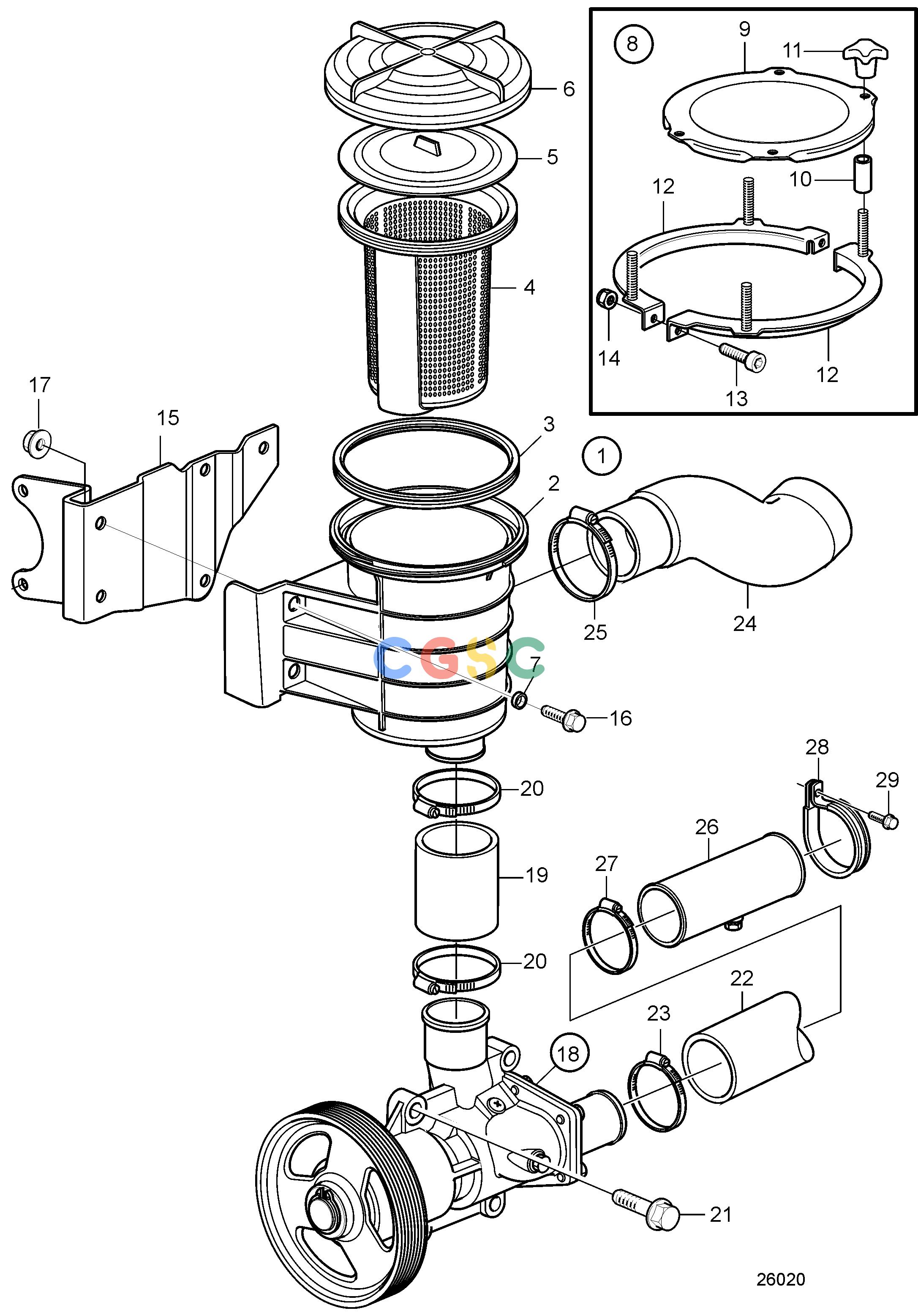

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Cooling SystemSea Water Pump and Sea Water Filter for Engines with DriveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
602 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889148
|
[1] |
Sea water filter
|
(3809070)
|
| 2. |
|
|
|
|
| 3. |
3583340
|
[1] |
Sealing ring
|
|
| 4. |
3583341
|
[1] |
Strainer
|
|
| 5. |
3583339
|
[1] |
Pressure plate
|
|
| 6. |
21400685
|
[1] |
Kit
|
|
| 7. |
3583853
|
[3] |
Spacer sleeve
|
|
| 8. |
21400685
|
[1] |
Kit
|
Alternative
|
| 9. |
21400696
|
[1] |
Cover
|
|
| 10. |
|
|
|
|
| 11. |
21457174
|
[4] |
Handle
|
|
| 12. |
21400686
|
[2] |
Bracket
|
|
| 13. |
942001
|
[2] |
Hex. socket screw
|
|
| 14. |
963105
|
[2] |
Lock nut
|
|
| 15. |
21368510
|
[1] |
Bracket
|
|
| 16. |
946173
|
[3] |
Flange screw
|
L=20mm
|
| 17. |
945408
|
[2] |
Flange nut
|
M8
|
| 18. |
3584062
|
[1] |
Sea water pump
|
|
| 19. |
943370
|
[1] |
Rubber hose
|
L=50mm
|
| 20. |
961671
|
[2] |
Hose clamp
|
|
| 21. |
947760
|
[4] |
Flange screw
|
L=40mm
|
| 22. |
3584040
|
[1] |
Hose
|
|
| 23. |
943479
|
[2] |
Hose clamp
|
|
| 24. |
3888924
|
[1] |
Hose
|
(3583010)
|
| 25. |
943479
|
[1] |
Hose clamp
|
|
| 26. |
3584430
|
[1] |
T-pipe
|
|
| 27. |
961672
|
[4] |
Hose clamp
|
|
| 28. |
984474
|
[1] |
Clamp
|
|
| 29. |
946440
|
[1] |
Flange screw
|
|
