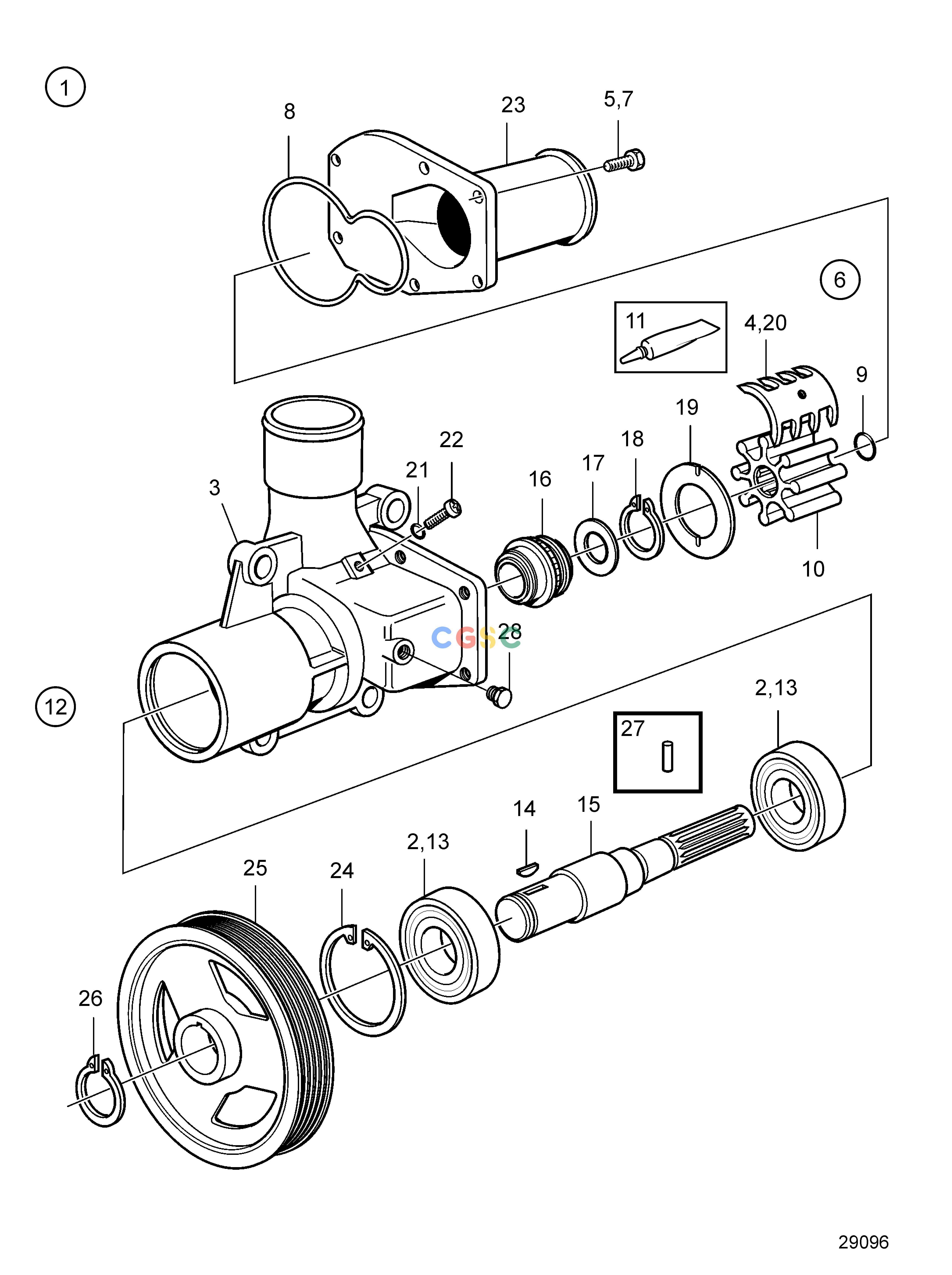

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Cooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584062
|
[1] |
Sea water pump
|
|
| 2. |
3583610
|
[2] |
Ball bearing
|
|
| 3. |
|
|
|
|
| 4. |
3583612
|
[1] |
Cam
|
|
| 5. |
3583604
|
[6] |
Hexagon screw
|
|
| 6. |
3588475
|
[1] |
Impeller kit
|
|
| 7. |
3583604
|
[2] |
Hexagon screw
|
|
| 8. |
3583611
|
[1] |
O-ring
|
|
| 9. |
804781
|
[1] |
Sealing washer
|
|
| 10. |
|
|
|
|
| 11. |
3862178
|
[1] |
Grease
|
|
| 12. |
21418999
|
[1] |
Kit, shaft, sea water pump
|
|
| 13. |
3583610
|
[2] |
Ball bearing
|
|
| 14. |
888386
|
[1] |
Key
|
|
| 15. |
|
|
|
|
| 16. |
3583609
|
[1] |
Seal
|
|
| 17. |
888388
|
[1] |
Washer
|
|
| 18. |
809444
|
[1] |
Lock ring
|
|
| 19. |
807589
|
[1] |
Wear washer
|
|
| 20. |
3583612
|
[1] |
Cam
|
|
| 21. |
3583614
|
[1] |
O-ring
|
|
| 22. |
3583605
|
[1] |
Hexagon screw
|
|
| 23. |
3583613
|
[1] |
Cap
|
|
| 24. |
825735
|
[1] |
Lock ring
|
|
| 25. |
3583599
|
[1] |
Pulley
|
|
| 26. |
804709
|
[1] |
Lock ring
|
|
| 27. |
888387
|
[1] |
Pin
|
|
| 28. |
981749
|
[1] |
Plug
|
|
