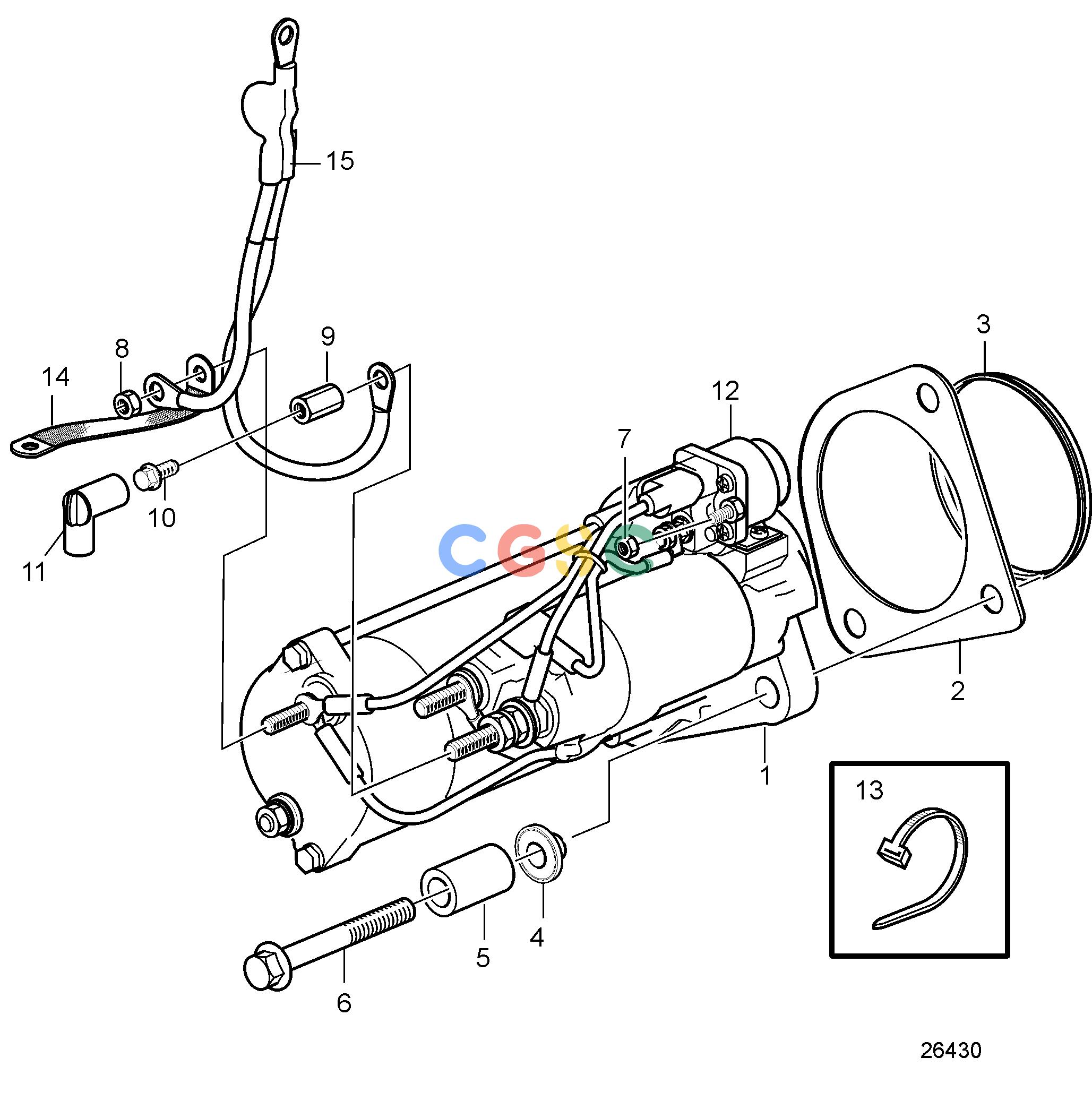

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Electrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801296
|
[1] |
Starter motor, exch
|
12V, SOLAS
|
| 1. |
|
|
|
|
| 1. |
3801297
|
[1] |
Starter motor, exch
|
24V, SOLAS
|
| 2. |
21389274
|
[1] |
Gasket
|
|
| 3. |
21380910
|
[1] |
Gasket
|
|
| 4. |
21308512
|
[3] |
Insulating bushing
|
|
| 5. |
845884
|
[3] |
Spacer sleeve
|
|
| 6. |
973246
|
[3] |
Hexagon screw
|
|
| 7. |
983714
|
[1] |
Hexagon nut
|
|
| 8. |
983715
|
[1] |
Hexagon nut
|
negative pole
|
| 9. |
857180
|
[1] |
Spacer nut
|
positive pole
|
| 10. |
946670
|
[1] |
Flange screw
|
|
| 11. |
855798
|
[1] |
Protecting sleeve
|
|
| 12. |
3818845
|
[1] |
Starter relay
|
12V
|
| 12. |
3818856
|
[1] |
Starter relay
|
24V
|
| 13. |
948702
|
[1] |
Cable tie
|
|
| 13. |
948211
|
[1] |
Cable tie
|
|
| 14. |
996153
|
[1] |
Chassis ground cable
|
Do not use with transient protector
|
| 15. |
21923306
|
[1] |
Wiring harness kit
|
Transient protector, alternative to chassis ground cable
|
