沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Electrical SystemTank Meter Kit for Fresh WaterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
994 次

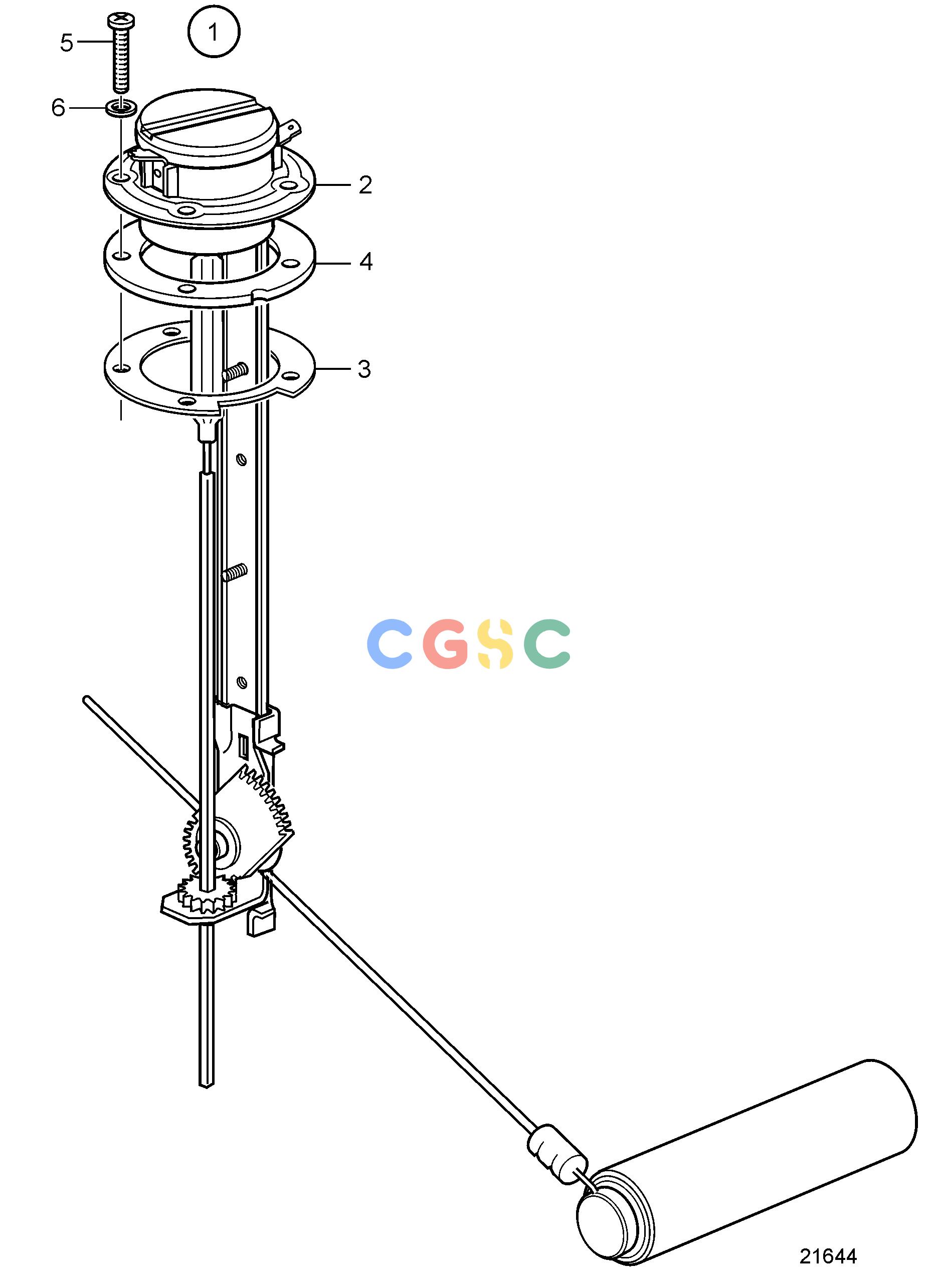

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3809098
|
[1] |
Level sensor, Set
|
|
| 2. |
834389
|
[1] |
Tank sensor
|
|
| 3. |
89865
|
[1] |
Gasket
|
|
| 4. |
834480
|
[1] |
Flange
|
|
| 5. |
956078
|
[4] |
Cross recessed screw
|
L=16mm (956078)
|
| 5. |
956081
|
[1] |
Cross recessed screw
|
L=25mm
|
| 6. |
834481
|
[5] |
Gasket
|
|
