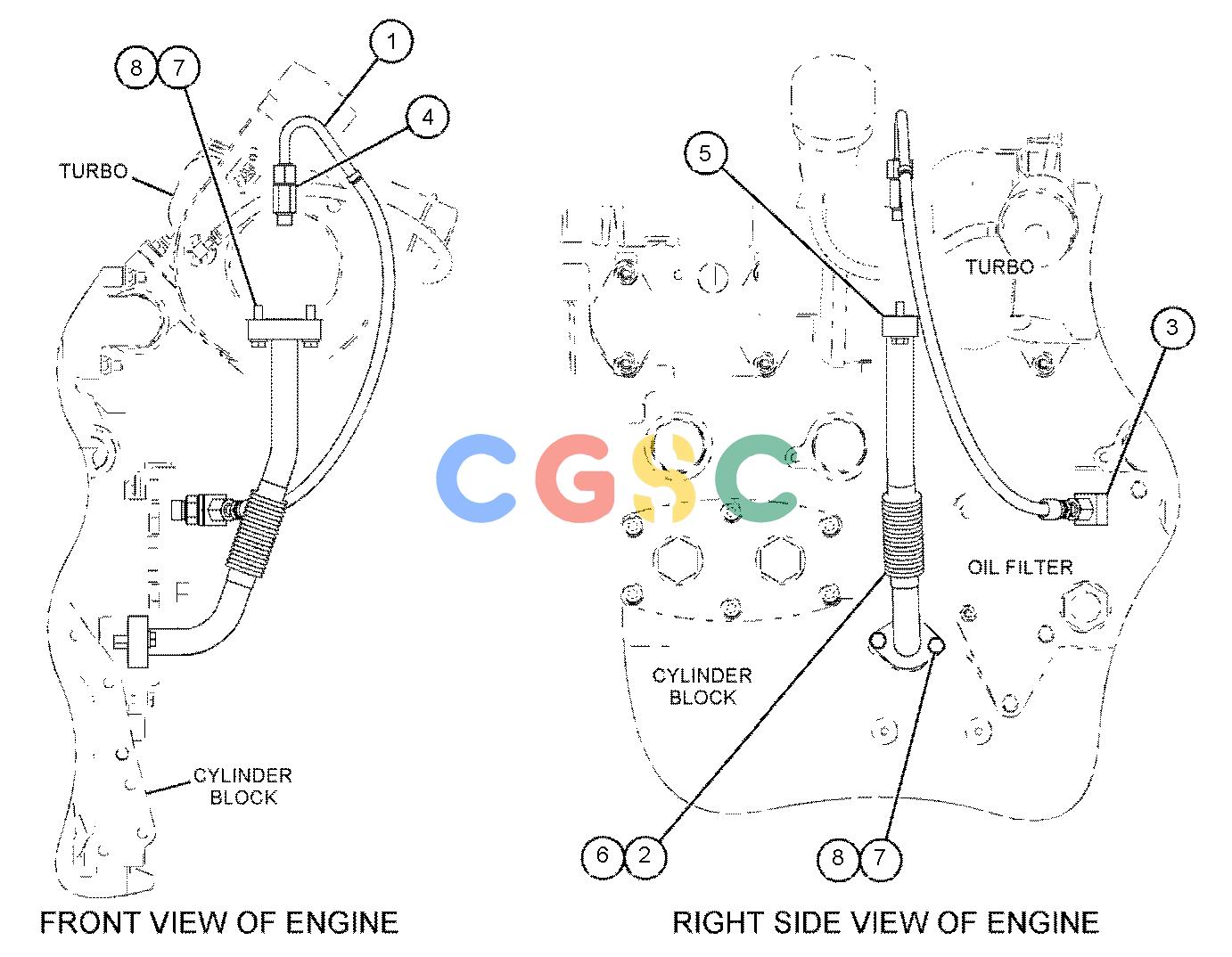

卡特零件查询（725C） 385-4385: LINES GP-TURBOCHARGER OIL
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 387-6488 | [1] | HOSE AS | |
| 2. | 387-6489 | [1] | TUBE AS-OIL | |
| 3. | 319-6224 | [1] | ELBOW AS | |
| | 6V-9876 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 4. | 353-5139 | [1] | CONNECTOR AS | |
| | 8T-0075 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 5. | 197-8419 | [1] | GASKET(TURBOCHARGER) | |
| 6. | 210-9246 | [1] | SEAL-O-RING | |
| 7. | 6V-5218M | [4] | BOLT(M8X1.25X35-MM) | |
| 8. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
