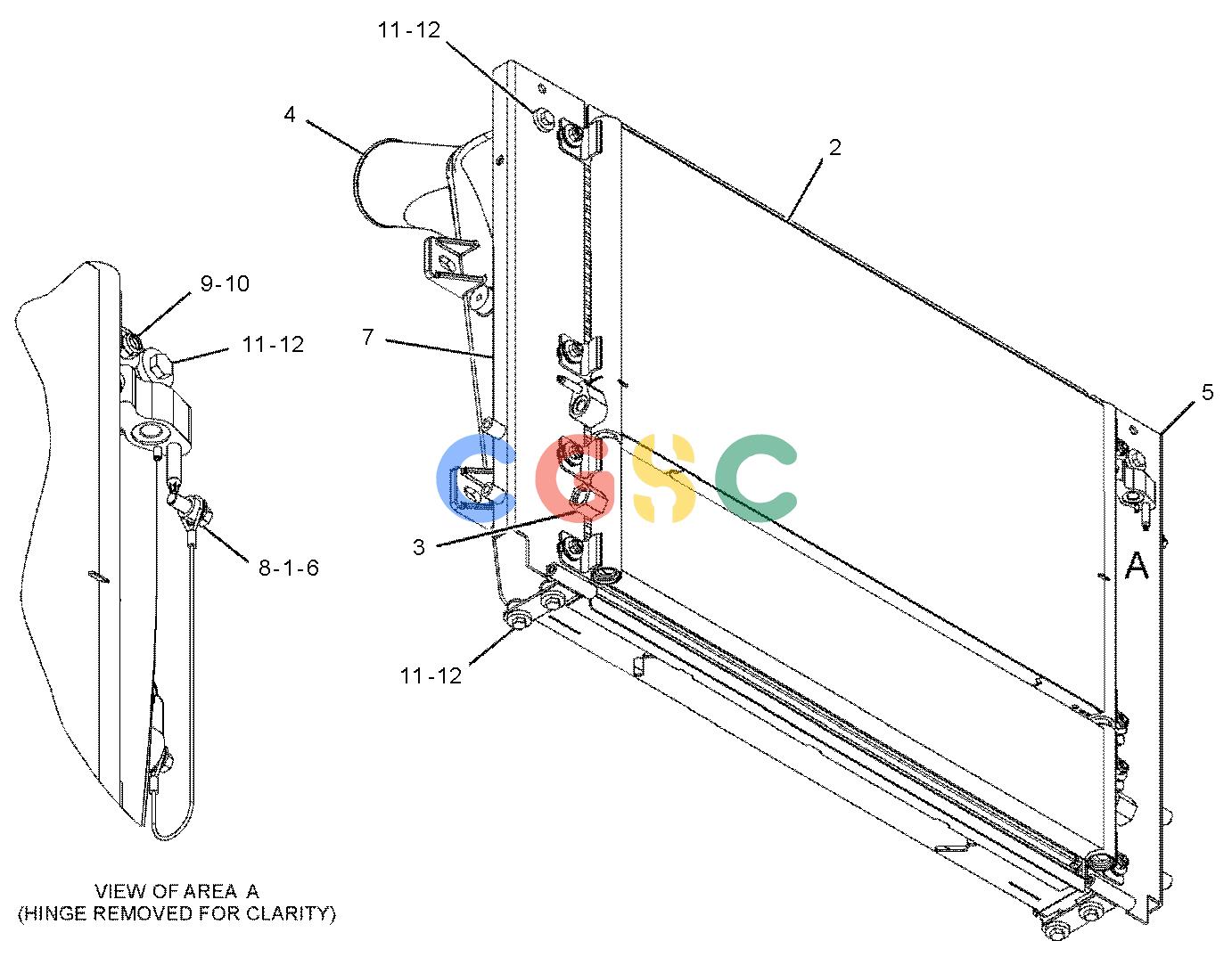

卡特零件查询（725C） 385-2613: AFTERCOOLER GP-AIR
广数供应链运营团队, 14 02月, 2025，浏览：
553 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 344-2576 | [1] | CABLE AS | |
| 2. | 371-0870 | [1] | CORE AS-CONDENSER | |
| | 317-8141 | [4] | MOUNT | |
| 3. | 371-0871 | [1] | CORE AS-FUEL COOLER | |
| | 317-8141 | [4] | MOUNT | |
| 4. | 381-5642 | [1] | CORE AS-AFTERCOOLER | |
| 5. | 385-2614 | [1] | HINGE AS | |
| 6. | 113-5522 | [2] | SPACER AS | |
| 7. | 448-3373 | [1] | HINGE AS | |
| 8. | 208-9281M | [2] | BOLT-FLANGE HEAD(M8X1.25X20-MM) | |
| 9. | 3T-0852M | [8] | LOCKNUT(M8X1.25-THD) | |
| 10. | 7X-0579 | [8] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 11. | 7X-0613 | [6] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 12. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
