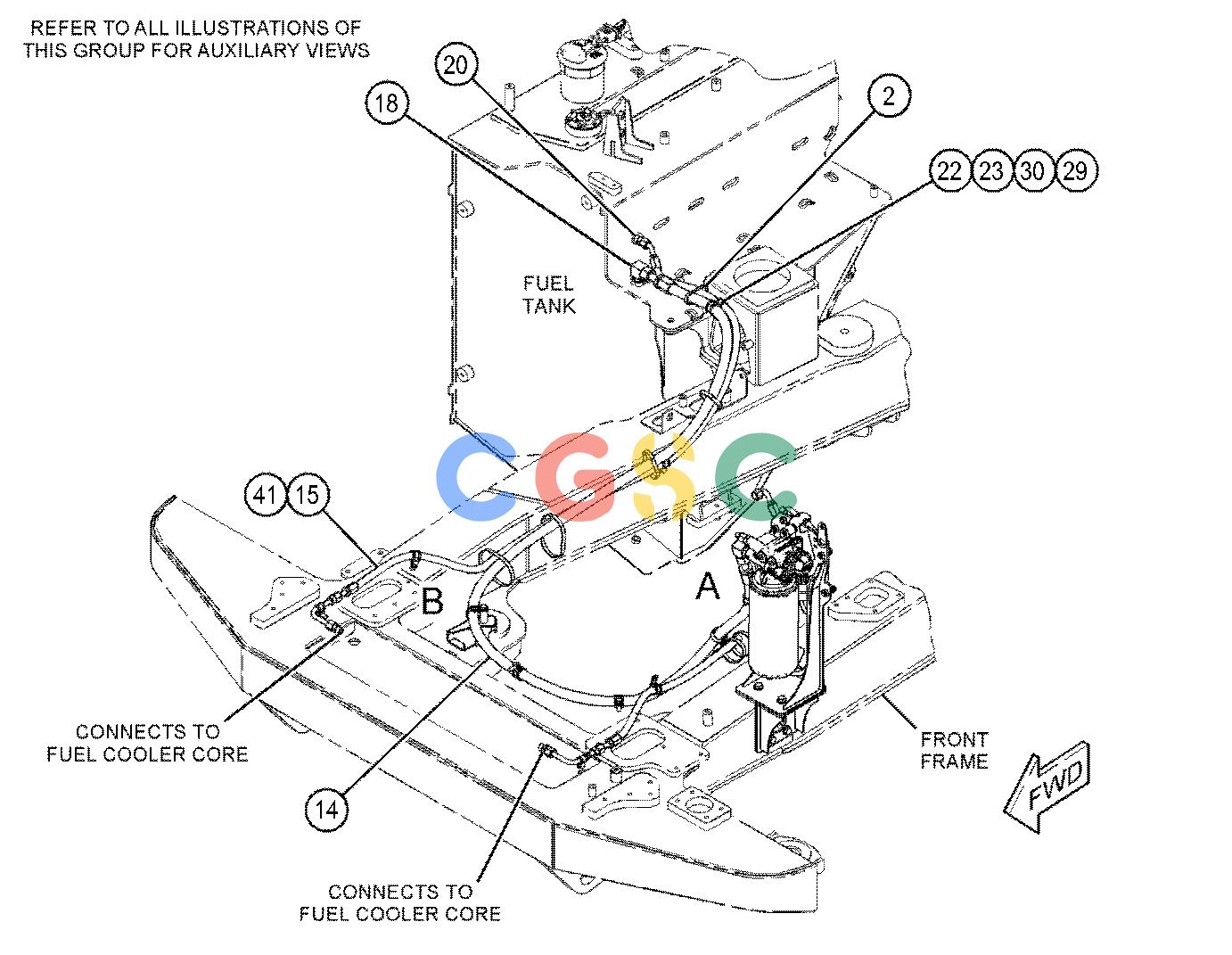

卡特零件查询（725C） 364-8694: LINES GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 203-2107 | [1] | HOSE | |
| 2. | 6U-0455 | [3] | STRAP | |
| 3. | 6U-0456 | [7] | STRAP | |
| 4. | 6U-3890 | [1] | CLIP | |
| 5. | 191-1782 | [1] | SPACER(8.5X12.7X38.2-MM THK) | |
| 6. | 191-1783 | [2] | SPACER(8.5X12.7X87.3-MM THK) | |
| 7. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 8. | 383-6097 | [1] | BRACKET AS | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| 9. | 425-5635 | [1] | CONNECTOR | |
| 10. | 463-5648 | [1] | PLATE AS | |
| | 8Y-3795M | [1] | BOSS(M10X1.5X39-MM) | |
| 11. | 444-8007I | [1] | HOSE AS | |
| 12. | 444-8008I | [1] | HOSE AS | |
| 13. | 444-8009I | [1] | HOSE AS | |
| 14. | 444-8010I | [1] | HOSE AS | |
| 15. | 444-8012I | [1] | HOSE AS | |
| 16. | 444-8022 | [1] | BRACKET AS | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2672M | [1] | BOSS-THREADED(M10X1.5X120-MM) | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 17. | 260-9219 | [1] | CONNECTOR AS | |
| | 6V-8638 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 18. | 281-5976 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8629 | [1] | ELBOW | |
| | 228-7092 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 19. | 309-5131 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 20. | 319-6217 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8639 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 21. | 390-6840Y | [1] | PUMP GP-FUEL PRM & PRIM FILTER | |
| 22. | 3U-2754 | [5] | CLIP(LOOP) | |
| 23. | 3U-2755 | [5] | CLIP(LOOP) | |
| 26. | 7X-0579 | [6] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 27. | 7X-2539M | [2] | BOLT(M8X1.25X110-MM) | |
| 29. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 31. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 32. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 33. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 34. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 36. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 37. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 38. | 8T-9655 | [6] | MOUNT-ISOLATION | |
| 39. | 352-6032I | [1] | HOSE AS | |
| 40. | 422-3087 | [2] | TUBE AS | |
| 41. | 228-7090 | [2] | SEAL-O-RING | |
| 42. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 43. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 44. | 3U-2752 | [2] | CLIP(LOOP) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
