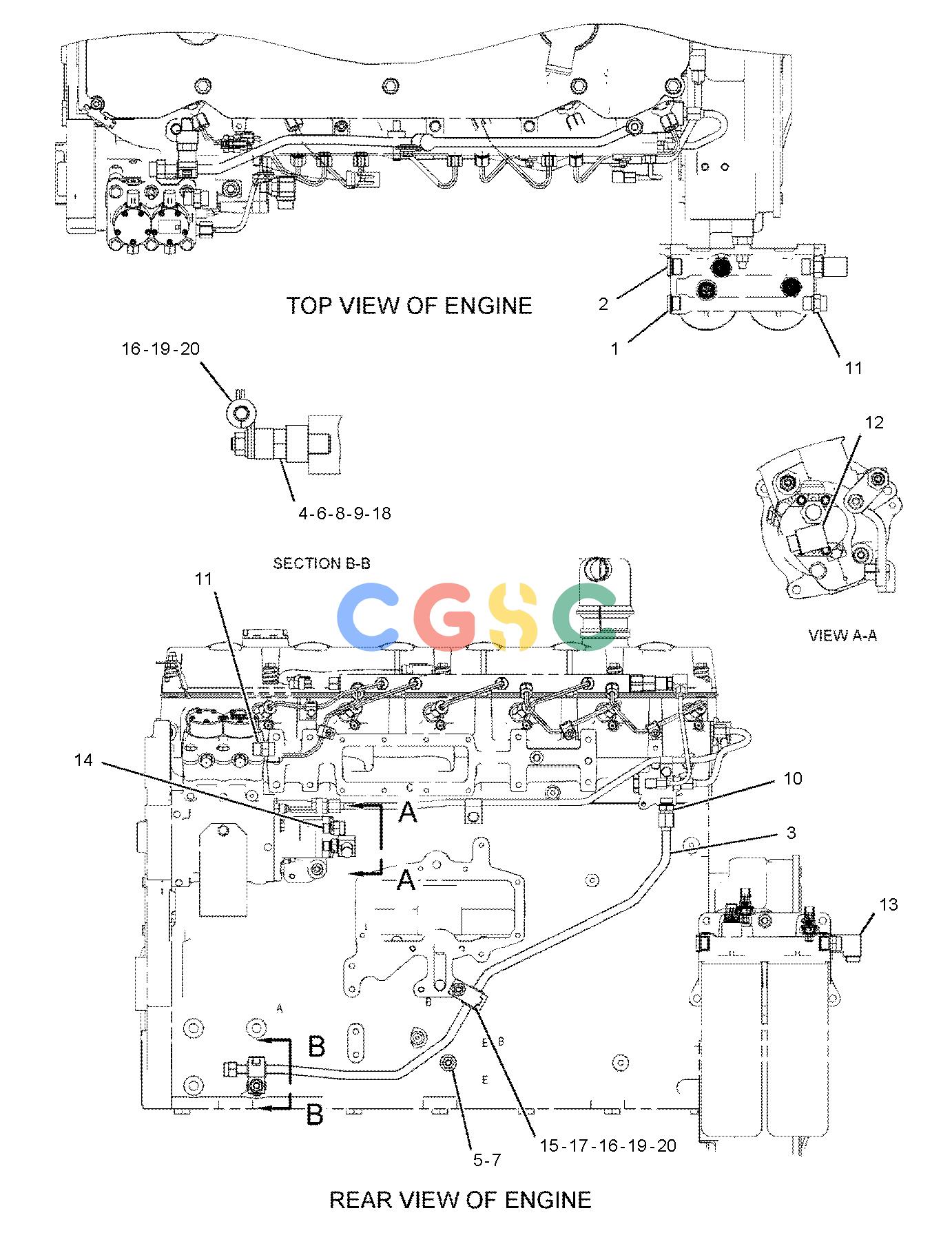

卡特零件查询（725C） 382-1126: LINES GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 398-5596 | [1] | PLUG AS | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | 360-3680 | [1] | PLUG | |
| 2. | 398-5601 | [1] | PLUG AS | |
| | 238-5081 | [1] | SEAL-O-RING | |
| | 360-3681 | [1] | PLUG(7/8-14-THD) | |
| 3. | 442-5903 | [1] | TUBE AS-FUEL | |
| 4. | 054-6233 | [1] | SPACER(13X24.9X16-MM THK) | |
| 5. | 142-3953M | [1] | STUD(M10X1.5-THD) | |
| 6. | 188-3001 | [1] | BOSS(17.5X30X18-MM THK) | |
| 7. | 198-4777 | [1] | WASHER-HARD(11X25X10-MM THK) | |
| 8. | 276-3596 | [1] | STUD | |
| 9. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 10. | 307-9615 | [1] | ADAPTER AS | |
| | 8M-0505 | [1] | ADAPTER | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 11. | 319-6217 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8639 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 12. | 319-6226 | [1] | ELBOW AS | |
| | 8T-6876 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 13. | 319-6228 | [1] | ELBOW AS | |
| | 6V-8721 | [1] | ELBOW | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 14. | 319-6240 | [1] | CONNECTOR AS | |
| | 6V-9873 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 15. | 3E-4352 | [2] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 16. | 4P-7233 | [2] | GROMMET | |
| 17. | 5P-7970M | [1] | NUT(M8X1.25-THD) | |
| 18. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 19. | 8T-1887 | [2] | CLIP(SLOT) | |
| 20. | 8T-1888 | [2] | CLIP(TAB) | |
| | M | | METRIC PART |
