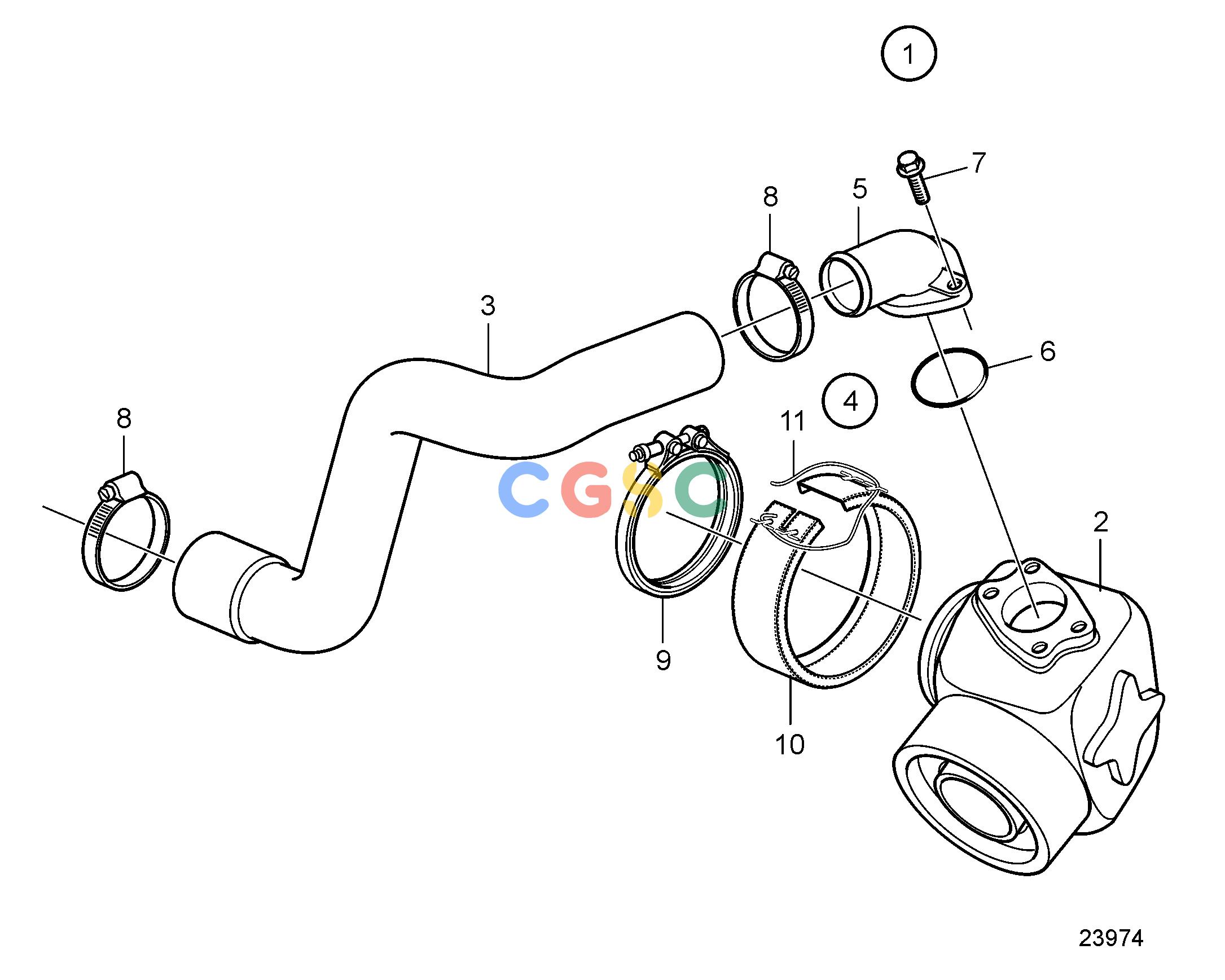

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Intake and Exhaust SystemExhaust Pipe Kit for IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3887040
|
[1] |
Exhaust pipe kit
|
|
| 2. |
3847893
|
[1] |
Exhaust pipe elbow
|
|
| 3. |
3809100
|
[1] |
Hose
|
|
| 4. |
|
|
|
|
| 5. |
21450768
|
[1] |
Connector
|
|
| 6. |
969415
|
[1] |
O-ring
|
|
| 7. |
948356
|
[2] |
Flange screw
|
|
| 8. |
961672
|
[2] |
Hose clamp
|
|
| 9. |
842993
|
[1] |
V-clamp
|
|
| 10. |
3817198
|
[1] |
Insulation
|
|
| 11. |
941710
|
[1] |
Locking wire
|
L=400mm
|
