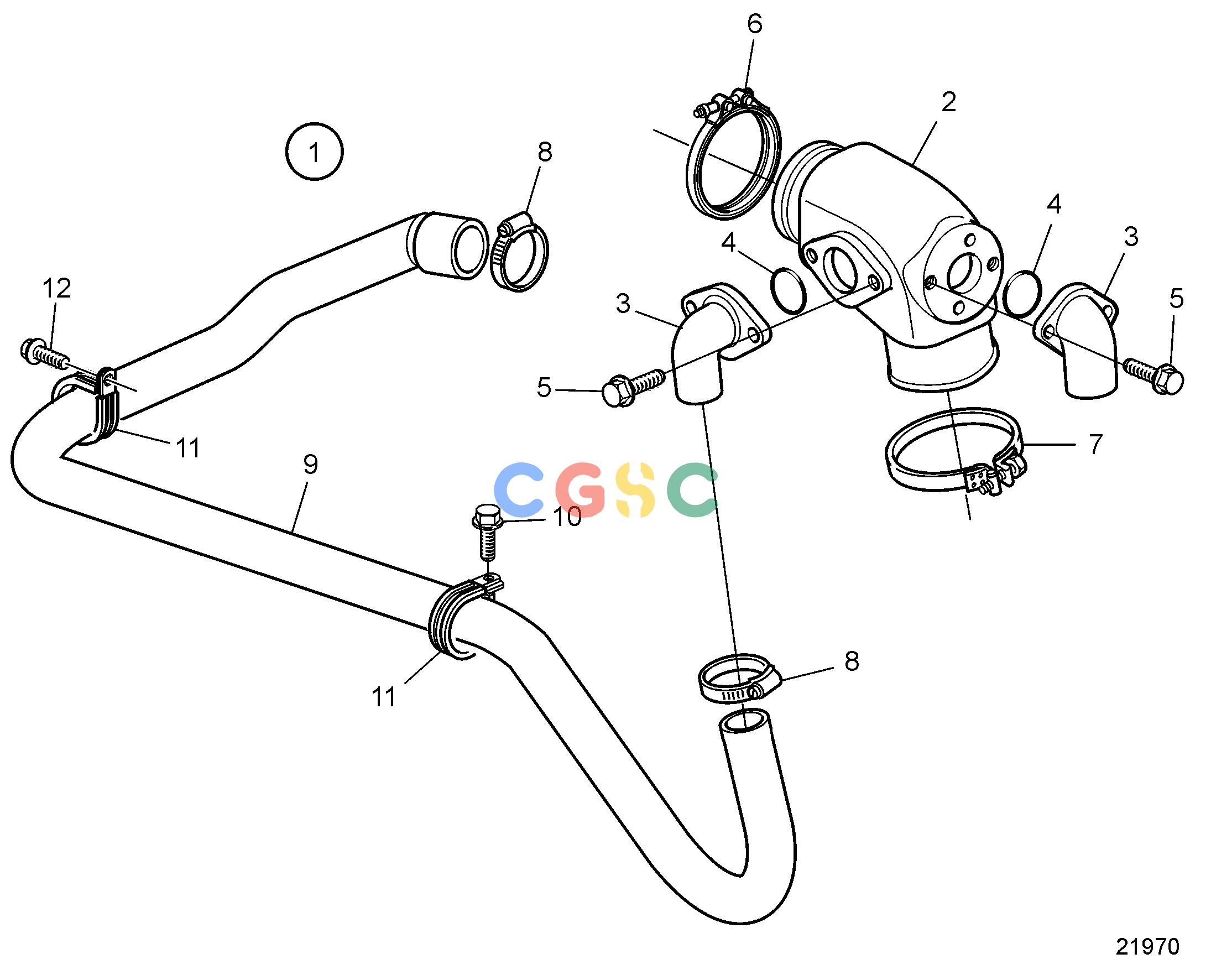

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Intake and Exhaust SystemExhaust Pipe Kit, AQ. SN-2004007439EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3817826
|
[1] |
Exhaust pipe kit
|
(888102)
|
| 2. |
3884701
|
[1] |
Exhaust pipe elbow
|
(3583856)
|
| 3. |
21450768
|
[2] |
Connector
|
(3583915)
|
| 4. |
969415
|
[2] |
O-ring
|
|
| 5. |
948356
|
[4] |
Flange screw
|
|
| 6. |
842993
|
[1] |
V-clamp
|
|
| 7. |
3817484
|
[1] |
Hose clamp
|
|
| 8. |
961671
|
[3] |
Hose clamp
|
|
| 9. |
3817234
|
[1] |
Hose
|
|
| 10. |
946440
|
[2] |
Flange screw
|
|
| 11. |
969354
|
[2] |
Clamp
|
|
| 12. |
945408
|
[2] |
Flange nut
|
|
