神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (10.218.AD) - FUEL FILLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
356 次

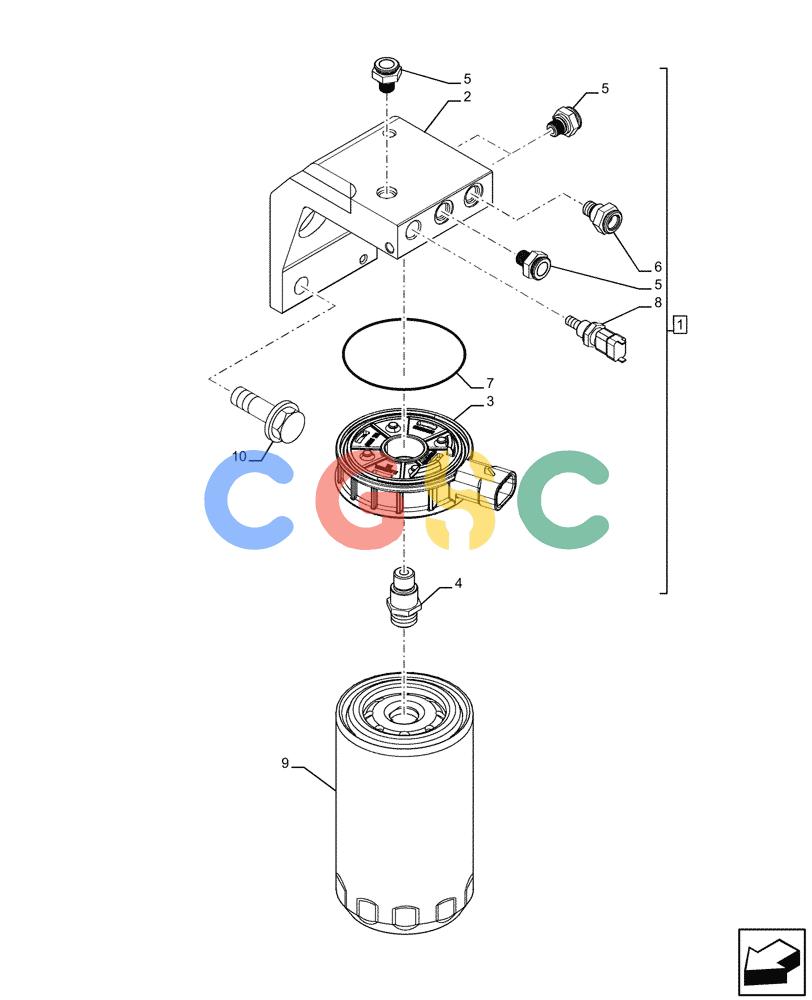

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854561 | [1] | HOUSING | TORASSY, Head fuel filter, Incl 2 - 8 Superseded by part number: |
| 2. | 2854562 | [1] | BRACKET | TORFilter support Superseded by part number: 2855425 |
| 3. | 4897838 | [1] | HEATER | TOR |
| 4. | 2854565 | [1] | BUSHING | TORThreaded |
| 5. | 2854563 | [4] | FITTING | TORQuick disconnect connector Superseded by part number: 504210082 |
| 6. | 2854564 | [1] | FITTING,M12 x 1.5 - 12 H9 | TORQuick disconnect connector |
| 7. | 4898876 | [1] | O-RING,63.1mm ID x 3.53mm Width | TOR |
| 8. | 4897224 | [1] | SENSOR | TORTemperature |
| 9. | 84412164 | [1] | FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns | FARSpin on |
| 10. | 2854566 | [2] | SCREW,Hex, M12 x 1.75 x 30mm | TOR Superseded by part number: 16588025 |
