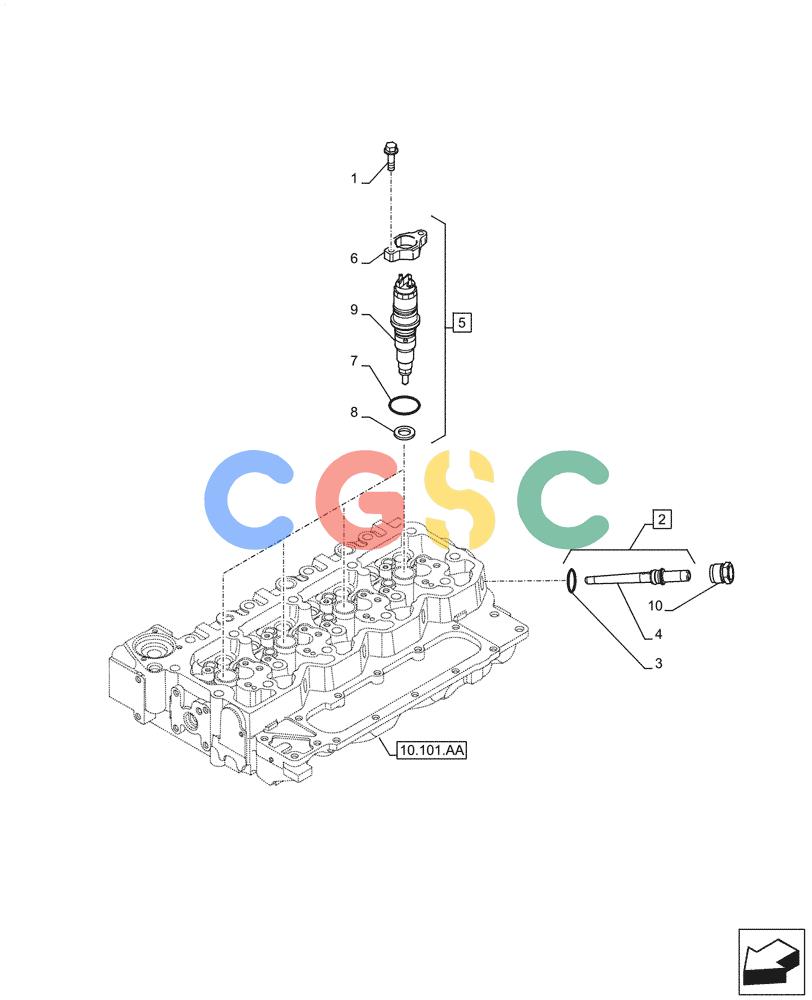

神钢零件查询(F4HFE4135 B003) - ENGINE 5802094949 84553225 TC4.90 and TC5.70 TIER4B (10/16-) (10.218.AF) - FUEL INJECTOR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
634 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895483 | [8] | BOLT,Flng, M6 x 1 x 35mm | TOR |
| 2. | 2854606 | [4] | FUEL TUBE,Connector Assembly | SMASSY, Incl 3, 4 Superseded by part number: 504100835 |
| 3. | 4890929 | [1] | O-RING,3mm Thk x 11mm ID | TOR |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONFitting, Incl in 2 |
| 5. | 2855135 | [4] | FUEL SYSTEM INJECTOR | TORASSY, Incl 6 - 9 Superseded by part number: 504128307 |
| 6. | 2854609 | [1] | BRACKET | TORRetaining Superseded by part number: 504091492 |
| 7. | 4890926 | [1] | O-RING,3mm Thk x 20.9mm ID, 60 Duro | TOR |
| 8. | 4899689 | [1] | SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk | TOR |
| 10. | 4893739 | [4] | TUBE NUT,Hex, M22 x 1.5 | TOR |
