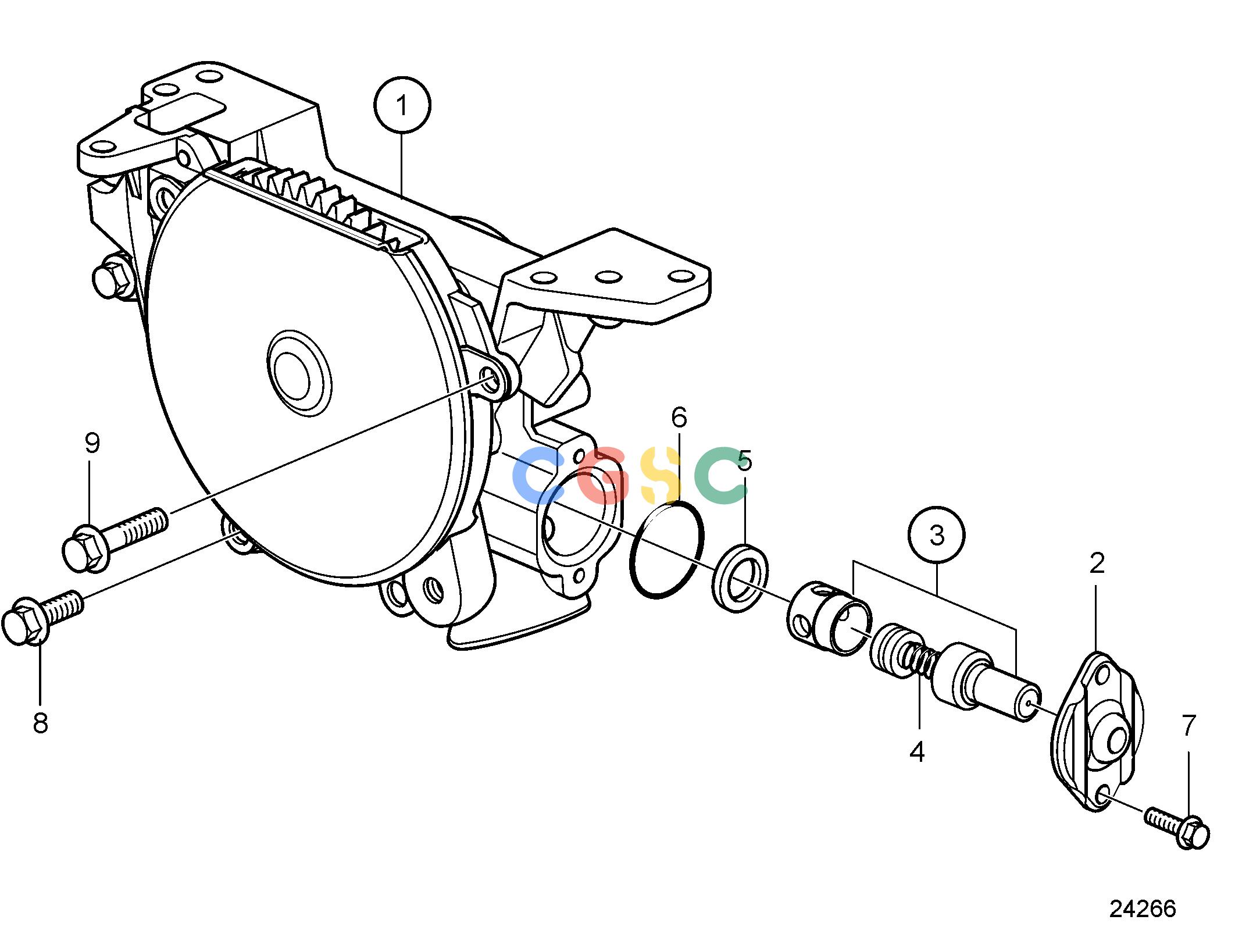

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Lubricating SystemOil Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3582667
|
[1] |
Oil pump
|
|
| 2. |
471648
|
[1] |
Cover
|
|
| 3. |
3826265
|
[1] |
Reduction valve
|
|
| 4. |
3826266
|
[1] |
Spring
|
|
| 5. |
469846
|
[1] |
Sealing ring
|
|
| 6. |
949659
|
[1] |
O-ring
|
|
| 7. |
946544
|
[2] |
Flange screw
|
L=16mm
|
| 8. |
946470
|
[2] |
Flange screw
|
L=35mm
|
| 9. |
967949
|
[2] |
Flange screw
|
L=12mm
|
