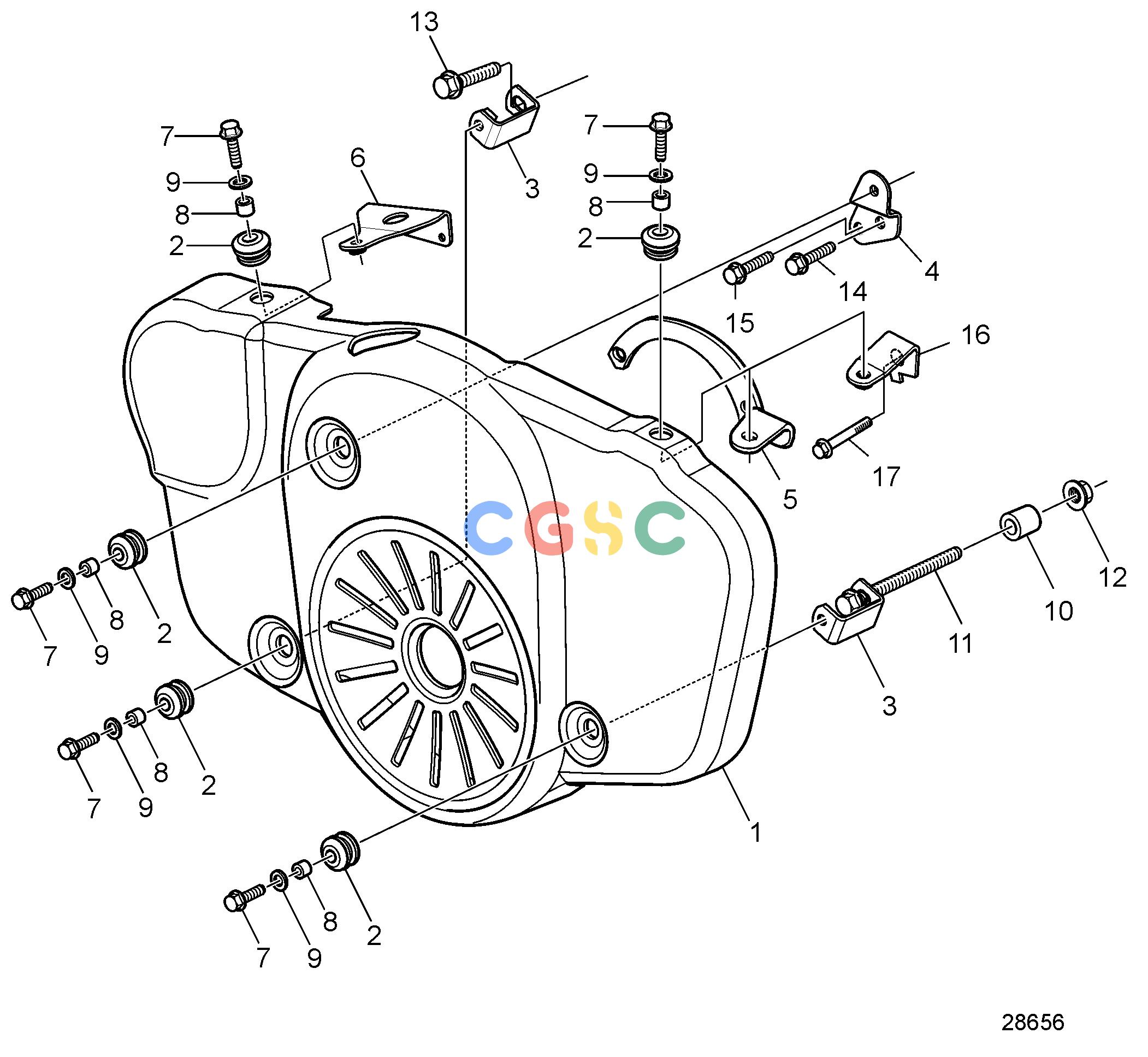

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-Miscellaneous EquipmentBelt Guard for Engines with Compressor. Extra EquipmentEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
678 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808883
|
[1] |
Belt protector
|
Replaced by 21119505
|
| 1. |
21119505
|
[1] |
Belt protector
|
Replaced by 21262733
|
| 1. |
21262733
|
[1] |
Belt protector
|
SOLAS
|
| 2. |
673989
|
[5] |
Grommet
|
|
| 3. |
3588731
|
[2] |
Bracket
|
|
| 4. |
3588732
|
[1] |
Bracket
|
|
| 5. |
21368512
|
[1] |
Bracket
|
|
| 6. |
21142168
|
[1] |
Bracket
|
|
| 7. |
963567
|
[5] |
Hexagon screw
|
|
| 8. |
3830336
|
[5] |
Spacer
|
|
| 9. |
941670
|
[5] |
Washer
|
|
| 10. |
1678297
|
[1] |
Spacer sleeve
|
|
| 11. |
979935
|
[1] |
Flange screw
|
L=160mm
|
| 12. |
971096
|
[1] |
Flange nut
|
|
| 13. |
978447
|
[1] |
Flange screw
|
|
| 14. |
965186
|
[1] |
Flange screw
|
|
| 15. |
965190
|
[1] |
Flange screw
|
|
| 16. |
22539176
|
[1] |
Bracket
|
|
| 17. |
946173
|
[1] |
Flange screw
|
|
