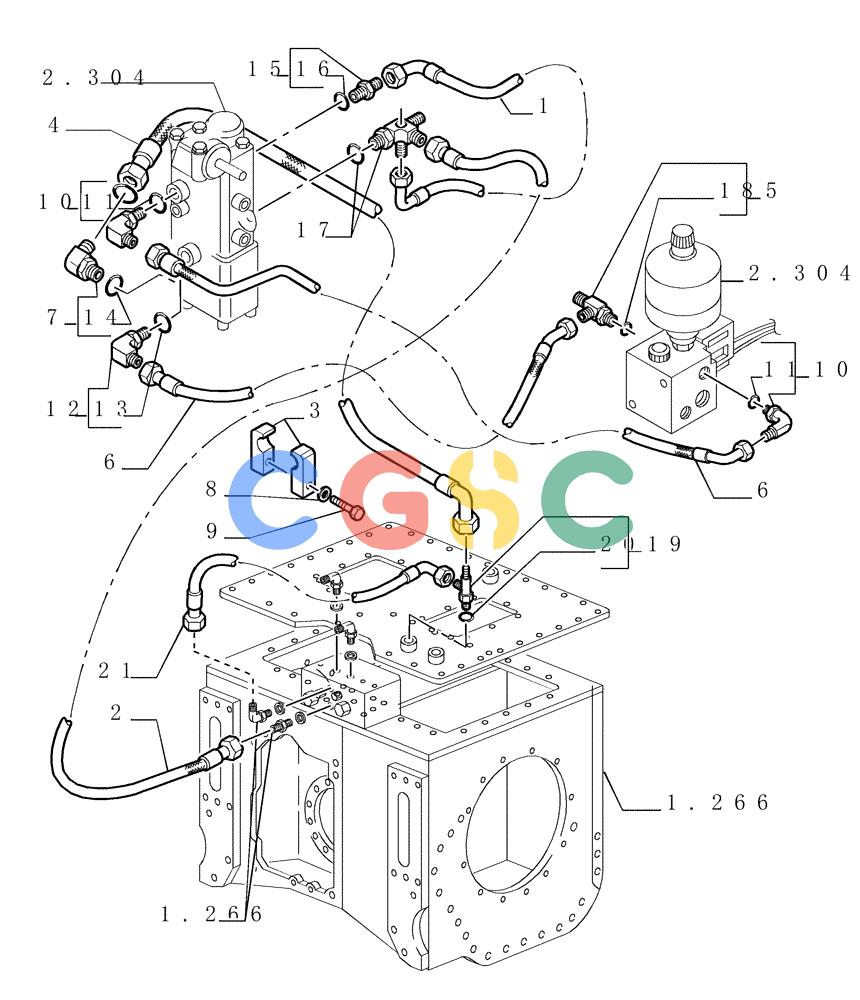

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.319[02]) - STEERING CONNECTING PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
931 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054899 | [1] | HYDRAULIC HOSE | LEC |
| 2. | 76046647 | [1] | HYDRAULIC HOSE | LEC |
| 3. | 79055908 | [2] | CLAMP | LEC |
| 4. | 76054898 | [1] | HYDRAULIC HOSE | LEC |
| 5. | 79067003 | [1] | TEE | LEC- ASSY |
| 6. | 76054881 | [2] | HYDRAULIC HOSE | LEC |
| 7. | 79067024 | [1] | ELBOW | LEC- ASSY 20 a 90° |
| 8. | 12638631 | [1] | WASHER,10.6mm ID x 18mm OD x 2mm Thk | LEC Superseded by part number: 86625251 |
| 9. | 11107031 | [1] | BOLT,Hex, M10 x 45mm, Cl 10.9 | LEC Superseded by part number: 86508618 |
| 10. | 79067019 | [2] | ELBOW | LEC- ASSY |
| 12. | 79067018 | [1] | 90 ELBOW | LEC- ASSY 10 a 90° |
| 13. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 14. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 15. | 76069200 | [1] | HYD CONNECTOR | LEC- ASSY |
| 17. | 76054890 | [1] | SWIVEL CONNECTION | LEC |
| 19. | 79067008 | [1] | SWIVEL CONNECTION | LECM22 |
| 21. | 76046651 | [1] | FLEXIBLE HOSE | LEC |
| 16. | 14437685 | [1] | O-RING,9.30mm ID x 2.40mm | JES |
| 11. | 14437885 | [1] | O-RING,13.30mm ID x 2.40mm | LEC |
