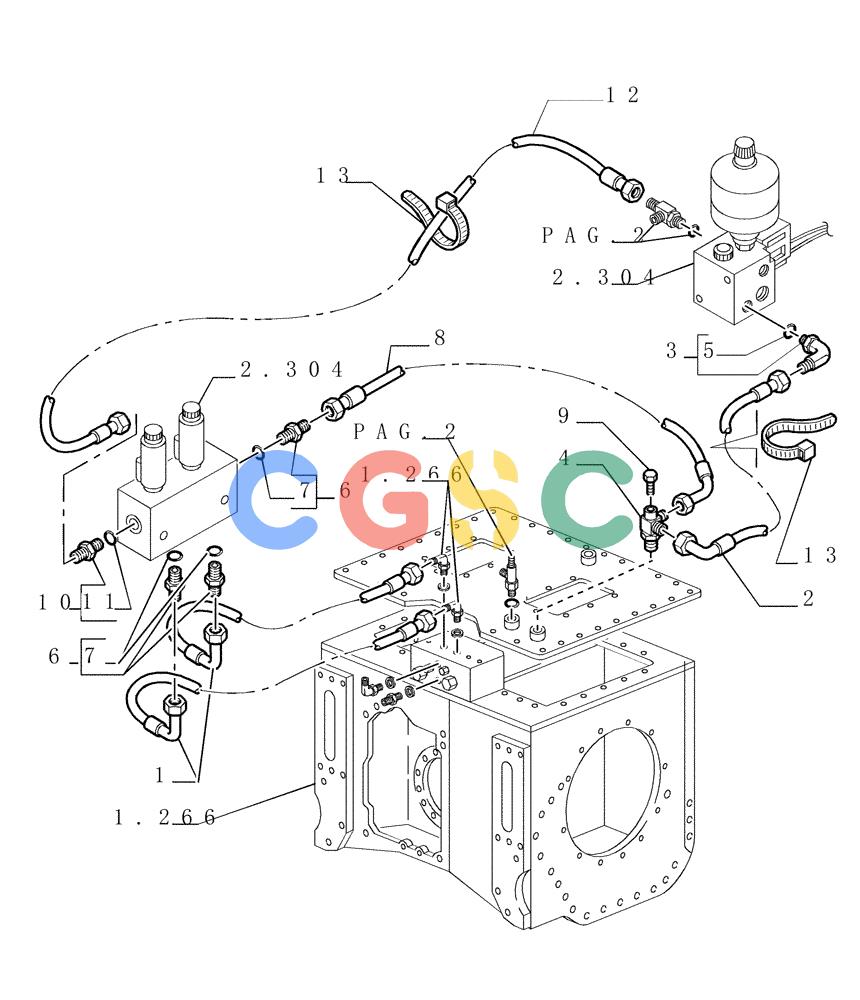

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.319[03]) - STEERING CONNECTING PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054915 | [2] | FLEXIBLE HOSE | LEC |
| 2. | 76054904 | [1] | HYDRAULIC HOSE | LEC |
| 3. | 79067017 | [1] | ELBOW | LEC- ASSY 90° - 8 |
| 4. | 76054890 | [1] | SWIVEL CONNECTION | LEC |
| 5. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 6. | 79066944 | [3] | HYD CONNECTOR | LEC |
| 7. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 8. | 76054916 | [1] | FLEXIBLE HOSE | LEC |
| 9. | 14323111 | [1] | PLUG | LEC10X1 |
| 10. | 79066938 | [1] | FITTING | LEC- ASSY 10 |
| 12. | 76054924 | [1] | FLEXIBLE HOSE | LEC |
| 13. | 4982514 | [4] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
