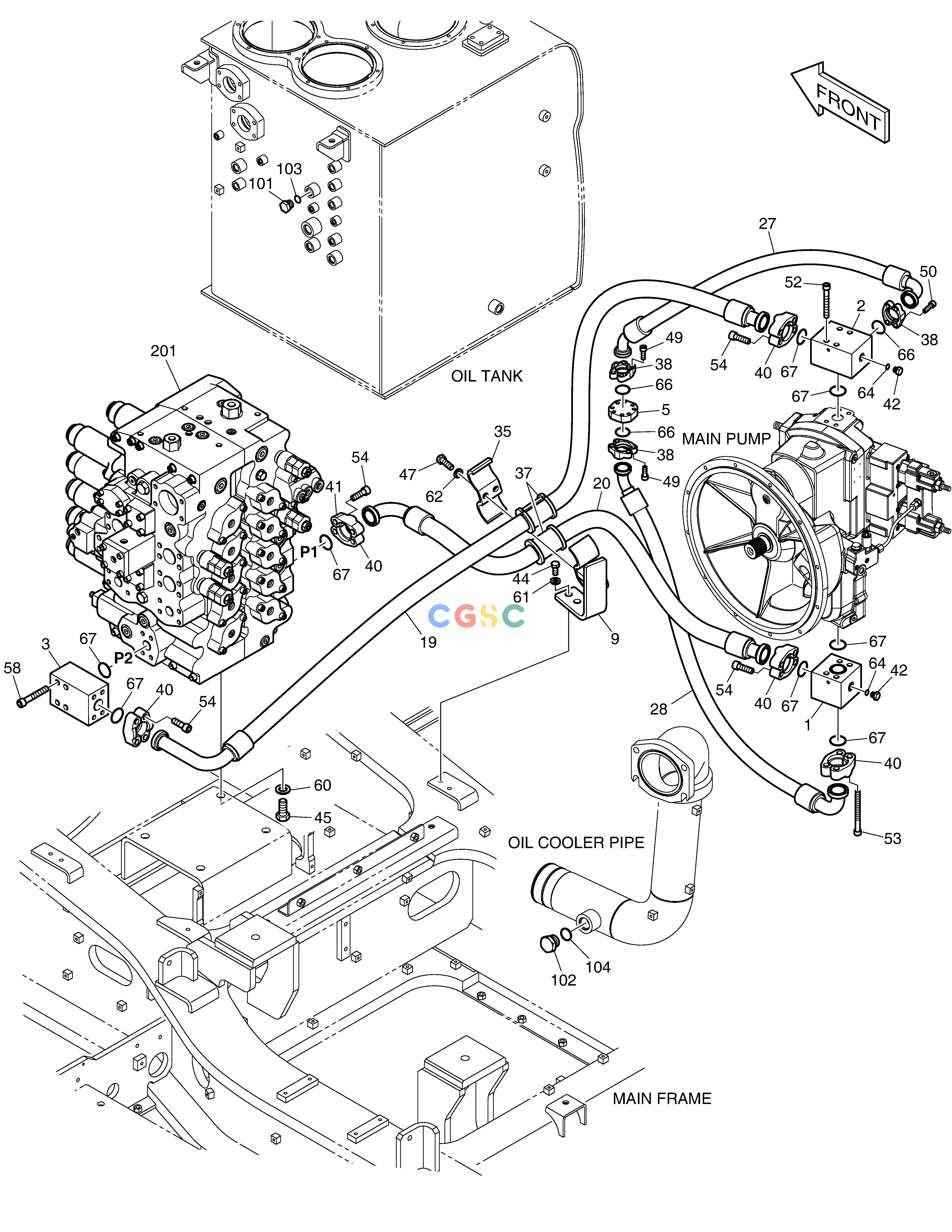

斗山零件查询MAIN PIPING(1) - PUMP DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08059
|
[-] |
|
|
| 1. |
100201-00187B
|
[1] |
|
|
| 101. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 102. |
2181-1950D9
|
[1] |
PLUG
|
|
| 103. |
S8000181
|
[1] |
O-RING
|
|
| 104. |
S8000291
|
[1] |
O-RING
|
|
| 19. |
DS20401025
|
[1] |
|
|
| 2. |
100201-00188B
|
[1] |
|
|
| 20. |
DS20401026
|
[1] |
|
|
| 201. |
410105-00031E
|
[1] |
|
|
| 27. |
DS2043198
|
[2] |
|
|
| 28. |
DS2043199
|
[2] |
|
|
| 3. |
100201-02056A
|
[1] |
|
|
| 35. |
K1003999
|
[1] |
CLAMP;PIPE
|
|
| 37. |
161-00280
|
[2] |
RUBBER
|
|
| 38. |
2181-9078
|
[10] |
FLANGE;SPLIT
|
|
| 40. |
2181-9086
|
[9] |
FLANGE;SPLIT
|
|
| 41. |
K1014858
|
[1] |
FLANGE;SPLIT
|
|
| 42. |
2181-1950D1
|
[2] |
PLUG
|
|
| 44. |
S0515066
|
[2] |
BOLT
|
|
| 45. |
S0527566
|
[4] |
BOLT M20X2.5X45
|
|
| 47. |
S0562966
|
[2] |
BOLT,HEX
|
|
| 49. |
S2212266
|
[16] |
BOLT
|
|
| 5. |
100201-00016A
|
[2] |
|
|
| 50. |
S2212366
|
[4] |
BOLT
|
|
| 52. |
S2216566
|
[4] |
BOLT;SOCKET
|
|
| 53. |
S2217266
|
[4] |
BOLT;SOCKET
|
|
| 54. |
S2218566
|
[16] |
BOLT;SOCKET
|
|
| 58. |
S2219466
|
[4] |
BOLT
|
|
| 60. |
2114-9012A
|
[4] |
WASHER
|
|
| 61. |
4114-1792A
|
[2] |
WASHER
|
|
| 62. |
S5102803
|
[2] |
WASHER
|
|
| 64. |
S8000111
|
[2] |
O-RING
|
|
| 66. |
2180-1026D19
|
[5] |
O-RING
|
|
| 67. |
2180-1026D23
|
[8] |
O-RING
|
|
| 9. |
110406-01067A
|
[1] |
|
|
