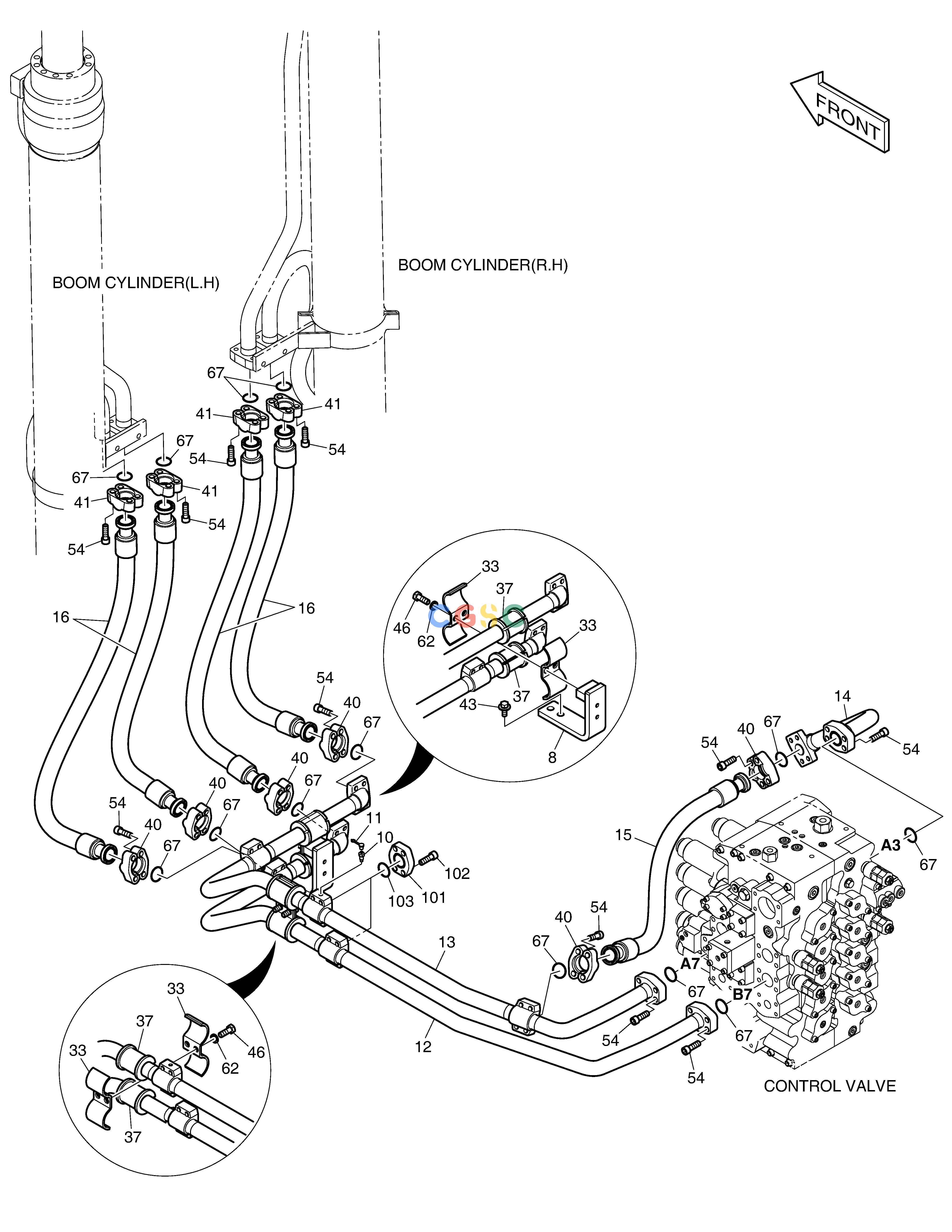

斗山零件查询MAIN PIPING(2) - BOOM DX530LC-5(S/N:10001~10006) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08059
|
[-] |
|
|
| 10. |
120705-00105
|
[1] |
|
|
| 101. |
2181-2157D8
|
[2] |
FLANGE
|
|
| 102. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 103. |
2180-1026D23
|
[2] |
O-RING
|
|
| 11. |
160-00020
|
[1] |
CAP
|
|
| 12. |
420207-00159B
|
[1] |
|
|
| 13. |
420207-00160C
|
[1] |
|
|
| 14. |
420207-01048A
|
[1] |
|
|
| 15. |
DS2038384
|
[1] |
|
|
| 16. |
DS2038417
|
[4] |
|
|
| 33. |
124-00205A
|
[4] |
CLAMP;PIPE
|
|
| 37. |
161-00280
|
[4] |
RUBBER
|
|
| 40. |
2181-9086
|
[12] |
FLANGE;SPLIT
|
|
| 41. |
K1014858
|
[8] |
FLANGE;SPLIT
|
|
| 43. |
DS0025020
|
[2] |
BOLT
|
|
| 46. |
S0562766
|
[4] |
BOLT
|
|
| 54. |
S2218566
|
[52] |
BOLT;SOCKET
|
|
| 62. |
S5102803
|
[4] |
WASHER
|
|
| 67. |
2180-1026D23
|
[13] |
O-RING
|
|
| 8. |
110406-00472A
|
[1] |
|
|
