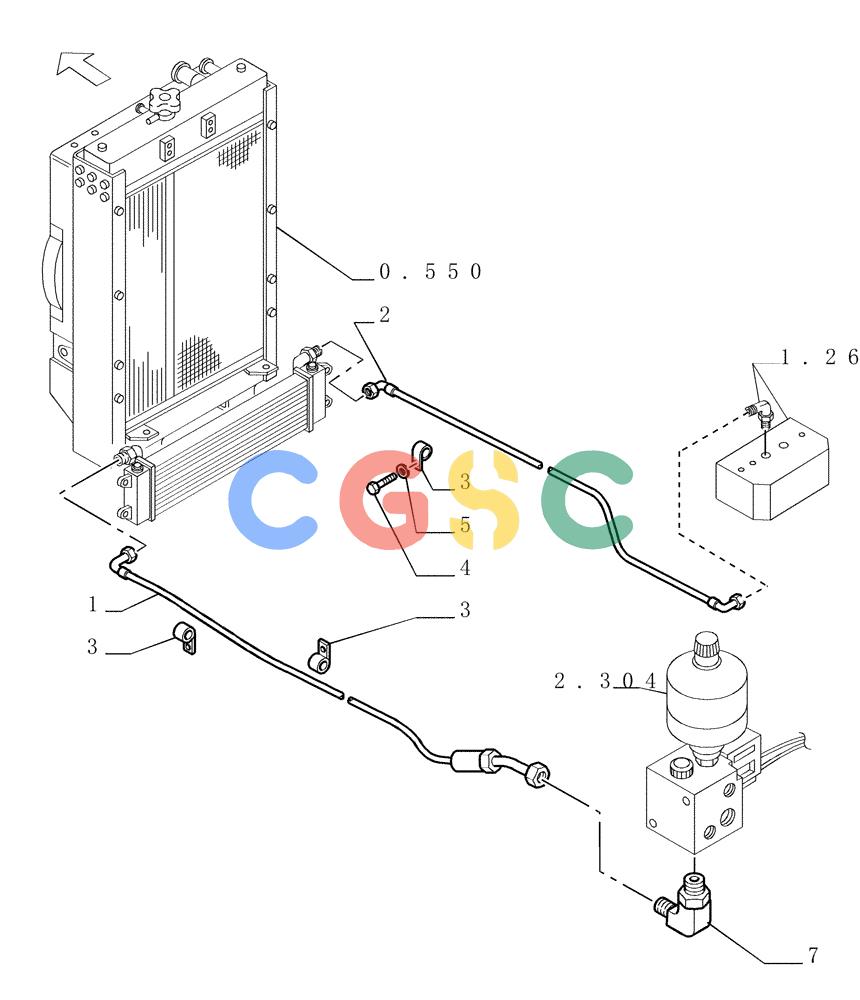

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.319[04]) - STEERING CONNECTING PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
249 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068056 | [1] | HOSE | LEC |
| 2. | 76068057 | [1] | FLEXIBLE HOSE | LEC |
| 3. | 10448790 | [2] | CLAMP,30mm, Coat, 9mm Bolt Hole, P Type | LEC30 |
| 4. | 16043431 | [2] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 5. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 7. | 79067024 | [1] | ELBOW | LEC20 a 90° |
