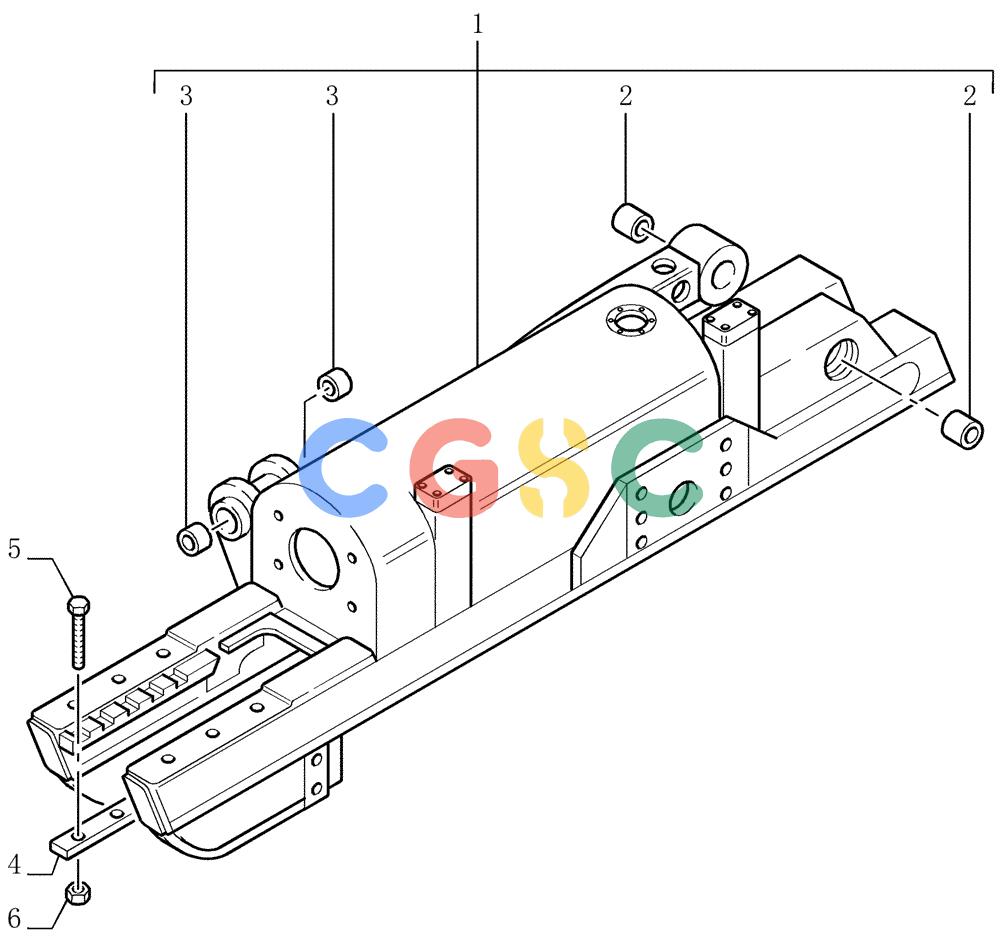

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.340[01]) - TRACK FRAME - VERSION (01-02) XLT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
846 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040976 | [1] | BODY | LECRIGHT - ASSY Superseded by part number: 76075264 |
| 1. | 76040975 | [1] | BODY | LECLEFT - ASSY Superseded by part number: 76075263 |
| 2. | 76073152 | [2] | BUSHING,120.46mm ID x 135.41mm OD x 90mm L | LEC |
| 3. | 8295620 | [2] | BUSHING,60.2mm ID x 72mm OD x 45mm L | LEC |
| 4. | 79031909 | [4] | SHIM | LEC |
| 5. | 79031906 | [12] | SCREW | LEC |
| 6. | 16105021 | [12] | LOCK NUT,M12 x 1.25, Cl 10 | TTF |
