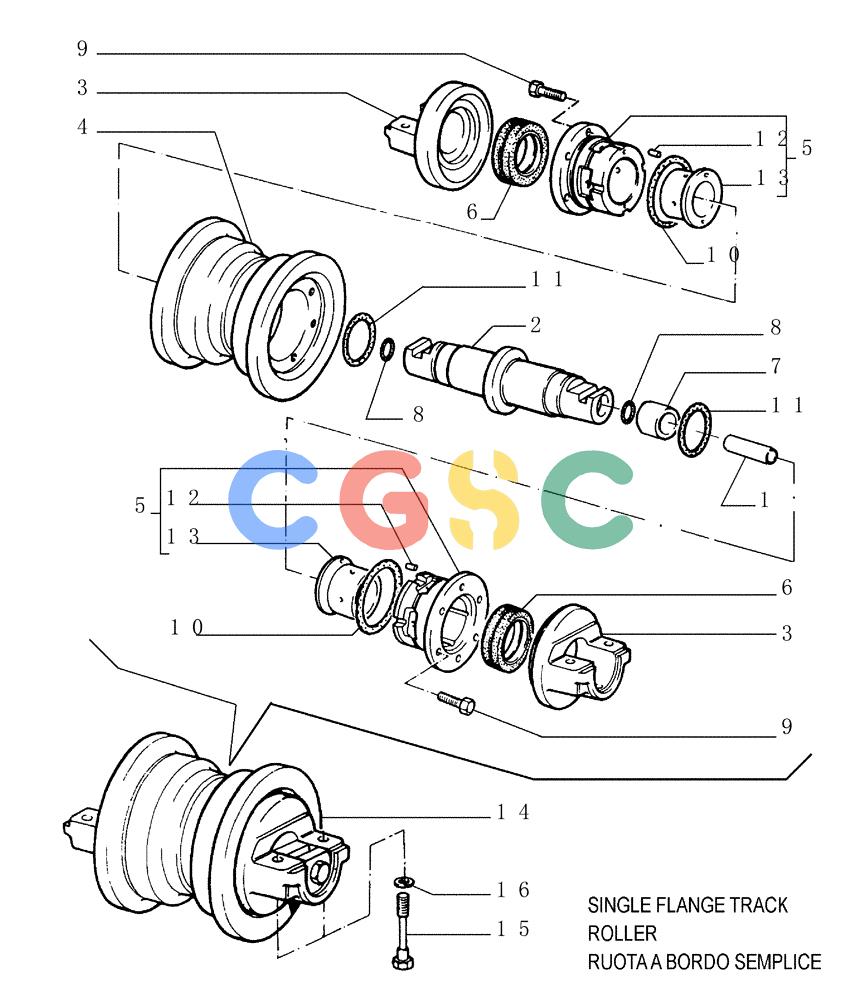

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.345[01]) - TRACK ROLLERS - VERSION (01-02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
335 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040936 | [1] | SPACER | TOR Superseded by part number: 76040943 |
| 2. | 76046515 | [1] | ROLLER SHAFT | LEC |
| 3. | 76046517 | [2] | SUPPORT | LEC |
| 4. | 76046523 | [1] | ROLLER | LEC |
| 5. | 76046516 | [2] | BEARING ASSY | LEC- ASSY |
| 6. | 76046518 | [2] | SEAL | LEC |
| 7. | 76046519 | [1] | PLUG | LEC Superseded by part number: 79082221 |
| 8. | 76046522 | [2] | LOCKING RING | LEC |
| 9. | 76046521 | [12] | SCREW | LEC Superseded by part number: 300134625 |
| 10. | 14466280 | [2] | O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro | LEC Superseded by part number: 455025 |
| 11. | 76046520 | [2] | O-RING | LEC |
| 12. | 76046526 | [1] | ROLL PIN | LEC Superseded by part number: 79103263 |
| 13. | 76046525 | [1] | BUSHING | LEC |
| 14. | 76040853 | [8] | TRACK ROLLER | LEC- ASSY Superseded by part number: 76090863 |
| 15. | 70922744 | [32] | SCREW | BHB Superseded by part number: 281074 |
| 16. | 70927382 | [32] | WASHER | LEC |
