纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.346[01]) - TRACK IDLER - WHEEL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
773 次

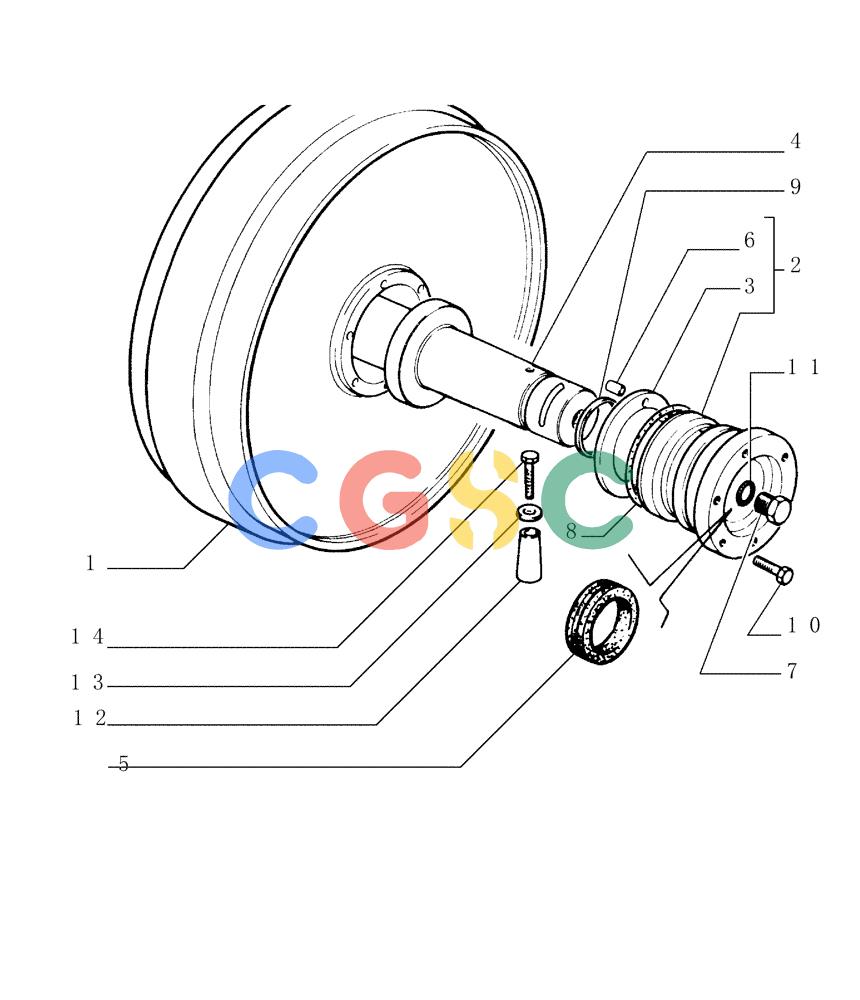

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76040882 | [1] | IDLER WHEEL | LECRH; ASSy: Incl Ref. 1-14; Also Incl. Figure 2.346 (2) Ref.1; 2; 9; 10; 11 |
| . . | 76040883 | [1] | IDLER WHEEL | LECLH; ASSy: Incl Ref. 1-14; Also Incl. Figure 2.346 (2) Ref.1; 2; 9; 10; 11 |
| 1. | 76040858 | [2] | IDLER WHEEL | LEC |
| 2. | 79103256 | [4] | HOUSING | LEC |
| 3. | 79103257 | [1] | BUSHING | LEC |
| 4. | 76029504 | [2] | SHAFT | LEC |
| 5. | 79103260 | [4] | SEAL,67mm ID x 94mm OD x 38mm Thk | LEC |
| 6. | 79103263 | [1] | ROLL PIN | LEC |
| 7. | 79019318 | [2] | PLUG | LEC |
| 8. | 14466280 | [4] | O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro | LEC Superseded by part number: 455025 |
| 9. | 14464680 | [4] | O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro | JES Superseded by part number: 14464681 |
| 10. | 14233731 | [24] | LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14233734 |
| 11. | 14457080 | [2] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | LEC Superseded by part number: 86637641 |
| 12. | 79005163 | [4] | PIN,26mm OD x 60mm L | LEC |
| 13. | 79014970 | [4] | WASHER | LEC |
