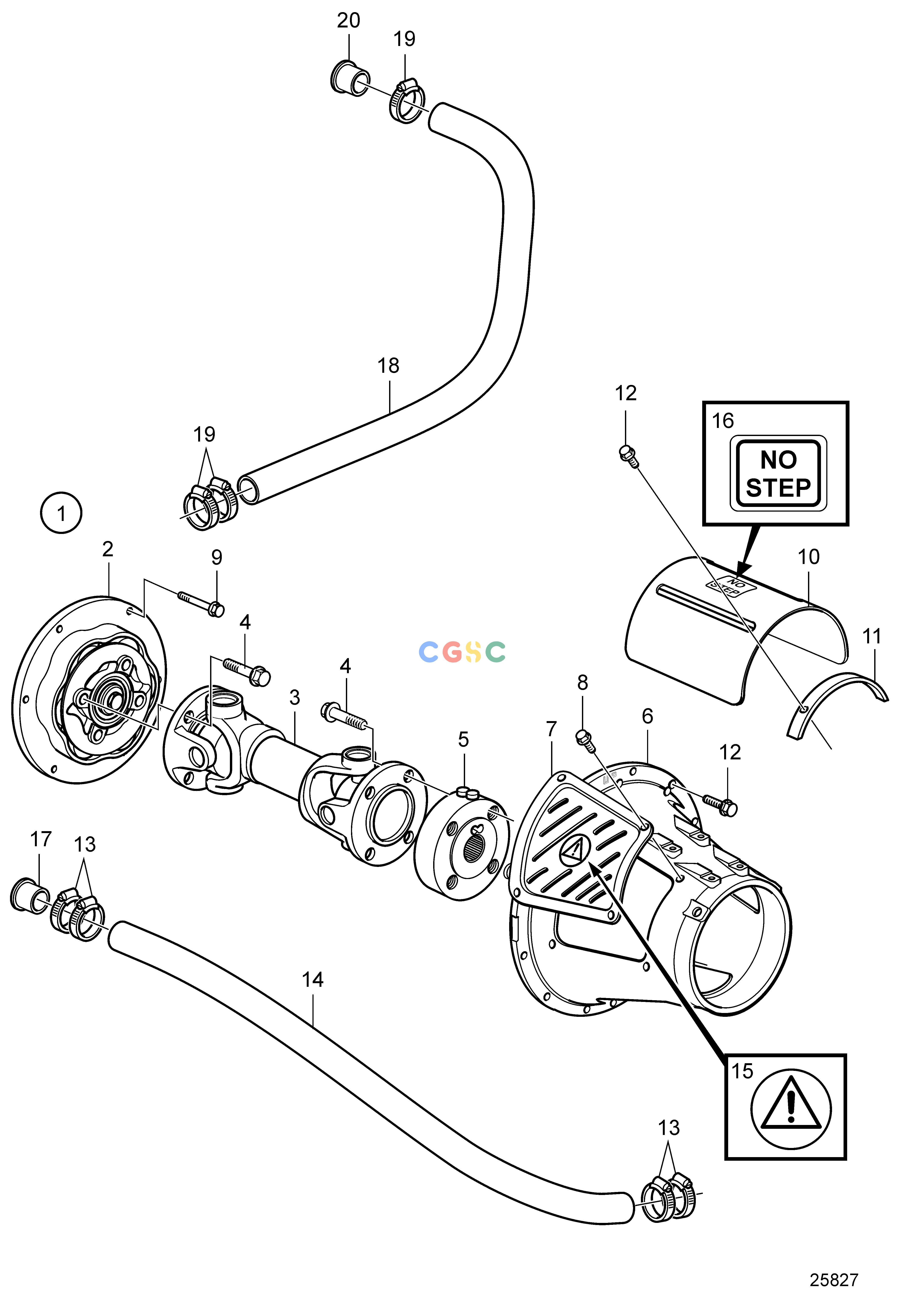

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-TransmissionsConnecting Components IPS A-F, Jack Shaft and Housing, Length 335mmEPC Volvo Penta Parts catalo
广数供应链运营团队, 14 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21111686
|
[1] |
Flexible coupling
|
Replaced by 21393521
|
| 1. |
21393521
|
[1] |
Flexible coupling
|
|
| 2. |
21509615
|
[1] |
Roller kit
|
Kit include 6pcs rubber rollers
|
| 3. |
3861048
|
[1] |
Propeller shaft
|
L=335mm
|
| 4. |
465826
|
[8] |
Flange screw
|
|
| 5. |
3862153
|
[1] |
Flange
|
|
| 6. |
3861047
|
[1] |
Protecting casing
|
Replaced by 21657788
|
| 6. |
21657788
|
[1] |
Protecting casing
|
|
| 7. |
3862871
|
[2] |
Protecting screen
|
|
| 8. |
968476
|
[8] |
Flange screw
|
L=13mm
|
| 9. |
965186
|
[8] |
Flange screw
|
L=50mm
|
| 10. |
3862515
|
[1] |
Protecting plate
|
|
| 11. |
3862869
|
[1] |
Clamping ring
|
|
| 12. |
946752
|
[12] |
Flange screw
|
L=35mm
|
| 13. |
961672
|
[4] |
Hose clamp
|
Std/Riser (3584038)
|
| 14. |
22336485
|
[1] |
Hose
|
|
| 15. |
3817024
|
[2] |
Decal
|
|
| 16. |
841144
|
[1] |
Decal
|
|
| 17. |
3883983
|
[1] |
Sleeve
|
Ratio 2.08:1
|
| 18. |
22336485
|
[1] |
Hose
|
L=780mm
|
| 19. |
961672
|
[3] |
Hose clamp
|
Ratio 1.94:1, Ratio 1.82:1
|
| 20. |
3819914
|
[1] |
Sleeve
|
Ratio 1.94:1, Ratio 1.82:1
|
