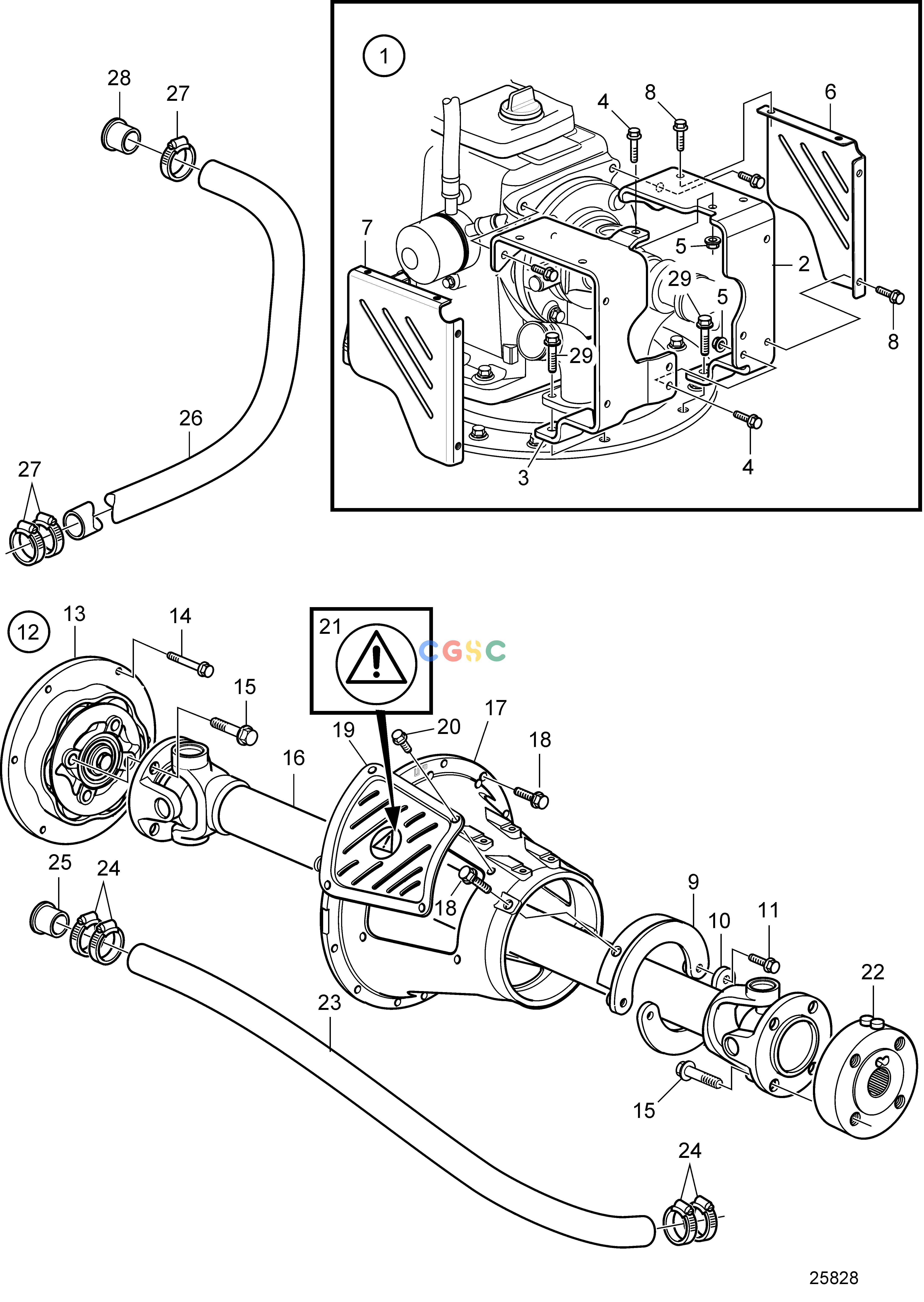

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-TransmissionsConnecting Components IPS A-F, Jack Shaft and Housing, Length 570-1750mmEPC Volvo Penta Parts c
广数供应链运营团队, 14 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3812835
|
[1] |
Bracket
|
Port
|
| 3. |
3812812
|
[1] |
Bracket
|
Starboard
|
| 4. |
946472
|
[5] |
Flange screw
|
|
| 5. |
971095
|
[3] |
Flange nut
|
|
| 6. |
21496784
|
[1] |
Cap
|
|
| 7. |
3812863
|
[1] |
Cap
|
|
| 8. |
946173
|
[8] |
Flange screw
|
|
| 9. |
3594012
|
[1] |
Safety catch
|
(3817570)
|
| 10. |
3817572
|
[1] |
Plate
|
|
| 11. |
946472
|
[2] |
Flange screw
|
|
| 12. |
21111686
|
[1] |
Flexible coupling
|
Replaced by 21393521
|
| 12. |
21393521
|
[1] |
Flexible coupling
|
|
| 13. |
21509615
|
[1] |
Roller kit
|
Kit include 6pcs rubber rollers
|
| 14. |
965186
|
[8] |
Flange screw
|
|
| 15. |
465826
|
[8] |
Flange screw
|
|
| 16. |
3818295
|
[1] |
Propeller shaft
|
L=570-650mm
|
| 16. |
3818293
|
[1] |
Propeller shaft
|
L=670-750mm
|
| 16. |
3818292
|
[1] |
Propeller shaft
|
L=770-850mm
|
| 16. |
3818291
|
[1] |
Propeller shaft
|
L=870-950mm
|
| 16. |
3818290
|
[1] |
Propeller shaft
|
L=970-1050mm
|
| 16. |
3818289
|
[1] |
Propeller shaft
|
L=1070-1150mm
|
| 16. |
3818288
|
[1] |
Propeller shaft
|
L=1170-1250mm
|
| 16. |
3817454
|
[1] |
Propeller shaft
|
L=1270-1350mm
|
| 16. |
3817453
|
[1] |
Propeller shaft
|
L=1370-1450mm
|
| 16. |
3817452
|
[1] |
Propeller shaft
|
L=1470-1550mm
|
| 16. |
3817451
|
[1] |
Propeller shaft
|
L=1570-1650mm
|
| 16. |
3817450
|
[1] |
Propeller shaft
|
L=1670-1750mm
|
| 17. |
21657788
|
[1] |
Protecting casing
|
|
| 18. |
946752
|
[12] |
Flange screw
|
M10x35mm
|
| 19. |
3862871
|
[2] |
Protecting screen
|
|
| 20. |
968476
|
[8] |
Flange screw
|
|
| 21. |
3817024
|
[2] |
Decal
|
|
| 22. |
3862153
|
[1] |
Flange
|
|
| 23. |
22336485
|
[1] |
Hose
|
|
| 24. |
961672
|
[4] |
Hose clamp
|
|
| 25. |
3883983
|
[1] |
Sleeve
|
Ratio 2.08:1
|
| 26. |
22336485
|
[1] |
Hose
|
Ratio 1.94:1, Ratio 1.82:1
|
| 27. |
961672
|
[3] |
Hose clamp
|
Ratio 1.94:1, Ratio 1.82:1
|
| 28. |
3819914
|
[1] |
Sleeve
|
Ratio 1.94:1, Ratio 1.82:1
|
| 29. |
|
|
|
|
