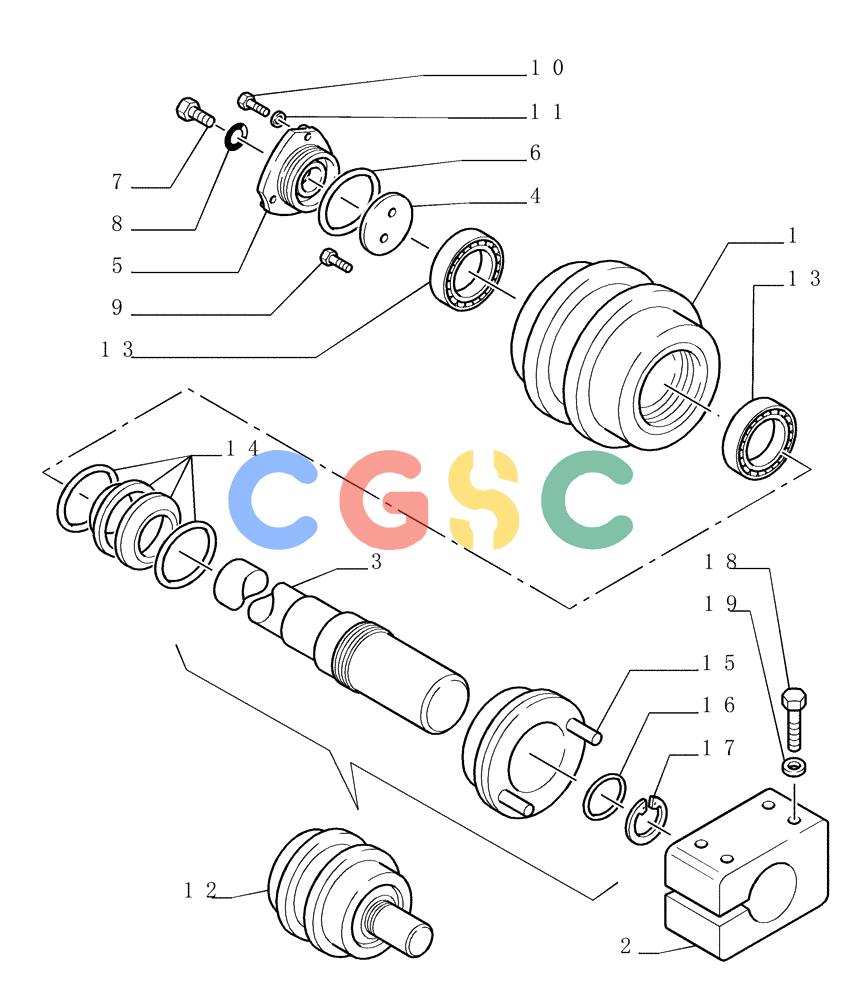

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.347[01]) - TRACK CARRIER ROLLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
265 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046527 | [1] | TRACK ROLLER | LEC |
| 2. | 76040885 | [4] | SUPPORT | LEC76040885=76069652+15985831, Serial Range: -C3930 Superseded by part number: 76069652, 15985831 |
| 2. | 76069652 | [4] | SUPPORT | LEC, Start Serial: D3930 |
| 3. | 76046528 | [1] | ROLLER SHAFT | LEC |
| 4. | 76046529 | [1] | THRUST WASHER | LEC |
| 5. | 76046531 | [1] | COVER | LEC |
| 6. | 76046532 | [1] | SEAL | LEC Superseded by part number: 79083927 |
| 7. | 76046539 | [1] | PLUG | LEC Superseded by part number: 70689291 |
| 8. | 76046540 | [1] | SEAL | LEC Superseded by part number: 70923847 |
| 9. | 76046530 | [2] | SCREW | LEC Superseded by part number: 1467703 |
| 10. | 76046533 | [3] | SCREW | LEC Superseded by part number: 76590946 |
| 11. | 76046534 | [3] | WASHER | LEC |
| 12. | 76040857 | [4] | TRACK ROLLER | LEC- ASSY Superseded by part number: 87702981 |
| 13. | 76046535 | [2] | BEARING | LEC |
| 14. | 76046518 | [1] | SEAL | LEC |
| 15. | 76046536 | [1] | FLANGE | LEC |
| 16. | 76046537 | [1] | SEAL,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro | LEC |
| 17. | 76046538 | [1] | LOCKING RING | LEC |
| 18. | 15985431 | [16] | BOLT,Hex, M18 x 1.5 x 110mm, Cl 10.9 | LEC, Serial Range: -C3930 |
| 18. | 15985831 | [16] | BOLT,Hex, M18 x 1.5 x 130mm, Cl 10.9 | LEC, Start Serial: D3930 |
| 19. | 14497031 | [16] | WASHER,M18 x 34 | LEC |
