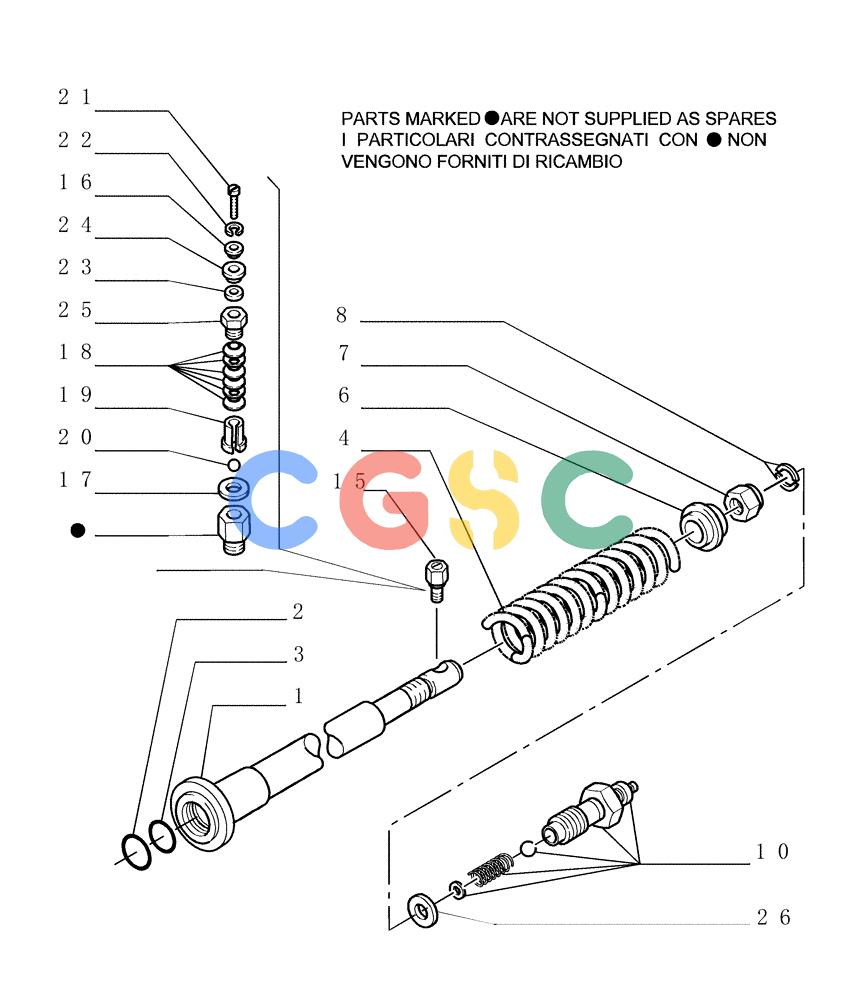

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.346[04]) - TRACK IDLER - CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040866 | [2] | CYLINDER | LEC Superseded by part number: 76093916, 76093915, 76093913 |
| 2. | 8295066 | [2] | SEAL | LEC |
| 3. | 76008535 | [2] | SEAL,75mm ID x 90mm OD x 14mm Thk | LECSEALRING |
| 4. | 76040886 | [2] | SPRING | LEC |
| 6. | 76040869 | [2] | DISC | LEC Superseded by part number: 76093915, 76093916 |
| 7. | 76040867 | [2] | NUT | LEC |
| 8. | 76040871 | [2] | THRUST HALF-RING | LEC |
| 10. | 71401346 | [2] | LUBE NIPPLE | LEC- ASSY Superseded by part number: 2929113 |
| 15. | 76008538 | [2] | SAFETY VALVE | LEC- ASSY |
| 16. | 594634 | [1] | WASHER | LEC |
| 17. | 594640 | [1] | SHIM,0.1mm Thk | LEC |
| 17. | 79009581 | [1] | SHIM,0.2mm Thk | LEC |
| 17. | 79009582 | [1] | SHIM,0.5mm Thk | LEC |
| 18. | 594638 | [8] | SPRING | LEC |
| 19. | 594637 | [1] | PLUNGER | LEC |
| 20. | 20063470 | [1] | BALL | TTF7,938 Superseded by part number: 86642304 |
| 21. | 10389511 | [1] | SCREW,Sl Pan Hd, M5 x 14mm, Cl 5.8 | LEC Superseded by part number: 10389514 |
| 22. | 11195471 | [1] | LOCK WASHER | LEC5,1X1,1 Superseded by part number: 10569179 |
| 23. | 12638101 | [1] | WASHER,5.2mm ID x 14mm OD x 1mm Thk | BHB Superseded by part number: |
| 24. | 594633 | [1] | CAP | LEC |
| 25. | 79002121 | [1] | PACKING NUT | LEC |
| 26. | 71306502 | [2] | WASHER | LEC Superseded by part number: 45481993 |
