纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.357[01]) - SUSPENSION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
555 次

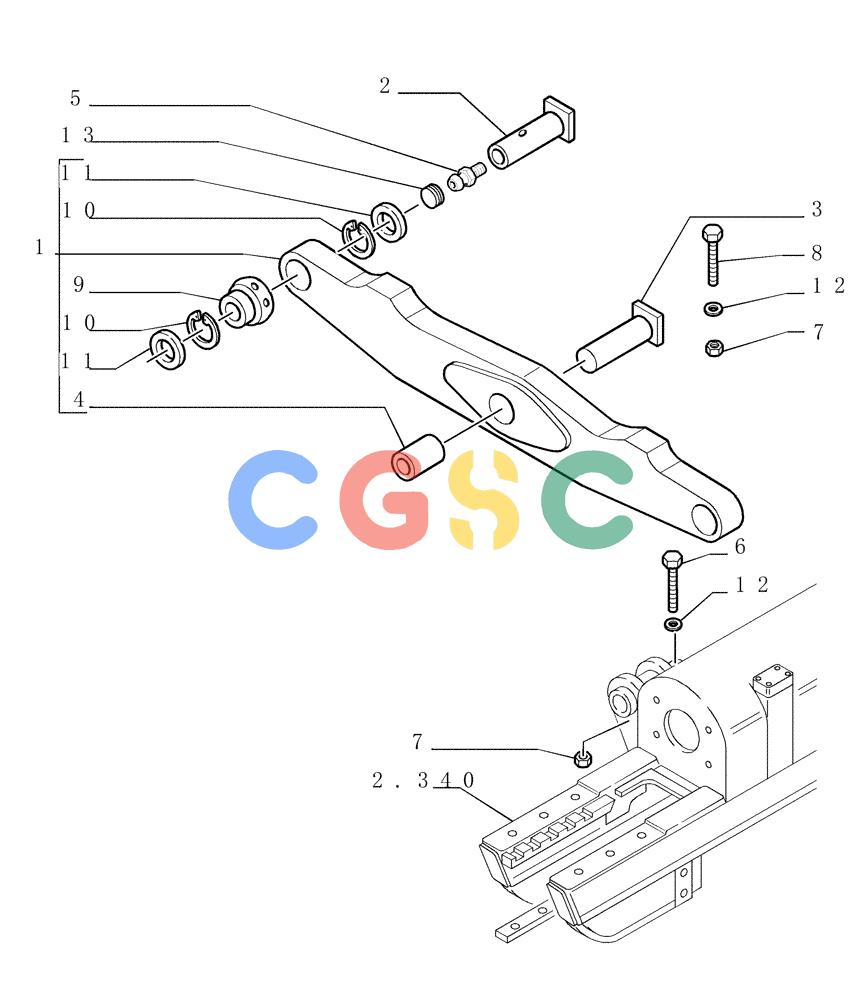

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040888 | [1] | CROSSRAIL | LEC- ASSY Superseded by part number: 76095191 |
| 2. | 76046765 | [2] | PIN | LEC |
| 3. | 76040890 | [1] | PIN,70mm OD x 290mm L | LEC |
| 4. | 76040889 | [1] | BUSHING | LEC |
| 5. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 6. | 11114431 | [2] | BOLT,Hex, M12 x 110, 10.9 | LEC Superseded by part number: 9501756 |
| 7. | 12577521 | [5] | NUT,M12 x 1.75 | LEC |
| 8. | 11115031 | [3] | BOLT,Hex, M12 x 140, 10.9 | LEC Superseded by part number: 1768807 |
| 9. | 76041311 | [2] | SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W | LEC |
| 10. | 11062476 | [4] | SNAP RING,M90, Int | TTF Superseded by part number: |
| 11. | 76043711 | [4] | SEAL,60mm ID x 112.3mm OD x 11.1mm Thk | LEC |
| 12. | 14496731 | [5] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 13. | 79089646 | [2] | PLUG | LEC22 |
