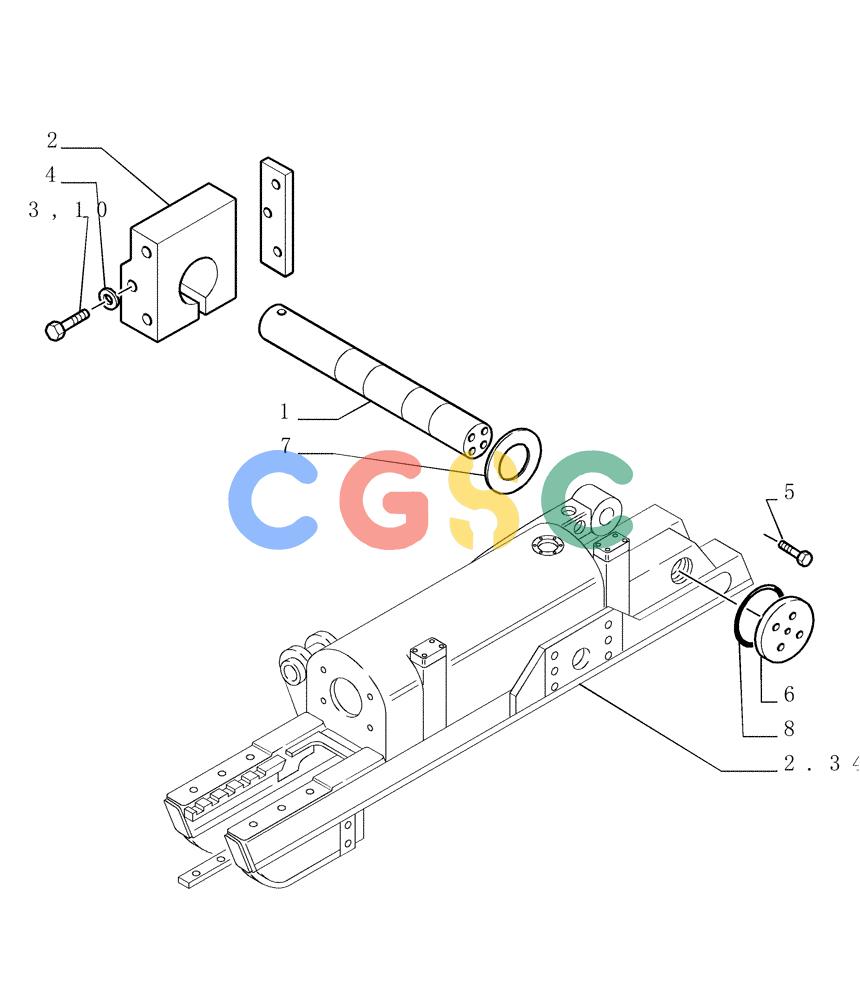

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (2.357[02]) - SUSPENSION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
574 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040879 | [2] | SHAFT | LEC Superseded by part number: 76080874 |
| 2. | 76046802 | [1] | SUPPORT | LEC- RIGHT Superseded by part number: 76072356 |
| 2. | 76040880 | [1] | SUPPORT | LEC- LEFT Superseded by part number: 76072355 |
| 3. | 15999131 | [6] | BOLT,Hex, M24 x 2 x 200mm, Cl 10.9 | LEC Superseded by part number: 15999130 |
| 4. | 14497331 | [6] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24X44 Superseded by part number: 86511328 |
| 5. | 14279131 | [8] | SCREW,M20 x 1.5 x 40mm | LEC20X1,5X40 |
| 6. | 76040877 | [2] | DISC | LEC |
| 7. | 76066184 | [2] | SPACER,121mm ID x 180mm OD x 10mm L | LEC |
| 8. | 14474080 | [2] | O-RING,139.1mm ID x 5.33mm Width | LEC(M139.1 ID x 5.33 Thk) |
| 9. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
