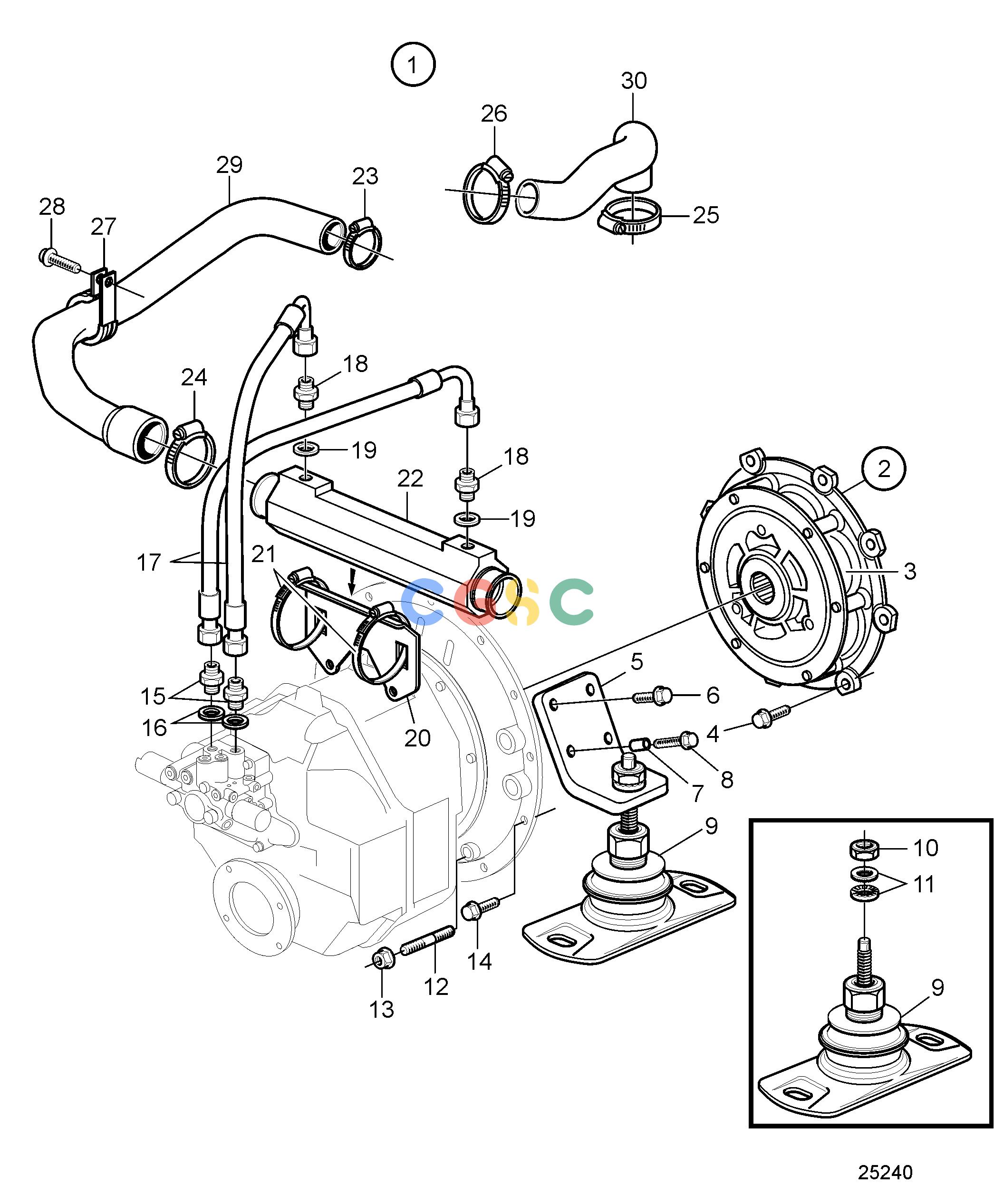

沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-TransmissionsConnecting Kit Reverse Gear HS80AE. SN2004017199-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
399 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3583843
|
[1] |
Flexible coupling
|
|
| 3. |
21509613
|
[1] |
Roller kit
|
Kit include 4pcs rubber rollers
|
| 4. |
965185
|
[8] |
Flange screw
|
|
| 5. |
3583620
|
[1] |
Engine bracket
|
|
| 6. |
984709
|
[2] |
Flange screw
|
|
| 7. |
1678297
|
[2] |
Spacer sleeve
|
|
| 8. |
984956
|
[2] |
Flange screw
|
|
| 9. |
3595043
|
[4] |
Rubber cushion
|
|
| 10. |
955786
|
[1] |
Hexagon nut
|
|
| 11. |
847766
|
[1] |
Lock washer
|
|
| 12. |
953067
|
[2] |
Stud
|
|
| 13. |
971095
|
[2] |
Flange nut
|
|
| 14. |
946752
|
[10] |
Flange screw
|
|
| 15. |
941750
|
[2] |
Nipple
|
|
| 16. |
11978
|
[2] |
Washer
|
|
| 17. |
3584428
|
[2] |
Hose
|
|
| 18. |
963948
|
[2] |
Nipple
|
|
| 19. |
976930
|
[2] |
Gasket
|
|
| 20. |
3584440
|
[1] |
Bracket
|
|
| 21. |
943481
|
[2] |
Hose clamp
|
|
| 22. |
3584435
|
[1] |
Oil cooler
|
|
| 23. |
961671
|
[1] |
Hose clamp
|
|
| 24. |
961672
|
[1] |
Hose clamp
|
|
| 25. |
943478
|
[1] |
Hose clamp
|
|
| 26. |
943479
|
[1] |
Hose clamp
|
|
| 27. |
969354
|
[1] |
Clamp
|
|
| 28. |
946440
|
[1] |
Flange screw
|
|
| 29. |
3889729
|
[1] |
Hose
|
|
| 30. |
3888922
|
[1] |
Hose
|
|
