沃尔沃零件查询D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-TransmissionsExhaust Pipe and Cooling Water Pipe DPH/DPR Drive UniEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
937 次

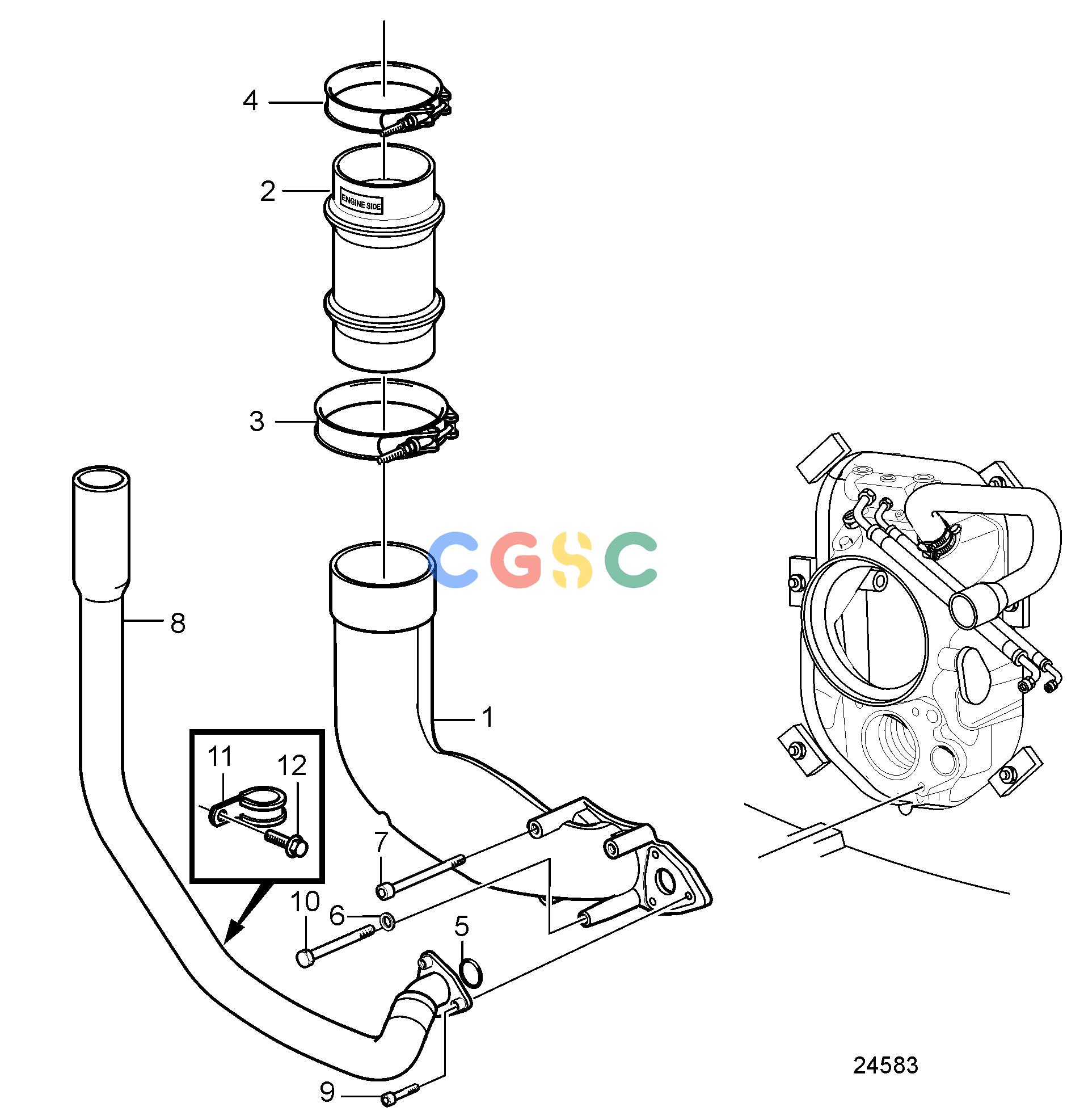

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
40005584
|
[1] |
Exhaust pipe
|
|
| 2. |
3584167
|
[1] |
Exhaust hose
|
For D4 engines.
|
| 2. |
3584168
|
[1] |
Exhaust hose
|
For D6 engines.
|
| 3. |
3817484
|
[1] |
Hose clamp
|
For exhaust pipe without plastic sleeve.
|
| 3. |
3817485
|
[1] |
Hose clamp
|
For exhaust pipe with plastic sleeve.
|
| 4. |
3817484
|
[1] |
Hose clamp
|
For D4 engines.
|
| 4. |
3817486
|
[1] |
Hose clamp
|
For D6 engines.
|
| 5. |
969415
|
[1] |
O-ring
|
|
| 6. |
984391
|
[4] |
Washer
|
|
| 7. |
984367
|
[2] |
Hexagon screw
|
L=70mm
|
| 8. |
3587184
|
[1] |
Hose assembly
|
|
| 9. |
984257
|
[3] |
Six point socket scr
|
L=25mm
|
| 10. |
984700
|
[2] |
Hexagon screw
|
L=90mm
|
| 11. |
984474
|
[1] |
Clamp
|
|
| 12. |
948746
|
[1] |
Flange screw
|
|
