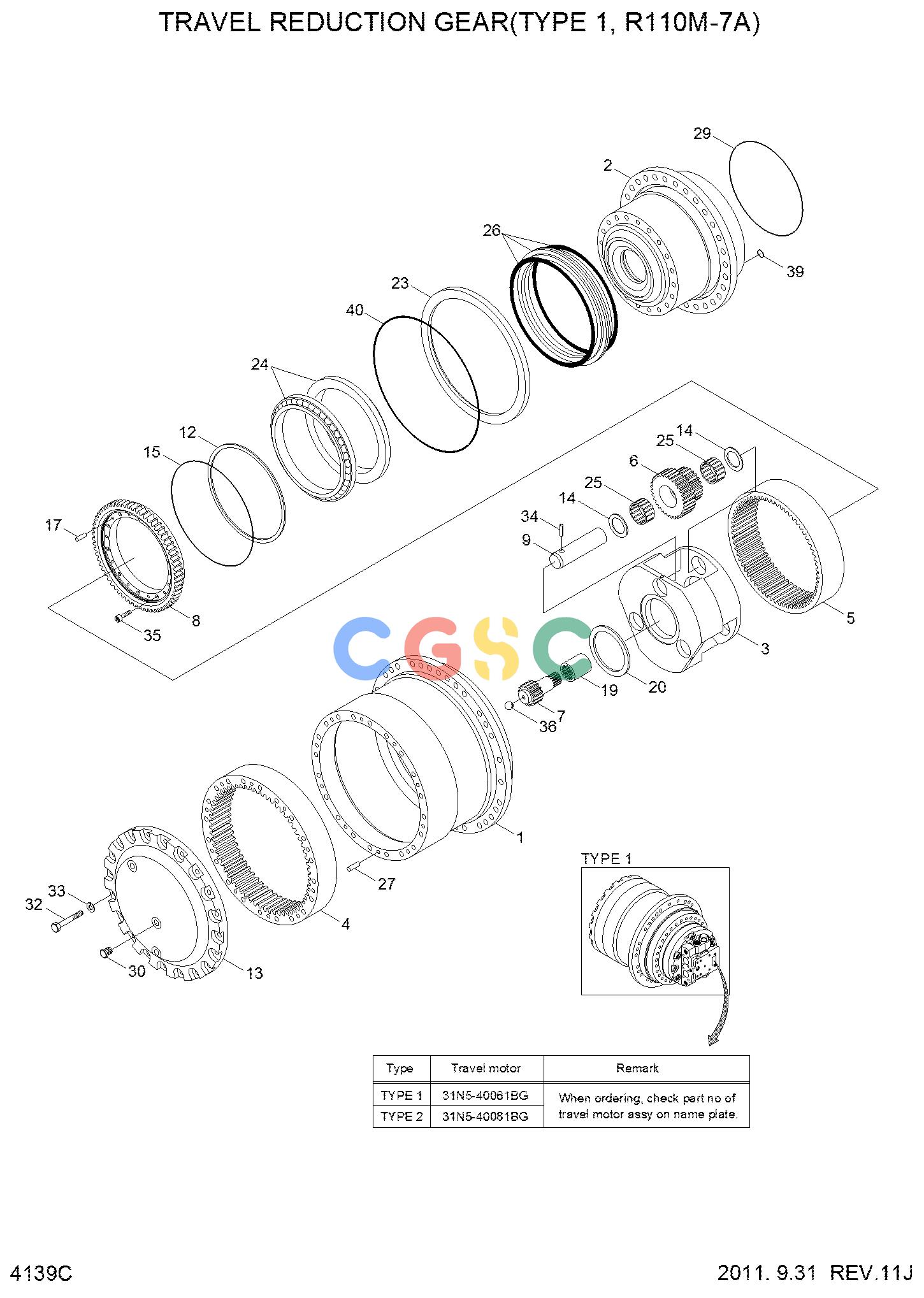

现代零件查询R110-7A TRAVEL REDUCTION GEAR(TYPE 1, R110M-7A)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
426 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRAVEL MOTOR ASSY
|
|
| -7. |
XKAH-00901
|
[1] |
T/REDUCTION GEAR
|
|
| -71. |
XKAH-00902
|
[1] |
HUB ASSY
|
|
| N1. |
XKAH-00903
|
[1] |
HUB
|
|
| 4. |
XKAH-00904
|
[1] |
RING GEAR(A)
|
|
| 27. |
XKAH-00431
|
[10] |
PIN-PARALLEL
|
|
| -72. |
XKAH-00905
|
[1] |
SPINDLE ASSY
|
|
| N2. |
XKAH-00906
|
[1] |
SPINDLE
|
|
| 8. |
XKAH-00907
|
[1] |
COUPLING GEAR
|
|
| 35. |
XKAH-00428
|
[10] |
BOLT-SOCKET
|
|
| 17. |
XKAH-00437
|
[10] |
PIN
|
|
| -73. |
XKAH-00908
|
[1] |
CARRIER ASSY
|
|
| 3. |
XKAH-00909
|
[1] |
CARRIER
|
|
| 6. |
XKAH-00910
|
[3] |
CLUSTER GEAR
|
|
| 9. |
XKAH-00911
|
[3] |
SHAFT
|
|
| 14. |
XKAH-00912
|
[6] |
COLLAR-THRUST
|
|
| 25. |
XKAH-00913
|
[6] |
BEARING-NEEDLE
|
|
| 5. |
XKAH-00914
|
[1] |
RING GEAR(B)
|
|
| 7. |
XKAH-00445
|
[1] |
GEAR-SUN
|
|
| 12. |
XKAH-00442
|
[1] |
PIECE-DISTENCE
|
|
| 13. |
XKAH-00915
|
[1] |
COVER
|
|
| 15. |
XKAH-00439
|
[1] |
RING
|
|
| 19. |
XKAH-00022
|
[1] |
COUPLING
|
|
| 20. |
XKAH-00436
|
[2] |
PLATE-THRUST
|
|
| 23. |
XKAH-00435
|
[1] |
SEAL-RING
|
|
| 24. |
XKAH-00434
|
[2] |
BEARING-BALL
|
|
| K26. |
XKAH-00916
|
[2] |
SEAL-FLOATING
|
|
| K29. |
XKAH-00028
|
[1] |
O-RING
|
|
| 30. |
XKAH-00338
|
[3] |
PLUG-PT
|
|
| 32. |
XKAH-00430
|
[20] |
BOLT-HEX
|
|
| 33. |
XKAH-00336
|
[20] |
WASHER-SPRING
|
|
| 34. |
XKAH-00429
|
[3] |
PIN-PARALLEL
|
|
| 36. |
XKAH-00033
|
[1] |
BALL-STEEL
|
|
| K39. |
XKAH-00194
|
[2] |
O-RING
|
|
| K40. |
XKAH-00427
|
[1] |
O-RING
|
|
| K. |
XKAH-01074
|
[1] |
SEAL KIT
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
