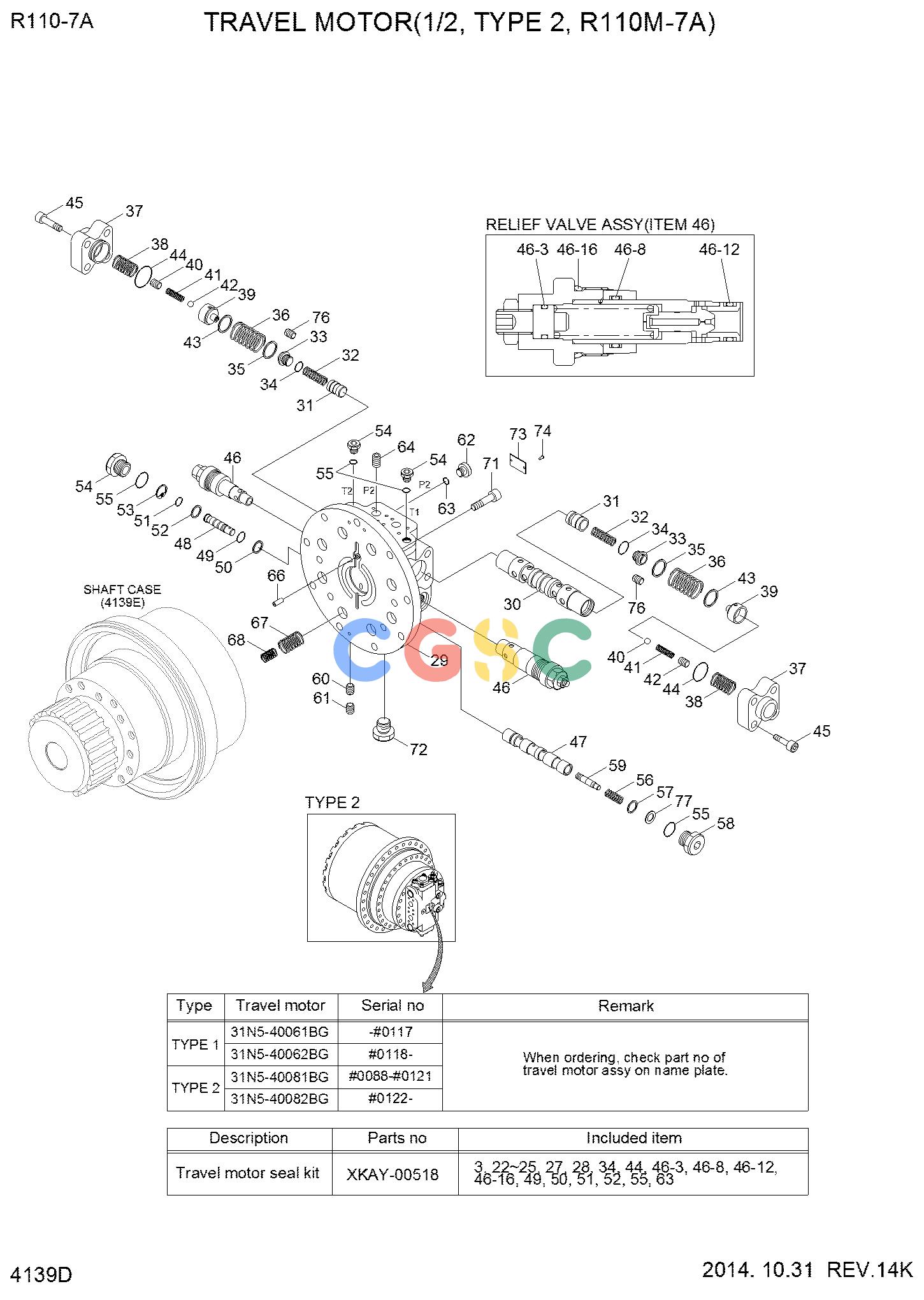

现代零件查询R110-7A TRAVEL MOTOR(1/2, TYPE 2, R110M-7A)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N5-40081BG
|
[1] |
TRAVEL MOTOR ASSY
|
|
| . |
31N5-40082BG
|
[1] |
TRAVEL MOTOR ASSY
|
|
| -1. |
31N5-40071BG
|
[1] |
TRAVEL MOTOR
|
|
| 29. |
XKAY-00475
|
[1] |
COVER-REAR
|
|
| C. |
XKAY-00476
|
[1] |
SPOOL KIT
|
|
| N30. |
XKAY-00477
|
[1] |
SPOOL
|
|
| N31. |
XKAY-00478
|
[2] |
CHECK
|
|
| N32. |
XKAY-00479
|
[2] |
SPRING
|
|
| N33. |
XKAY-00480
|
[2] |
PLUG
|
|
| 34. |
XKAY-00481
|
[2] |
O-RING
|
|
| 35. |
XKAY-00482
|
[2] |
SEAT-SPRING
|
|
| 36. |
XKAY-00483
|
[2] |
SPRING
|
|
| 37. |
XKAY-00484
|
[2] |
COVER
|
|
| 38. |
XKAY-00485
|
[2] |
SPRING
|
|
| 39. |
XKAY-00486
|
[2] |
SPOOL
|
|
| 40. |
XKAY-00487
|
[2] |
BALL-STEEL
|
|
| 41. |
XKAY-00488
|
[2] |
SPRING
|
|
| 42. |
XKAY-00489
|
[2] |
PLUG
|
|
| 43. |
XKAY-00490
|
[2] |
SEAT-SPRING
|
|
| K44. |
XKAY-00825
|
[2] |
O-RING
|
|
| 45. |
XKAY-00492
|
[8] |
BOLT-WRENCH
|
|
| 46. |
XKAY-00493
|
[2] |
RELIEF VALVE ASSY
|
|
| 46-3. |
XKAY-00670
|
[1] |
O-RING
|
|
| 46-8. |
XKAY-00669
|
[1] |
O-RING
|
|
| 46-12. |
XKAY-00671
|
[1] |
O-RING
|
|
| 46-16. |
XKAY-00668
|
[1] |
O-RING
|
|
| 47. |
XKAY-00494
|
[1] |
SPOOL
|
|
| 48. |
XKAY-00826
|
[1] |
GUIDE
|
|
| K49. |
XKAY-00827
|
[1] |
O-RING
|
|
| K50. |
XKAY-00497
|
[1] |
RING-BACK UP
|
|
| K51. |
XKAY-00828
|
[1] |
O-RING
|
|
| K52. |
XKAY-00499
|
[1] |
RING-BACK UP
|
|
| 53. |
XKAY-00500
|
[1] |
RING-SNAP
|
|
| 54. |
XKAY-00501
|
[3] |
PLUG
|
|
| K55. |
XKAY-00247
|
[4] |
O-RING
|
|
| 56. |
XKAY-00502
|
[1] |
SPRING
|
|
| 57. |
XKAY-00503
|
[1] |
SEAT-SPRING
|
|
| 58. |
XKAY-00504
|
[1] |
PLUG
|
|
| 59. |
XKAY-00505
|
[1] |
SPOOL
|
|
| 60. |
XKAY-00506
|
[2] |
ORIFICE
|
|
| 61. |
XKAY-00507
|
[2] |
ORIFICE
|
|
| 62. |
XKAY-00508
|
[3] |
PLUG
|
|
| K63. |
XKAY-00256
|
[3] |
O-RING
|
|
| 64. |
XKAY-00032
|
[1] |
PLUG
|
|
| 66. |
XKAY-00510
|
[1] |
PIN
|
|
| 67. |
XKAY-00511
|
[8] |
SPRING
|
|
| 68. |
XKAY-00512
|
[8] |
SPRING
|
|
| 71. |
XKAY-00385
|
[16] |
BOLT-WRENCH
|
|
| 72. |
XKAY-00515
|
[1] |
PLUG
|
|
| 73. |
XKAY-00830
|
[1] |
NAME PLATE
|
|
| 74. |
XKAY-00517
|
[2] |
RIVET
|
|
| 76. |
XKAY-00519
|
[2] |
ORIFICE
|
|
| 77. |
XKAY-01097
|
[AR] |
SHIM
|
|
| -2. |
@
|
[2] |
T/REDUCTION GEAR
|
|
| K. |
XKAY-00518
|
[1] |
SEAL KIT
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
