纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.435[01]) - EQUIPMENT PUMP - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
621 次

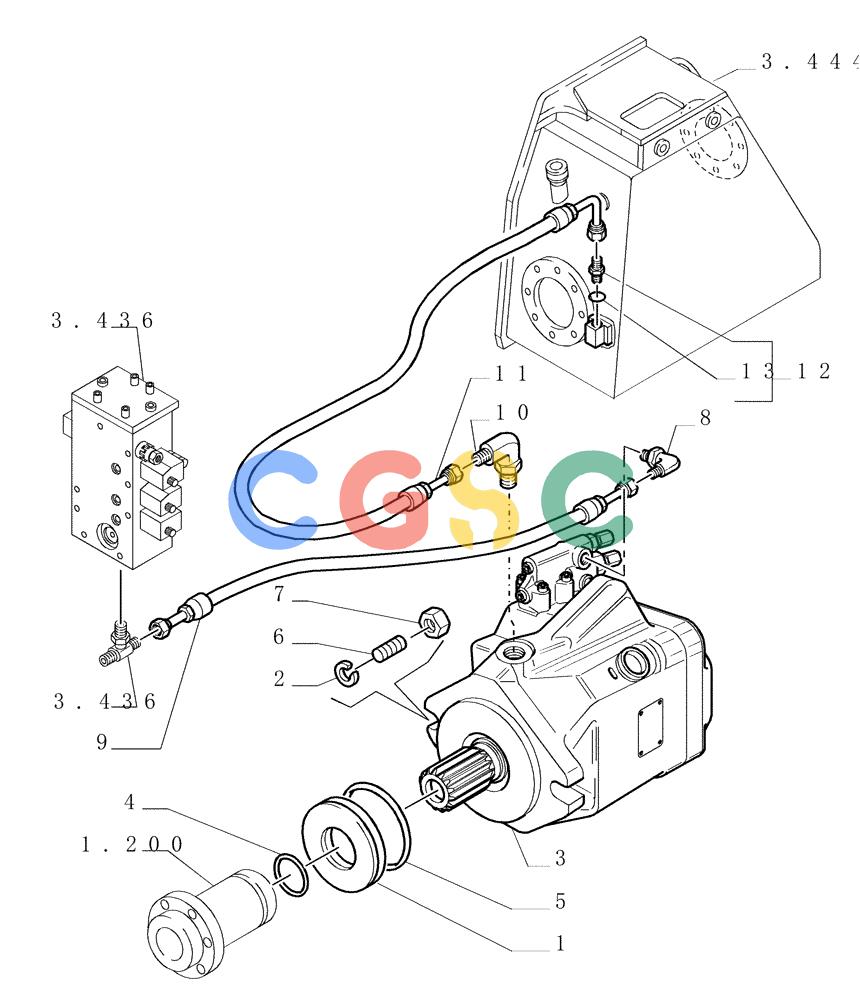

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069238 | [1] | RING | LEC |
| 2. | 76036375 | [2] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | LEC |
| 3. | 76069634 | [1] | HYDRAULIC PUMP,87 CC | LECREXROTH |
| 4. | 14466881 | [1] | O-RING,126.59mm ID x 5.262" OD x 3.53mm | LEC Superseded by part number: 14466981 |
| 5. | 14467681 | [1] | O-RING,152mm ID x 6.262" OD x 3.53mm | LEC |
| 6. | 11800530 | [2] | STUD | LEC16X1,5X40 |
| 7. | 12164121 | [2] | NUT,M16 x 1.5, Cl 10 | TTF |
| 8. | 71444084 | [1] | HYD CONNECTOR | LEC Superseded by part number: 71444083 |
| 9. | 76069356 | [1] | FLEXIBLE HOSE | LECL=900 |
| 10. | 76069632 | [1] | HYD CONNECTOR | LEC90° 1"1/16 |
| 11. | 76069631 | [1] | TUBE,1600 mm Length | LECL=1550 |
| 12. | 79066943 | [1] | ELBOW | LECASSY M22-7/8"-14 |
| 13. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
