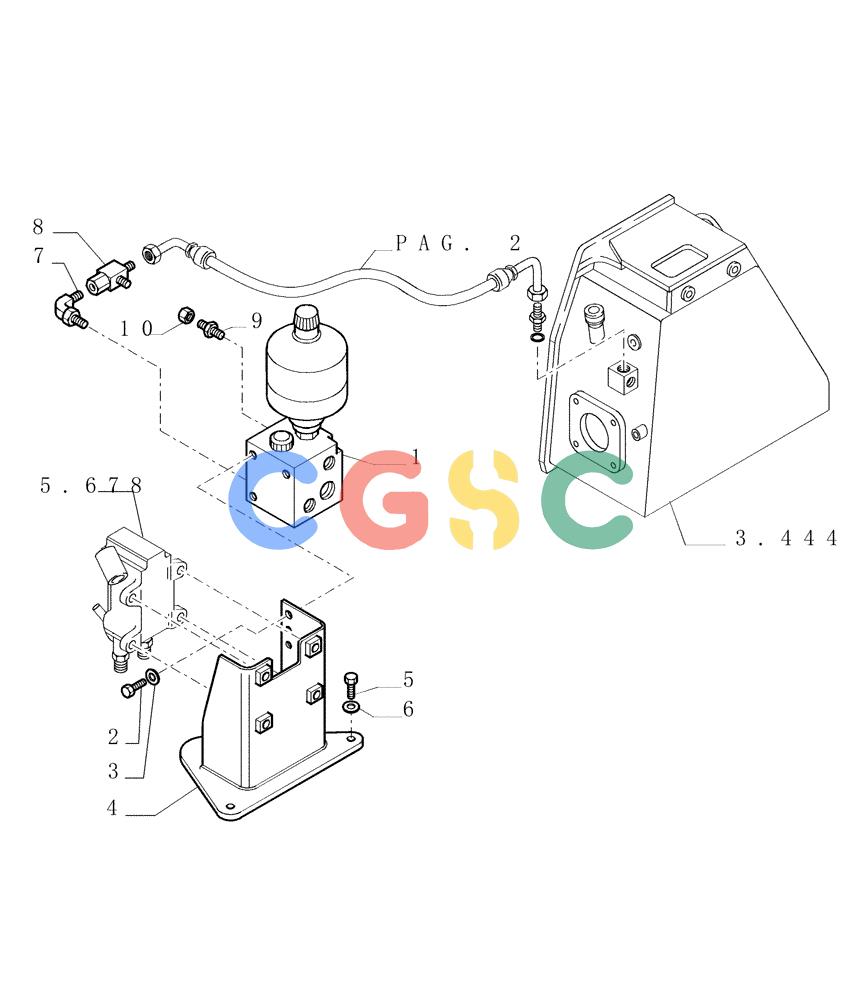

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.434[03]) - HYDRAULIC SYSTEM PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76073235 | [1] | HYDRAULIC VALVE | LEC- ASSY SEE PAG.6 |
| 2. | 16043431 | [2] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 3. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 4. | 76069267 | [1] | SUPPORT | LEC |
| 5. | 11106231 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 6. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 7. | 71311812 | [1] | HYD CONNECTOR | LEC90° M18-3/4" |
| 8. | 71313708 | [1] | TEE | LECaT 3/4" Superseded by part number: 86511870 |
| 9. | 71444084 | [1] | HYD CONNECTOR | LECM14-7/16" Superseded by part number: 71444083 |
| 10. | 70921467 | [1] | PLUG | LEC7/16" Superseded by part number: 86511869 |
