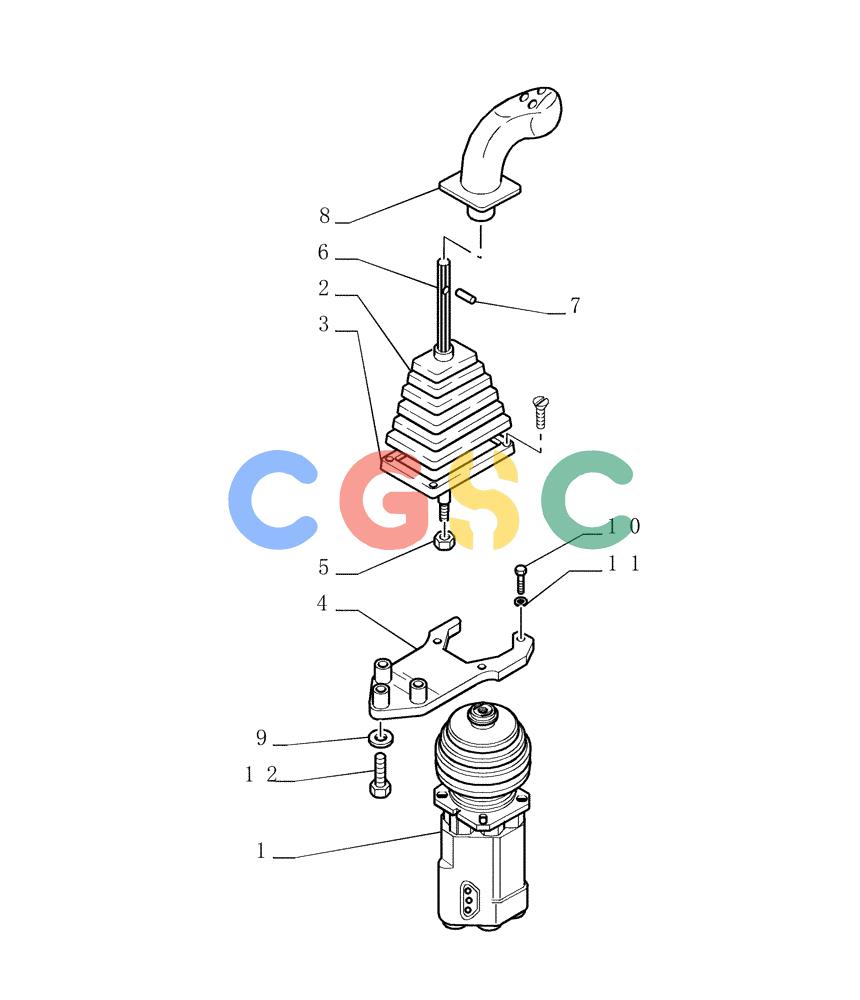

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.437[01]) - CONTROL VALVE LINKAGE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
863 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068325 | [1] | MANIPULATOR | LEC- EQUIPMENT CONTROL ASSY Superseded by part number: 76069635 |
| 1. | 76069635 | [1] | MANIPULATOR | LEC- EQUIPMENT CONTROL (02-03), SEE PAG.3 |
| 2. | 76053968 | [1] | BOOT | LEC |
| 3. | 76053972 | [1] | RETAINING PLATE | LEC |
| 4. | 76069623 | [1] | SUPPORT | LEC- EQUIPMENT CONTROL |
| 5. | 11702921 | [1] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 6. | 76054722 | [1] | ROD | LEC |
| 7. | 14601271 | [1] | ROLL PIN | LEC5X28 Superseded by part number: 14601270 |
| 8. | 76054507 | [1] | HANDLE GRIP | LEC |
| 9. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 10. | 14305331 | [1] | HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14305324 |
| 11. | 14496431 | [1] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 12. | 11107431 | [3] | SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9 | LEC Superseded by part number: 86508619 |
