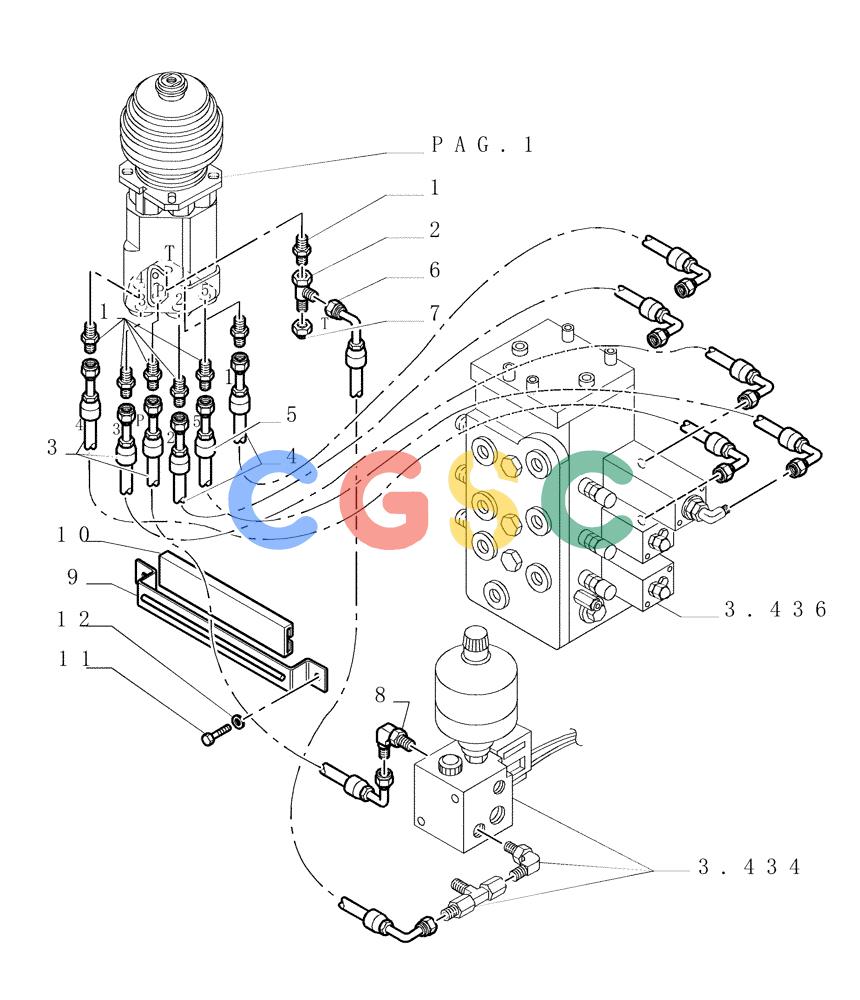

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.437[02]) - CONTROL VALVE LINKAGE - PIPING - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
993 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79095838 | [7] | HYD CONNECTOR | LEC1/4G. 9/16"-18 |
| 2. | 79054269 | [1] | TEE | LEC |
| 3. | 76069514 | [3] | FLEXIBLE HOSE | LECL=1920 |
| 4. | 76069513 | [2] | HYDRAULIC HOSE | LECL=1700 |
| 5. | 76069515 | [1] | HYDRAULIC HOSE | LECL=2000 |
| 6. | 76069512 | [1] | FLEXIBLE HOSE | LECL=1950 |
| 7. | 70919552 | [1] | CAP | BHB9/16" Superseded by part number: 574342 |
| 8. | 79054402 | [1] | ELBOW | LEC Superseded by part number: 76344 |
| 9. | 76069516 | [1] | BRACKET | LEC |
| 10. | 76069517 | [1] | FLEXIBLE SHEATH | LEC |
| 11. | 10902131 | [2] | SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd | LEC |
| 12. | 12648131 | [2] | WASHER,6.15mm ID x 15mm OD x 4mm Thk | LEC |
