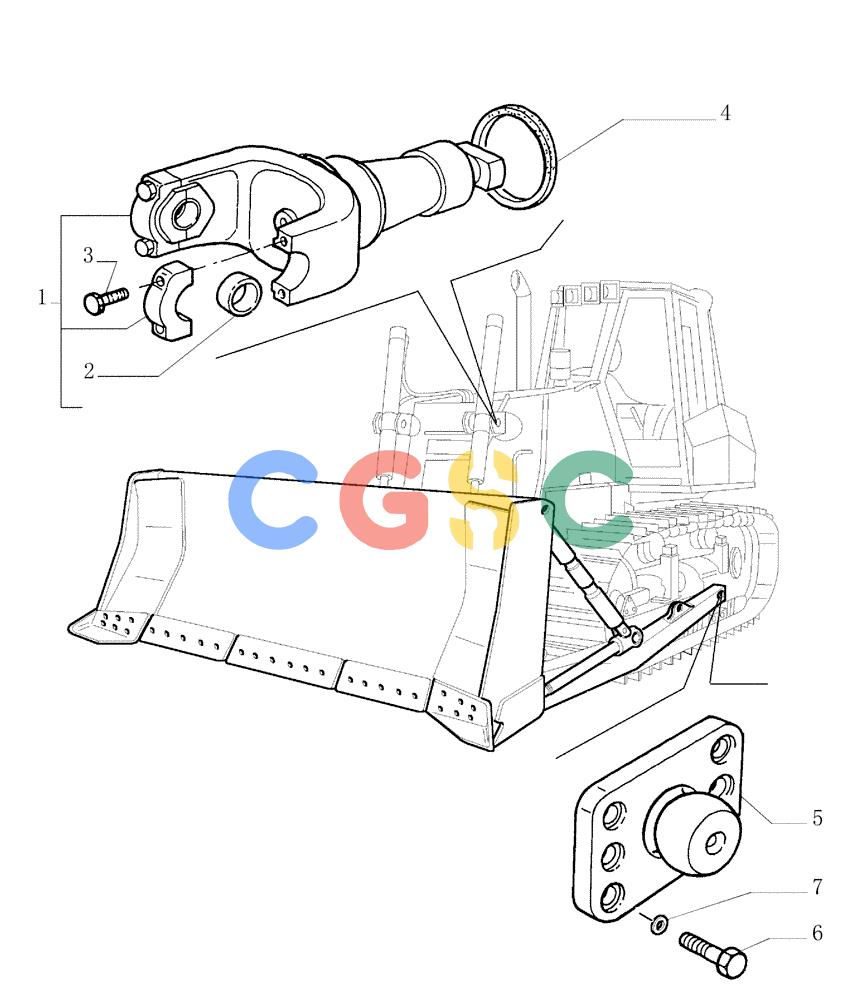

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.454[02]) - SUPPORT - FRONT IMPLEMENT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
589 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76072021 | [2] | YOKE | LEC- ASSY |
| 2. | 8271634 | [2] | BUSHING,50mm ID x 62mm OD x 44mm L | LEC |
| 3. | 11116434 | [4] | BOLT,M14 x 60, 10.9 | LEC Superseded by part number: 11116431 |
| 4. | 79092893 | [2] | SEAL | LEC |
| 5. | 76071391 | [2] | PIVOT PIN | LEC |
| 6. | 16256431 | [12] | SCREW,M20 x 1.5 x 55mm | LEC20X1,5X55 |
| 7. | 14497131 | [12] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
