纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (3.461[01]) - MAIN FRAME New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
673 次

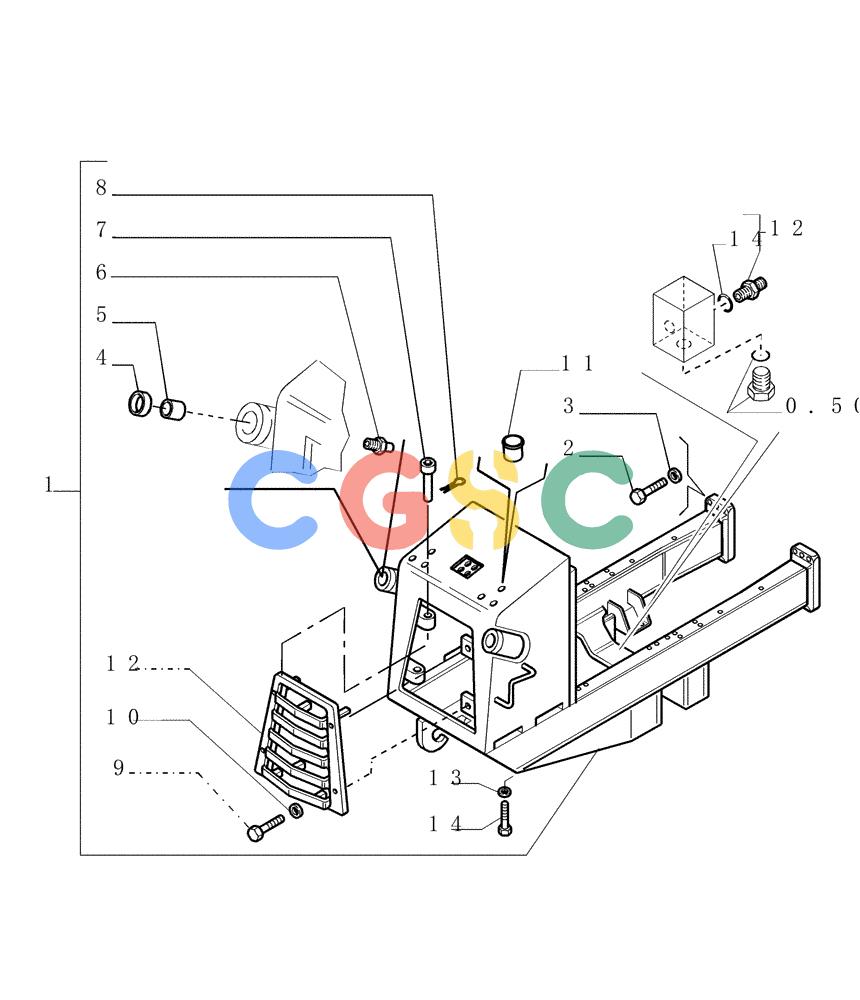

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046810 | [1] | FRAME | LEC- ASSY Superseded by part number: 76076774 |
| 2. | 11398131 | [12] | BOLT,Hex, M24 x 2 x 80mm, Cl 10.9 | LEC Superseded by part number: 11398134 |
| 3. | 76002741 | [12] | WASHER | LEC Superseded by part number: 79009899 |
| 4. | 79087774 | [2] | BUSHING | LEC |
| 5. | 8292010 | [2] | BUSHING,76.2mm ID x 85mm OD x 50mm L | LEC |
| 6. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 7. | 79035385 | [2] | PIN | LEC Superseded by part number: 87617620 |
| 8. | 10798101 | [2] | COTTER PIN,M6.3 x 25 | TTF6,3X25 Superseded by part number: 10796901 |
| 9. | 11112231 | [2] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 10. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 11. | 4974163 | [6] | PLUG | LEC |
| 12. | 76054957 | [1] | GUARD | LEC- FRONT |
| 13. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 14. | 11118531 | [4] | BOLT,Hex, M16 x 40, 10.9 | BHB Superseded by part number: 374835 |
