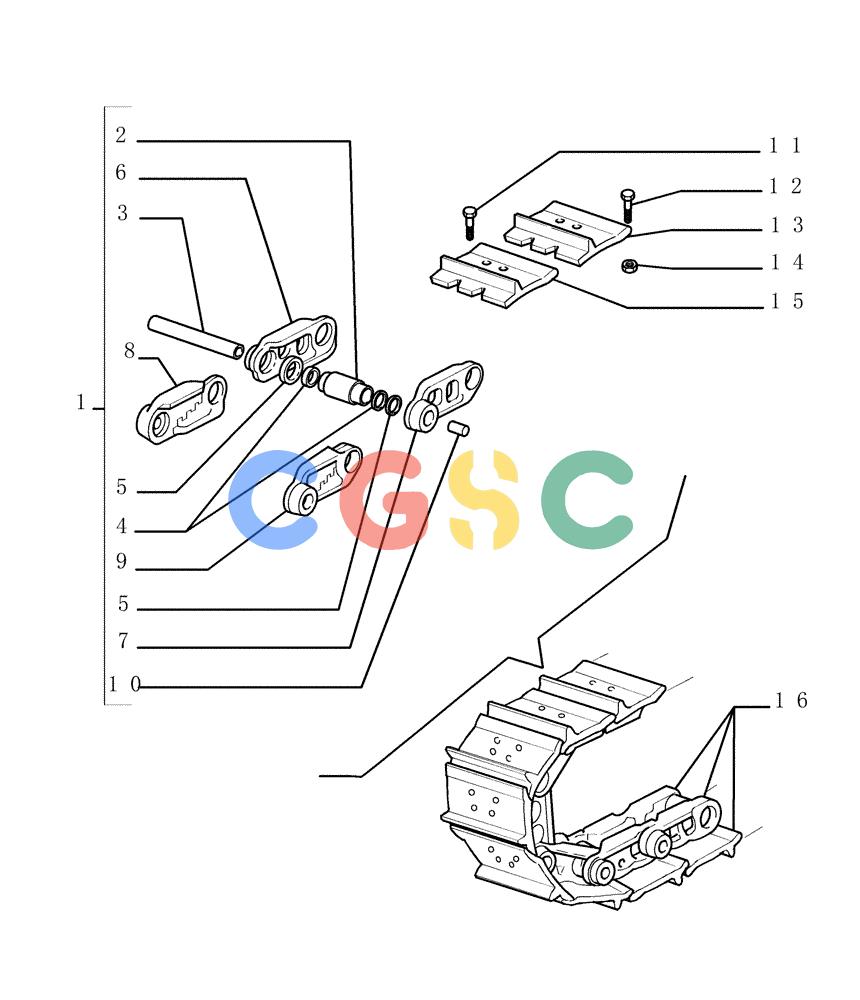

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.348[01]) - SALT CHAIN - SHOES (L=560 MM) - OPTIONAL CODE 76069707 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040846 | [2] | TRACK CHAIN | LEC- ASSY |
| 2. | 76040934 | [40] | BUSHING | LEC |
| 3. | 76040933 | [40] | PIN | LEC |
| 4. | 76040938 | [80] | SPACER | LEC |
| 5. | 76040937 | [80] | OIL SEAL | LEC |
| 6. | 76040928 | [39] | TRACK LINK | LEC- RIGHT |
| 7. | 76040929 | [39] | TRACK LINK | LEC- LEFT |
| 8. | 76040931 | [1] | CONNECTING LINK | LEC- RIGHT MASTER |
| 9. | 76040932 | [1] | CONNECTING LINK | LEC- LEFT IN ALTERNATIVE |
| 10. | 76040943 | [40] | PLUG | LEC Superseded by part number: 79082287 |
| 11. | 76040927 | [4] | BOLT,Hex, 3/4" - 16 | LEC |
| 12. | 76040849 | [156] | STEP BOLT,Hex, 3/4" - 16 x 2-3/8" | LEC |
| 13. | 76069143 | [39] | TRACK SHOE | LEC-610mm- (1 GROUSER) |
| 14. | 76040850 | [156] | SQUARE NUT | LEC Superseded by part number: 87582723 |
| 15. | 76040848 | [1] | TRACK SHOE | LEC- (1 GROUSER) MASTER |
| 16. | 76040524 | [2] | CRAWLER TRACK ASSY | LEC-560mm- ASSY WITH SHOES Superseded by part number: 76040846, 76040927, 76040850, 76040849, 76040848, 76040847 |
