纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.439[01]) - ADDITIONAL HYDRAULIC FUNCTION - VERSION (01) - OPTIONAL CODE 76069530 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1001 次

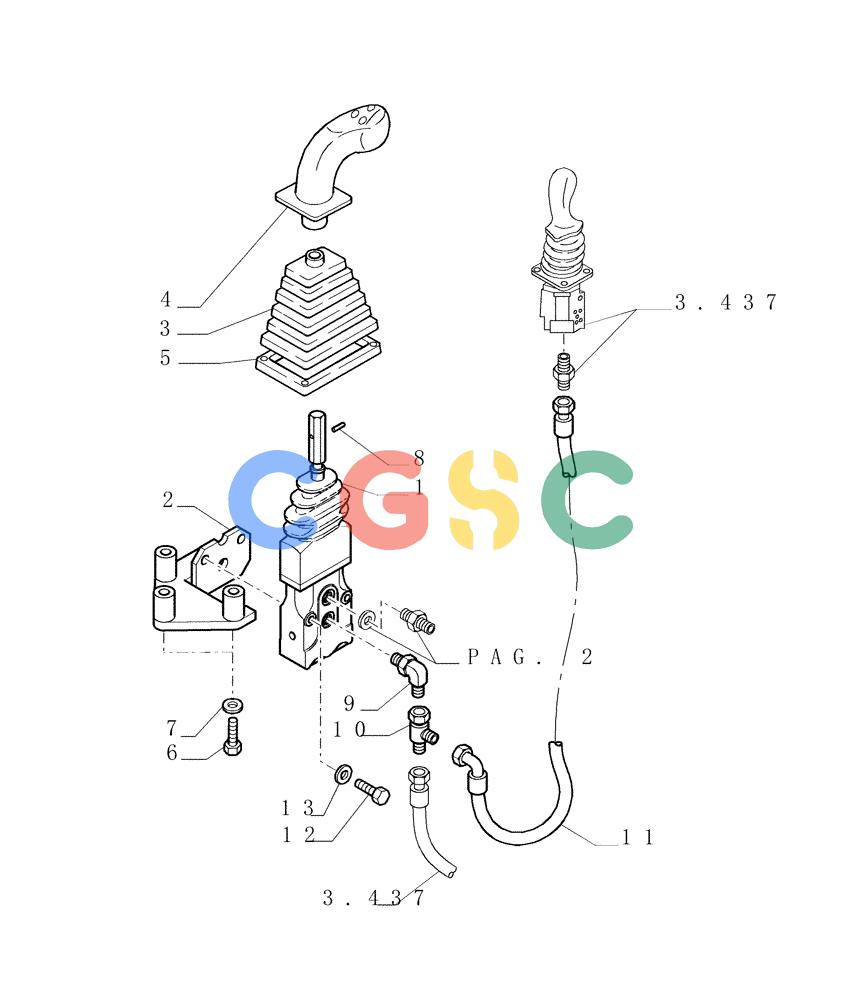

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76068326 | [1] | MANIPULATOR | LEC |
| 2. | 76054554 | [1] | SUPPORT | LEC |
| 3. | 76053968 | [1] | BOOT | LEC |
| 4. | 76054507 | [1] | HANDLE GRIP | LEC |
| 5. | 76053972 | [1] | RETAINING PLATE | LEC |
| 6. | 11107231 | [3] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 7. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 14601271 | [1] | ROLL PIN | LEC5X28 Superseded by part number: 14601270 |
| 9. | 79066302 | [1] | ELBOW | LEC90°-9/16" |
| 10. | 79054269 | [1] | TEE | LECaT-9/16" |
| 11. | 76032657 | [1] | HYDRAULIC HOSE | LEC- DELIVERY |
| 12. | 14306831 | [2] | HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 10.9, Full Thd | LEC |
| 13. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
