纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.467[01]) - PUSHBEAMS AND STRUTS (HSU) - VERSION (01-02) - OPTIONAL CODE 76040979 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
240 次

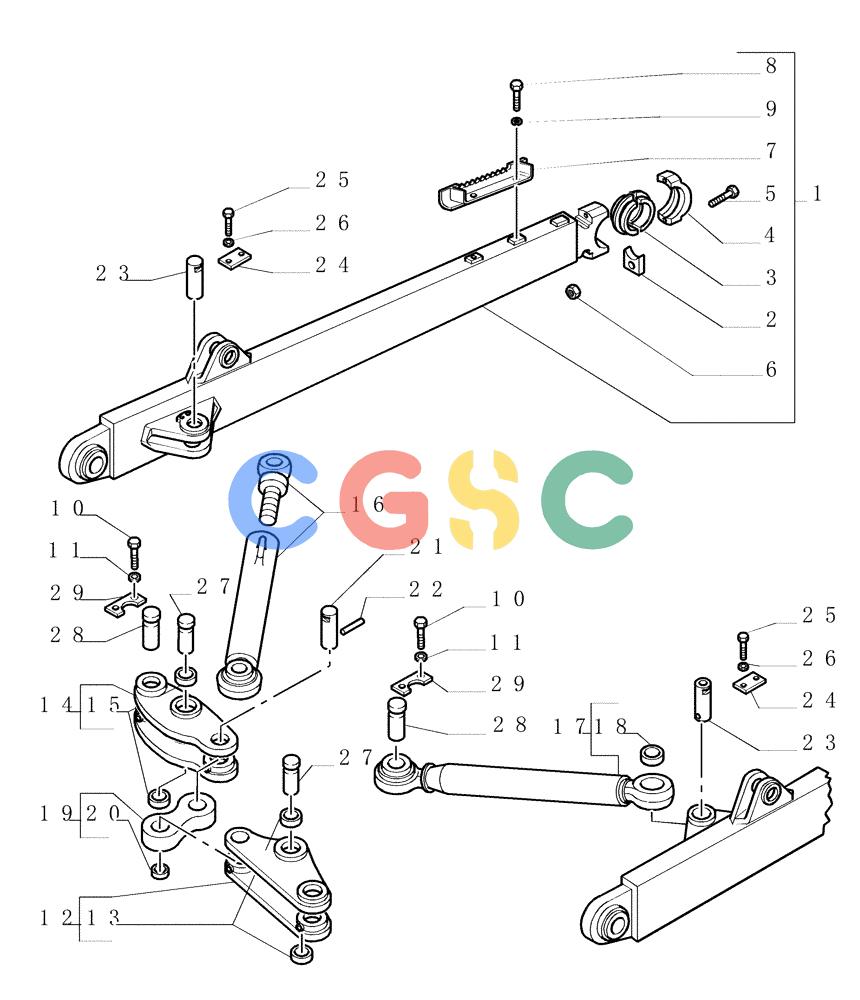

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040981 | [1] | LIFT ARM | LEC- RIGHT ASSY |
| 1. | 76040982 | [1] | LIFT ARM | LEC- LEFT ASSY |
| 2. | 8280915 | [2] | LOCKING PLATE | LEC |
| 3. | 8280908 | [1] | HALF-BUSHING | LEC |
| 4. | 8296138 | [1] | SUPPORT | LEC Superseded by part number: 79074406 |
| 5. | 16047131 | [2] | SCREW,M24 x 180mm, Cl 10.9 | LEC24X2X180 Superseded by part number: 16047137 |
| 6. | 12163721 | [2] | NUT,M24, Cl 10 | LEC Superseded by part number: 9848973 |
| 7. | 79089245 | [1] | FOOTREST | LEC Superseded by part number: 76089488 |
| 8. | 11112431 | [2] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 9. | 12648531 | [2] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 10. | 11127531 | [8] | BOLT,Hex, M16 x 35, 10.9 | LEC Superseded by part number: 86529976 |
| 11. | 14496931 | [8] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 12. | 79114386 | [1] | LEVER | LEC- LEFT ASSY |
| 13. | 8270283 | [2] | BUSHING,60.2mm ID x 72mm OD x 60mm L | LEC |
| 14. | 79114384 | [1] | LEVER | LEC- RIGHT ASSY |
| 16. | 76040985 | [1] | TIE-ROD | LEC- ASSY SEE PAG.3 Superseded by part number: 76090989 |
| 17. | 76040986 | [1] | TIE-ROD | LEC- ASSY Superseded by part number: 76090990 |
| 18. | 8270259 | [1] | BUSHING,60.2mm ID x 72mm OD x 78mm L | LEC |
| 19. | 8280195 | [1] | LINK | LEC- ASSY Superseded by part number: 76090991 |
| 21. | 79114656 | [2] | PIN | LEC |
| 22. | 13917770 | [2] | ROLL PIN,M10 x 90, Coiled | LEC |
| 23. | 79114653 | [2] | PIN,60mm OD x 176mm L | LEC |
| 24. | 79114658 | [2] | PLATE | LEC |
| 25. | 11115631 | [4] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LEC |
| 26. | 12644931 | [4] | WASHER,14.4mm ID x 32mm OD x 4mm Thk | LEC |
| 27. | 79114654 | [2] | PIN,60mm OD x 260mm L | LEC |
| 28. | 79114652 | [2] | PIN,59.8mm OD x 223mm L | LEC |
| 29. | 79114657 | [4] | LOCKING PLATE | LEC |
