纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.467[02]) - PUSHBEAMS AND STRUTS (HSU) - VERSION (01-02) - OPTIONAL CODE 76040979 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
315 次

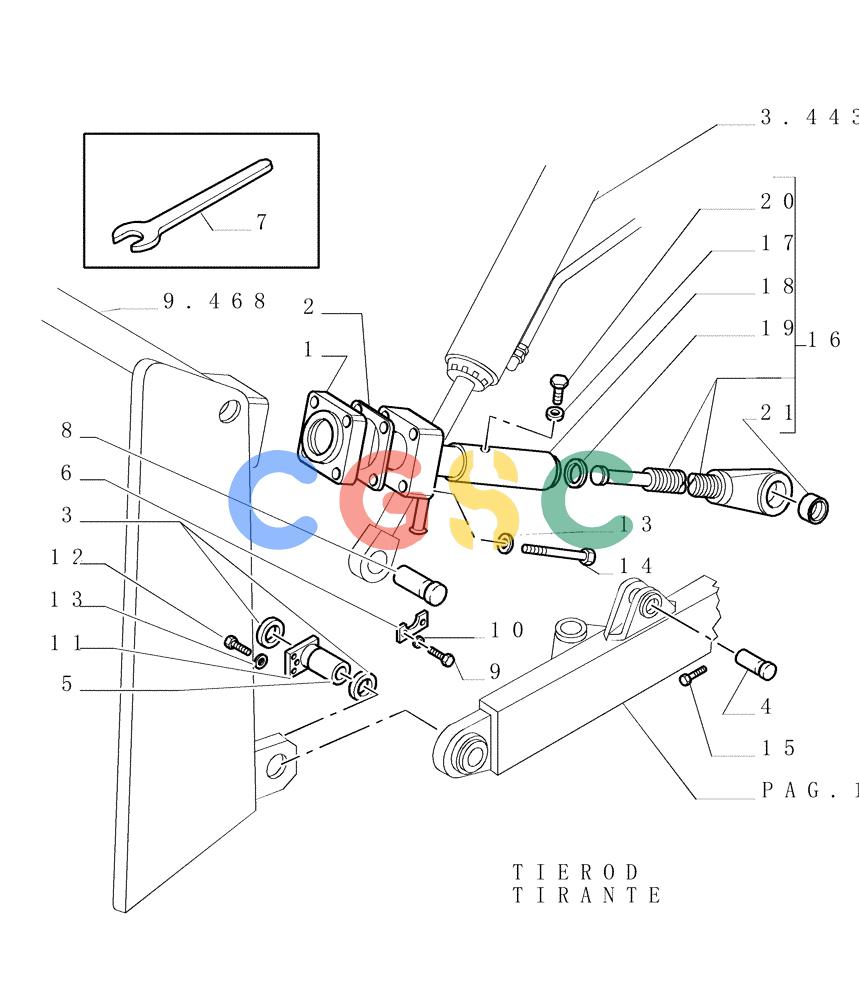

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8273635 | [2] | BALL SOCKET | LEC Superseded by part number: 76090985 |
| 2. | 8273637 | [1] | SHIM,116mm ID x 145mm OD x 0.3mm Thk | LEC |
| 3. | 8288180 | [8] | SHIM,2mm Thk | LEC Superseded by part number: 8281898 |
| 3. | 8288181 | [4] | SHIM,3mm Thk | LEC Superseded by part number: 8281898 |
| 4. | 79114655 | [2] | PIN | LEC |
| 5. | 79114652 | [2] | PIN,59.8mm OD x 223mm L | LEC |
| 6. | 79114659 | [2] | PLATE | LEC |
| 7. | 14585778 | [1] | ADJUSTING WRENCH | LEC36 Superseded by part number: 14585771 |
| 8. | 79114651 | [2] | PIN,39mm OD x 170mm L | LEC |
| 9. | 11115631 | [4] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LEC |
| 10. | 12644931 | [4] | WASHER,14.4mm ID x 32mm OD x 4mm Thk | LEC |
| 11. | 79114657 | [2] | LOCKING PLATE | LEC |
| 12. | 11127531 | [4] | BOLT,Hex, M16 x 35, 10.9 | LEC Superseded by part number: 86529976 |
| 13. | 14496931 | [12] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 14. | 11120131 | [8] | BOLT,Hex, M16 x 110, 10.9 | LEC Superseded by part number: 11120137 |
| 15. | 13917770 | [2] | ROLL PIN,M10 x 90, Coiled | LEC |
| 16. | 8294764 | [1] | TIE-ROD | LEC Superseded by part number: REFERENCE |
| 17. | 10517470 | [1] | LOCK WASHER | LEC20 Superseded by part number: 9847025 |
| 18. | 8294765 | [1] | TIE-ROD | LEC Superseded by part number: 76090992 |
| 19. | 8291846 | [1] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LEC |
| 20. | 8293816 | [1] | SCREW,M20 x 2.5 x 2.5mm | LEC |
| 21. | 8283381 | [1] | BUSHING,70.21mm ID x 82mm OD x 45mm L | LEC |
