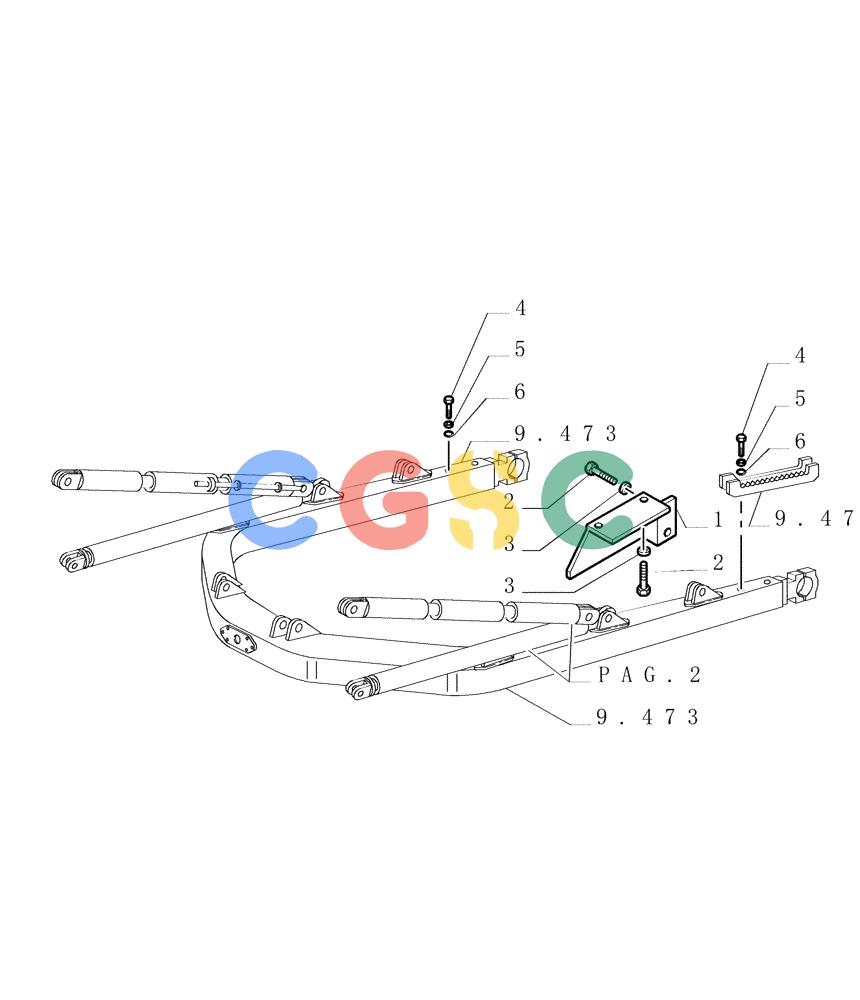

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.476[01]) - MECHANIC TILT - STRUTS - VERSION (01-02) - OPTIONAL CODE 76035823 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
266 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76027820 | [1] | GUARD | LEC Superseded by part number: 76092036 |
| 2. | 11390531 | [4] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 3. | 79005240 | [4] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC16X35,5X8 |
| 4. | 11112431 | [4] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 5. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 6. | 10615879 | [4] | LOCK WASHER,Serr, M12 | LEC Superseded by part number: 10615870 |
