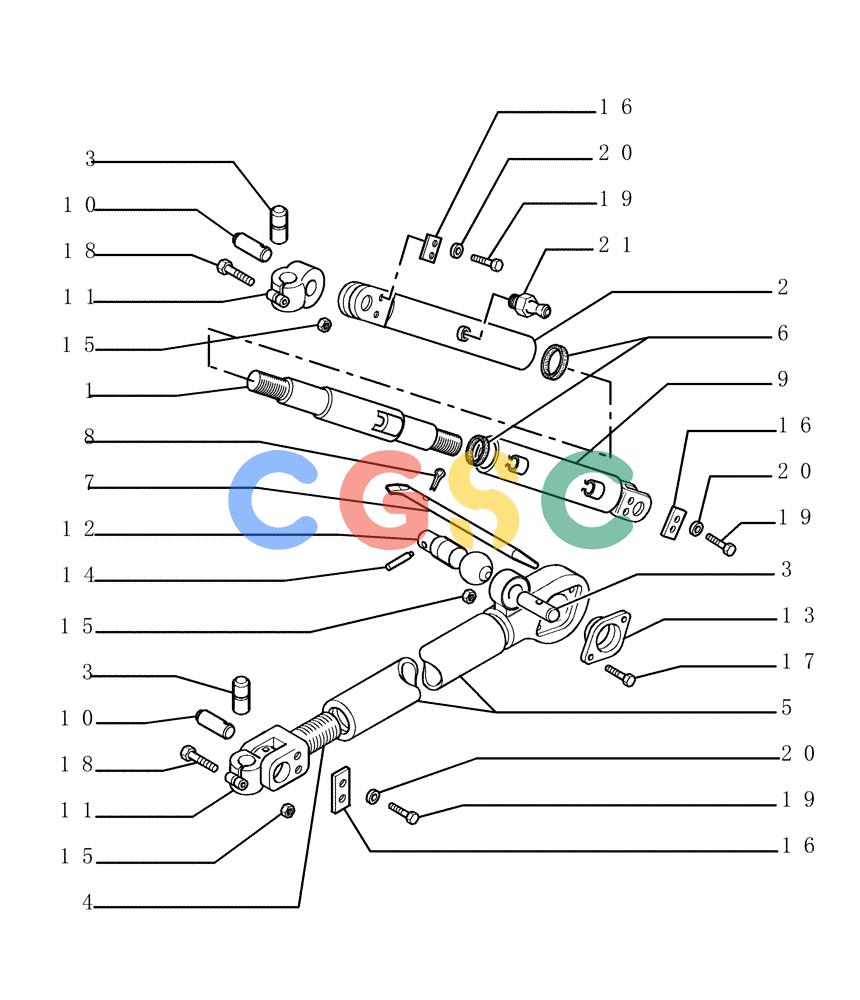

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.476[02]) - MECHANIC TILT - STRUTS - VERSION (01-02) - OPTIONAL CODE 76035823 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
499 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76032990 | [2] | ADJUSTMENT ROD | LEC Superseded by part number: 76092039 |
| 2. | 76032999 | [2] | YOKE | LEC- FRONT Superseded by part number: 76092037 |
| 3. | 76033001 | [6] | PIN | LEC |
| 4. | 76032992 | [2] | ADJUSTMENT ROD | LEC Superseded by part number: 76092041 |
| 5. | 76032994 | [2] | STRUT | LEC Superseded by part number: 76092040 |
| 6. | 8291846 | [4] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LEC |
| 7. | 8296559 | [2] | PIN,24mm OD | LEC |
| 8. | 5112606 | [2] | COTTER PIN | TTF |
| 9. | 76035787 | [2] | SLEEVE | LEC- REAR Superseded by part number: 76092038 |
| 10. | 76033002 | [4] | PIN,40mm OD x 134mm L | LEC |
| 11. | 76033000 | [4] | SUPPORT | LEC Superseded by part number: 76092042 |
| 12. | 76033003 | [2] | PIN | LEC |
| 13. | 8297924 | [4] | FLANGE | LEC Superseded by part number: 76092043 |
| 14. | 76035973 | [2] | PIN | LEC |
| 15. | 12163221 | [8] | NUT,M14, Cl 10 | LEC Superseded by part number: 87564740 |
| 16. | 8270126 | [6] | PLATE | LEC Superseded by part number: 76092114 |
| 17. | 11117031 | [4] | BOLT,Hex, M14 x 90, 10.9 | LEC |
| 18. | 11116831 | [4] | BOLT,Hex, M14 x 80, 10.9 | LEC |
| 19. | 11115531 | [12] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 20. | 14496831 | [12] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 21. | 13407211 | [4] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
