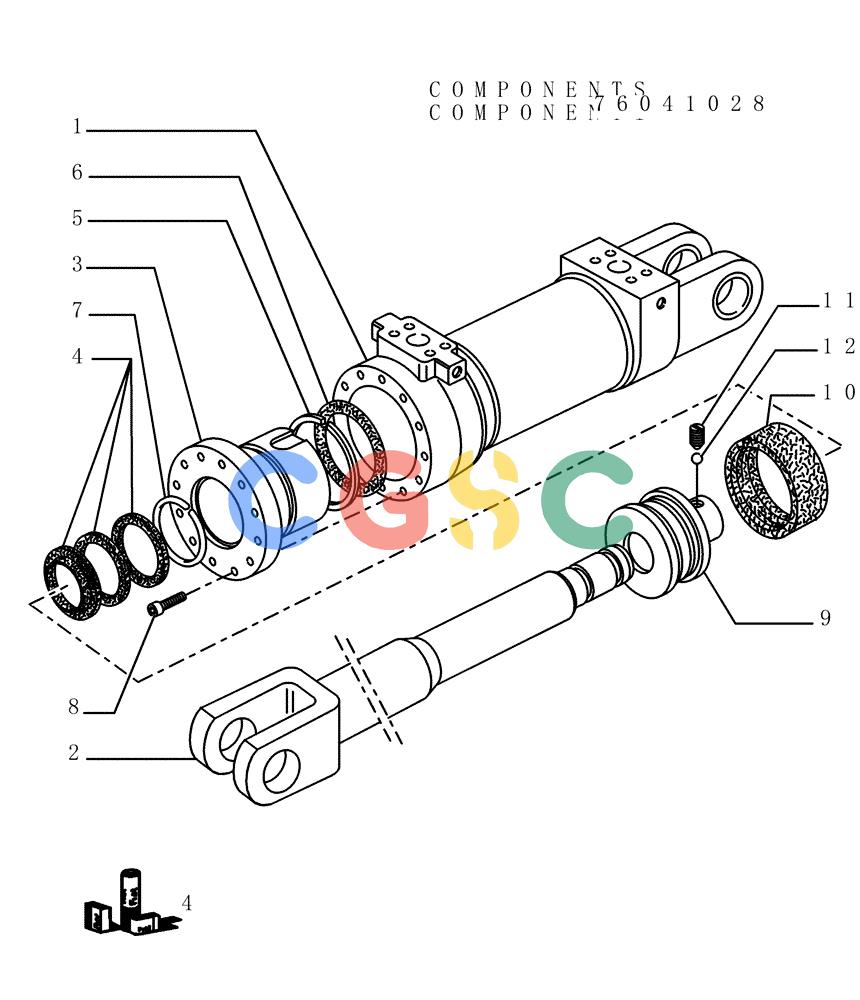

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.481[04]) - HYDRAULIC TILT - ANGLEDOZER (HA) - VERSION (01-02) - OPTIONAL CODE 76054830 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
896 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041964 | [1] | BARREL | LEC |
| 2. | 76041965 | [1] | ROD | LEC |
| 3. | 76041966 | [1] | GLAND | LEC |
| 4. | 79071464 | [1] | SEAL | LECKIT-FRONT EQUIP.CYLINDER SEALS |
| 5. | 76041933 | [1] | RING | LEC Superseded by part number: 76053660, 76053660, 76053661 |
| 6. | 14466080 | [1] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro | LEC Superseded by part number: 87421147 |
| 7. | 8298055 | [1] | RING,103.8mm ID x 110mm OD x 6mm Thk | LEC |
| 8. | 14420471 | [13] | HEX SOC SCREW,M10 x 1.5 x 40mm, Cl 12.9 | LEC Superseded by part number: 14420474 |
| 9. | 76041967 | [1] | PISTON | LEC |
| 10. | 8291505 | [1] | SEAL,85mm ID x 103.1mm OD x 22.4mm Thk | LEC |
| 11. | 76041935 | [1] | SCREW | LEC |
| 12. | 76041936 | [1] | BALL | LEC |
