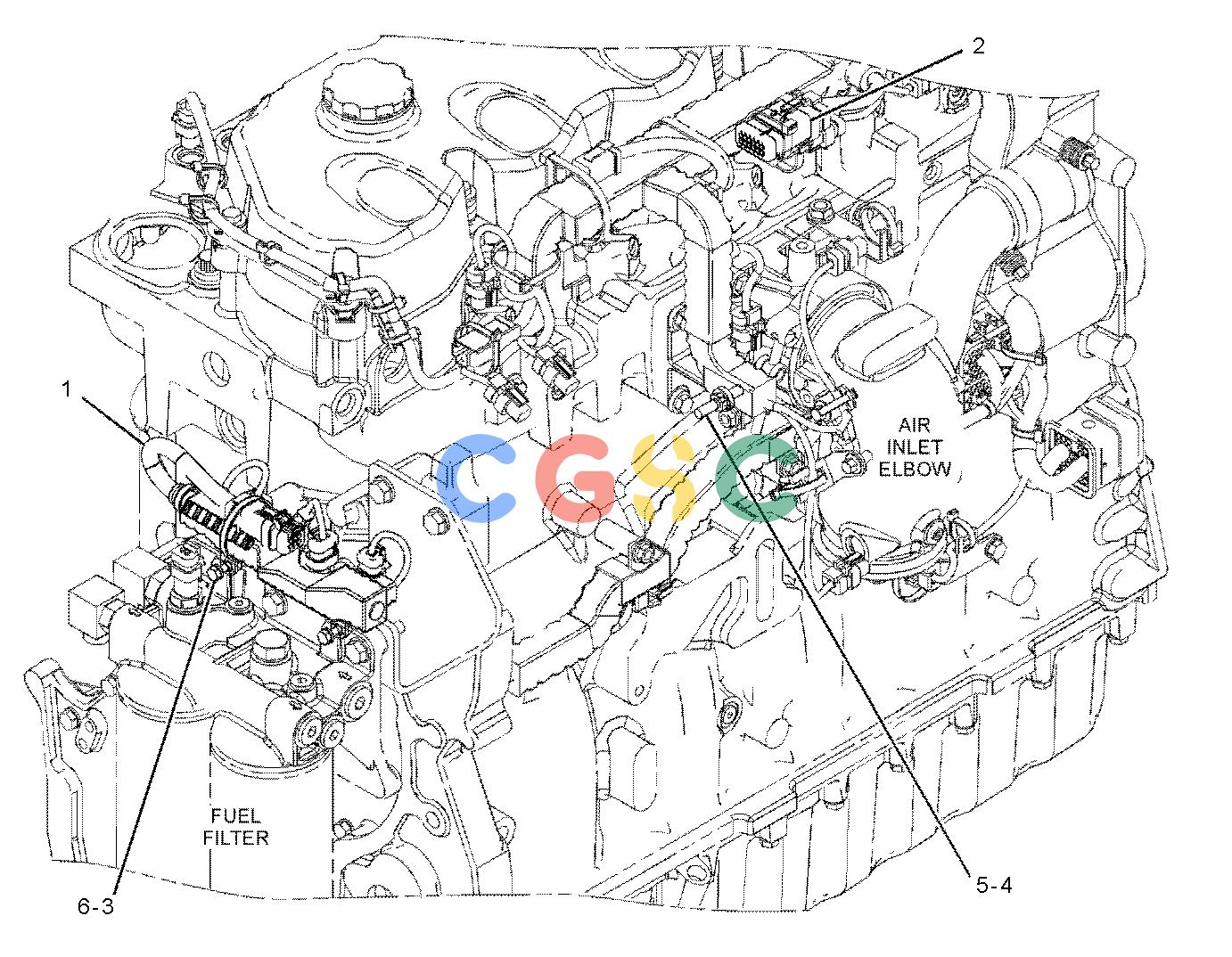

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 367-2378Y | [1] | WIRING GP-SENSOR | |
| 2. | 354-4940 | [1] | RECEPTACLE AS-CONNECTOR | |
| 8T-8737 | [12] | PLUG-SEAL | ||
| 230-4010 | [1] | RECEPTACLE AS-CONNECTOR(12-PIN) | ||
| 3. | 6V-8490M | [2] | BOLT(M6X1X25-MM) | |
| 4. | 7G-1239 | [1] | SPACER(10.5X19X4.5-MM THK) | |
| 5. | 9X-2097M | [1] | STUD(M8X1.25-THD) | |
| 6. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
